Hood Adjustment

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

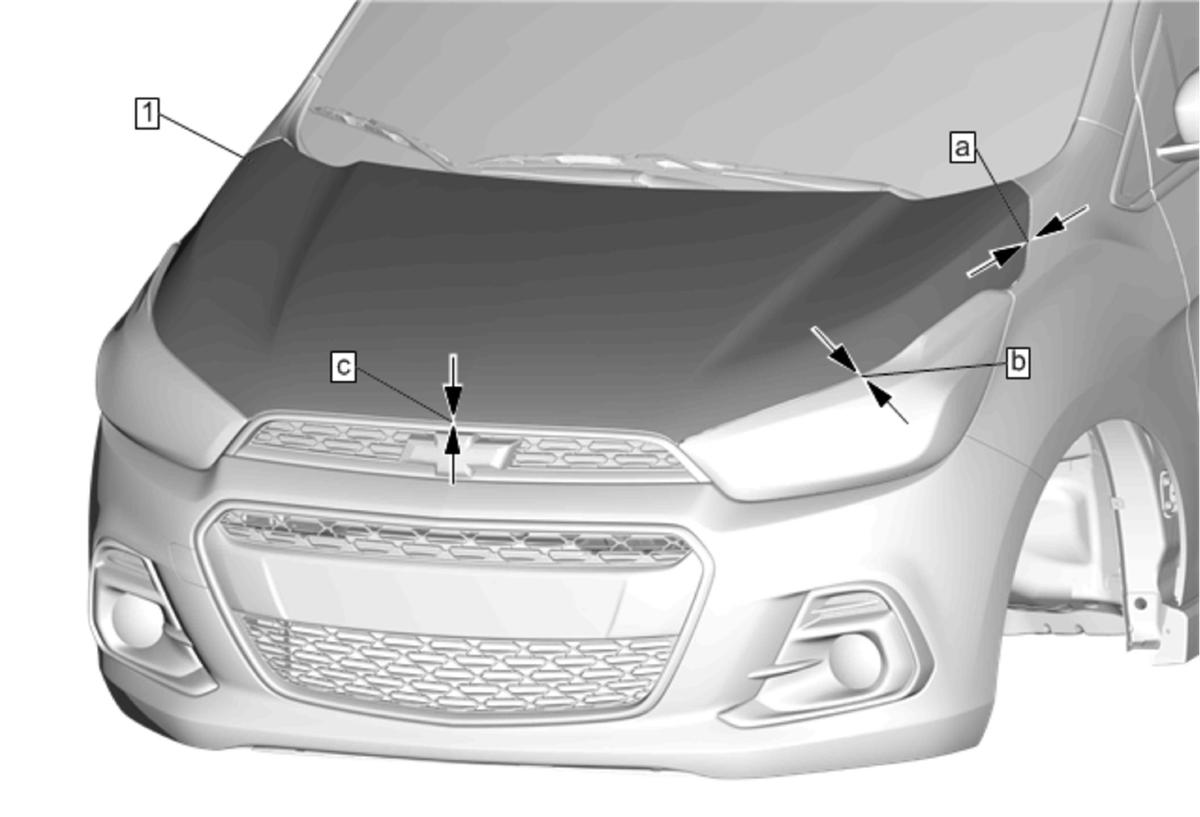

Fig 1: Hood Adjustment

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Hood CAUTION: Refer to Fastener Caution . Procedure Loosen the 4 hood hinge bolt. Adjust the hood in order to obtain an even gap on both sides between the hood and the fenders, the headlamps and the front bumper fascia and so that the hood is flush with both fenders on the front edge, the front bumper fascia and the headlamps. Adjustment Hood to front fender (a) 3.0 mm ± 0.75 mm (0.12 in ± 0.03 in) Hood to headlamp (b) 3.0 mm ± 1.0 mm (0.12 in ± 0.04 in) Hood to front bumper fascia (c) 5.5 mm ± 1.0 mm (0.22 in ± 0.04 in) Tighten 18 N.m (13 lb ft)

Callout

Component Name

Hood

CAUTION: Refer to Fastener Caution .

Procedure

Loosen the 4 hood hinge bolt.
Adjust the hood in order to obtain an even gap on both sides between the hood and the fenders, the headlamps and the front bumper fascia and so that the hood is flush with both fenders on the front edge, the front bumper fascia and the headlamps.

Adjustment

Hood to front fender (a) 3.0 mm ± 0.75 mm (0.12 in ± 0.03 in)
Hood to headlamp (b) 3.0 mm ± 1.0 mm (0.12 in ± 0.04 in)
Hood to front bumper fascia (c) 5.5 mm ± 1.0 mm (0.22 in ± 0.04 in)

Tighten
18 N.m (13 lb ft)
