Hood Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

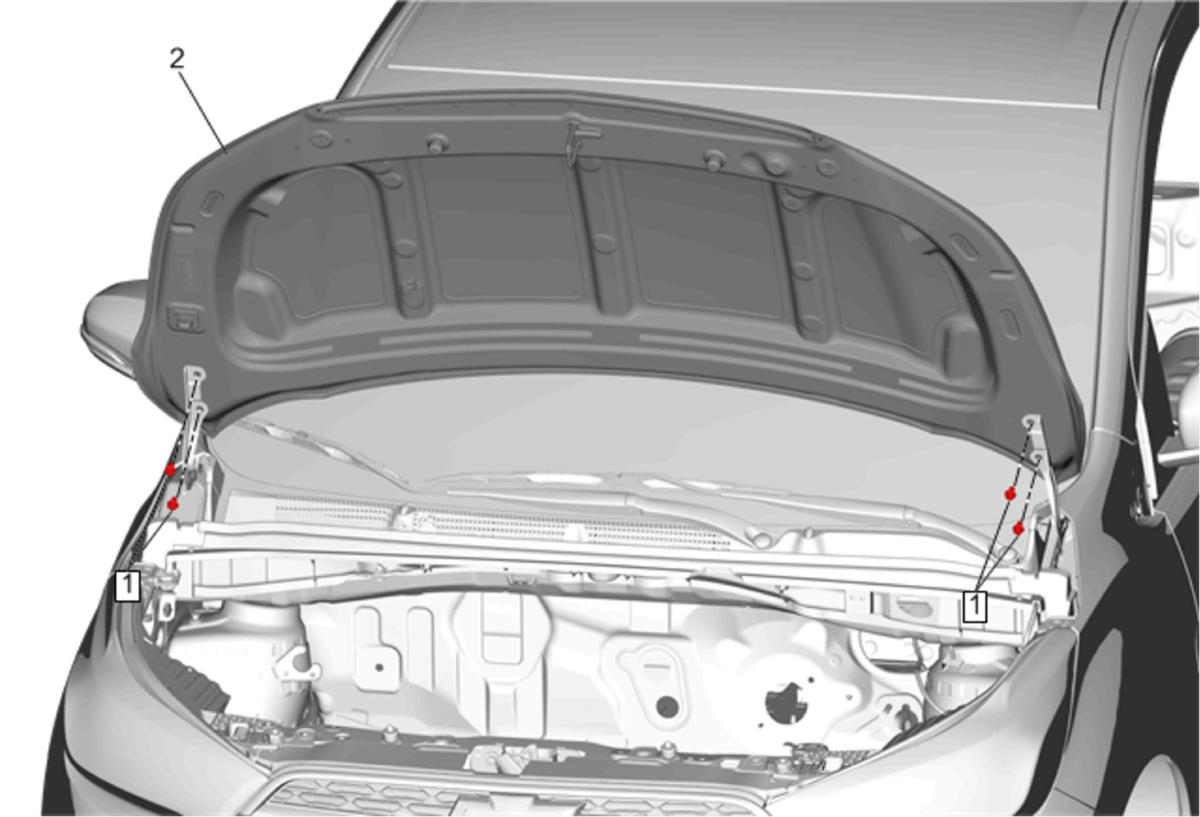

Fig 1: Hood

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Hood Hinge Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 18 N.m (13 lb ft)
2	Hood WARNING: When a hood hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury. Procedure Transfer components as necessary. Adjust hood as needed. Refer to Hood Adjustment .

Callout

Component Name

Hood Hinge Bolt (Qty: 4)

CAUTION: Refer to Fastener Caution .

Tighten
18 N.m (13 lb ft)

Hood

WARNING: When a hood hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.

Procedure

Transfer components as necessary.
Adjust hood as needed. Refer to Hood Adjustment .
