Rear Compartment Side Trim Replacement - Right Side (With HP4)

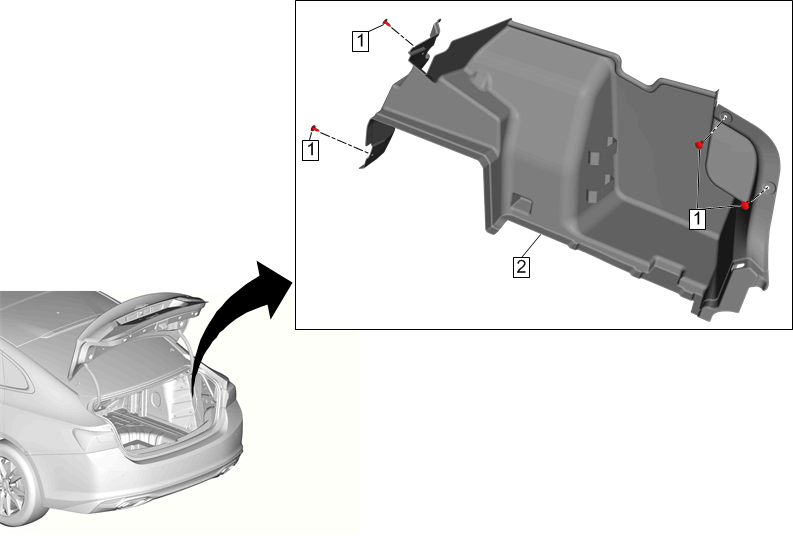

GM4331691
Callout Component Name

Preliminary Procedures

  1. Remove battery cover. Rear Compartment Floor Panel Trim Replacement (Carpet, Without HP4) Rear Compartment Floor Panel Trim Replacement (5 Bar Cover, Without HP4) Rear Compartment Floor Panel Trim Replacement (Carpet, With HP4) Rear Compartment Floor Panel Trim Replacement (Battery Cover, With HP4)
  2. Rear End Trim Cover Panel Replacement
  3. Fold down rear seat to access retainers.
1 Rear Compartment Side Trim Retainer[4x]
Procedure
Use a flat bladed plastic trim tool.
2 Rear Compartment Side Trim
