Rear Compartment Floor Panel Trim Replacement (Battery Cover, With HP4)

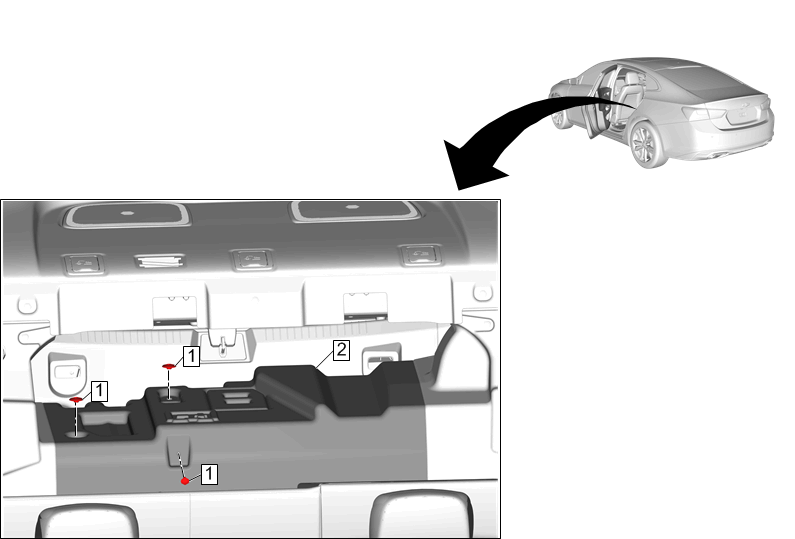

GM4332125
Callout Component Name

Preliminary Procedures

  1. Remove Carpet. Rear Compartment Floor Panel Trim Replacement (Carpet, Without HP4) Rear Compartment Floor Panel Trim Replacement (5 Bar Cover, Without HP4) Rear Compartment Floor Panel Trim Replacement (Carpet, With HP4) Rear Compartment Floor Panel Trim Replacement (Battery Cover, With HP4)
  2. Fold down rear seat to access retainers.
1 Drive Motor Battery Cover Retainer[3x]
Procedure
Use an appropriate tool to remove the retainers.
2 Rear Compartment Floor Panel Trim
