Rear Compartment Floor Panel Trim Replacement (5 Bar Cover, Without HP4)
Rear Compartment Floor Panel Trim Replacement (5 Bar Cover, Without HP4)

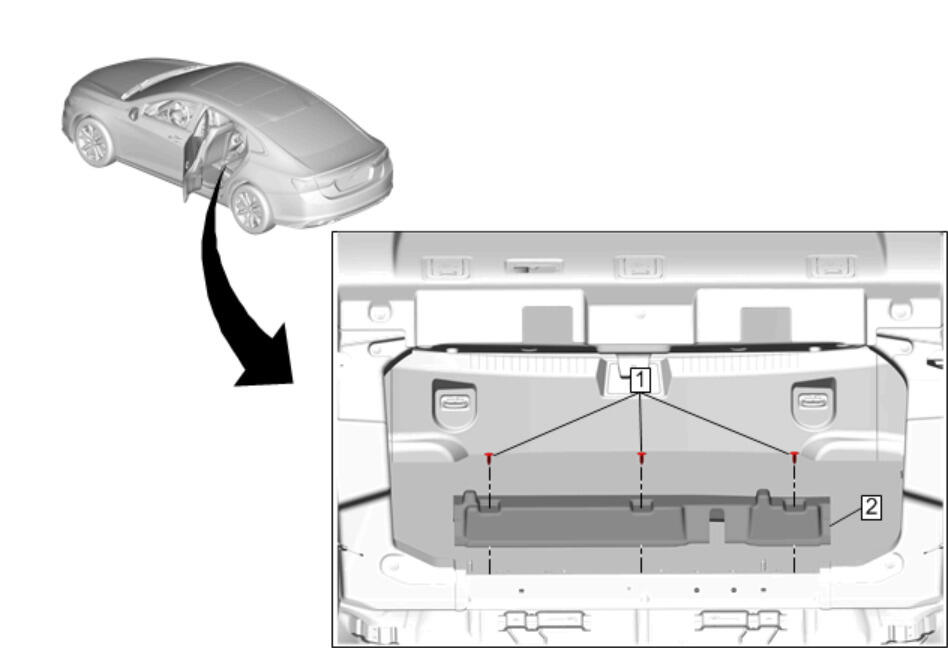

Callout
Component Name
1
Rear Compartment Floor Stowage Compartment Retainer [3x]
Procedure
Fold down rear seat to access retainers.
Use a flat-bladed plastic tool to remove the push-in retainers.
2
Rear Compartment Floor Panel Trim
