Rear Compartment Side Trim Replacement - Left Side (Without HP4)

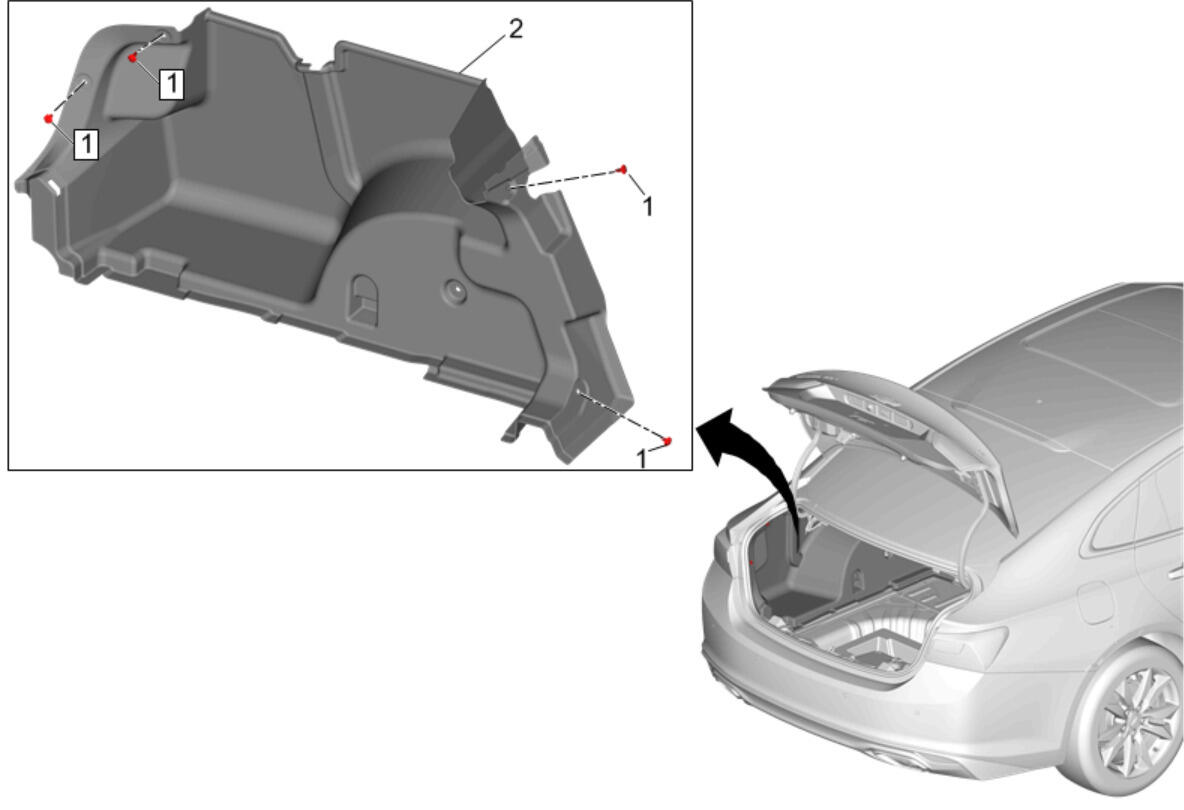

Callout	Component Name
Preliminary Procedures Rear Compartment Floor Panel Trim Replacement (Carpet, Without HP4) Rear Compartment Floor Panel Trim Replacement (5 Bar Cover, Without HP4) Rear Compartment Floor Panel Trim Replacement (Carpet, With HP4) Rear Compartment Floor Panel Trim Replacement (Battery Cover, With HP4) Rear End Trim Cover Panel Replacement Fold down rear seat to access retainers.
1	Rear Compartment Side Trim Retainer[4x] Procedure Use a flat bladed plastic trim tool.
2	Rear Compartment Side Trim

Callout

Component Name

Preliminary Procedures

Rear Compartment Side Trim Retainer[4x]
Procedure
Use a flat bladed plastic trim tool.

Rear Compartment Side Trim
