Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Manual Shift Detent Lever Shaft (3) - Install

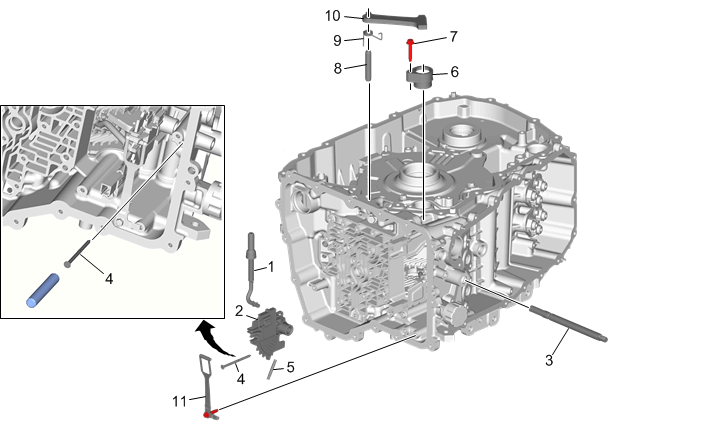

    Fig 1: Manual Shift Detent Lever With Shaft Position Switch Assembly And Park Pawl Actuator
    GM4037349Courtesy of GENERAL MOTORS COMPANY
  2. Using DT-51436  Manual Shaft Pin Installer, install a NEW Manual Shift Shaft Pin (4).
    CAUTION: The manual shift shaft pin must be installed before the manual shift detent lever pin. Use the special tool, DT-51436, to install the manual shift shaft pin to the proper depth. Failure to follow these steps may result in damage to the transmission.
  3. Manual Shift Detent Lever Pin (5) - Install
  4. Manual Shift Detent Lever Spring (11) - Install and tighten to 12 N.m (106 lb in)
  5. Automatic Transmission Wiring Harness Bracket - Install Manual Shift Detent Lever with Shaft Position Switch Assembly and Park Pawl Actuator Installation
  6. Control Valve Body Cover Replacement  - Install
  7. Automatic Transmission Range Selector Lever Replacement  - Install
  8. Range Selector Lever Cable @ Automatic Transmission Range Selector Lever - Install Range Selector Lever Cable Replacement
  9. Range Selector Lever Cable Adjustment  - Adjust
