Automatic Transmission Range Selector Lever Replacement

WARNING: This page is about a different variant/trim than selected.

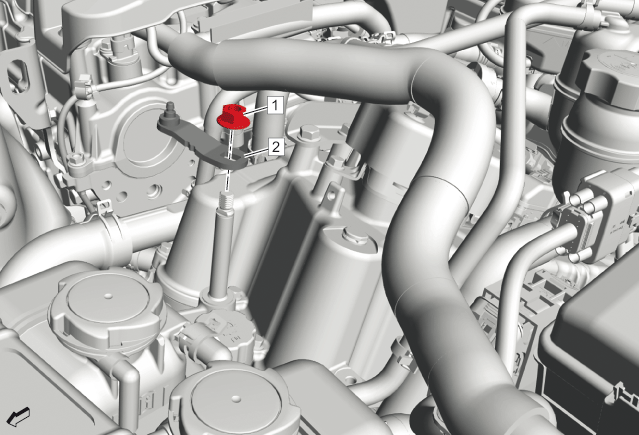

Fig 1: Automatic Transmission Range Selector Lever
GM4091550Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Set the parking brake.
  2. Range Selector Lever Cable @ Automatic Transmission Range Selector Lever - Remove Range Selector Lever Cable Replacement
    WARNING: After installing the transmission range selector shift cable, pull up and push down on ALL connections to verify that the connections are fully seated and properly engaged. Failure to perform this task can result in the vehicle not being able to shift into PARK causing potential vehicle damage and bodily injury.
1 Transmission Range Selector Lever Nut
WARNING: Hold the transmission range selector lever while removing or installing the lever retaining nut. Failure to hold the lever can cause damage to the transmission internal park system components which could allow the vehicle to roll when placed in the park position.
CAUTION: Fastener Caution

Tighten
30 N.m (22 lb ft)
2 Automatic Transmission Range Selector Lever
Procedure
After the installation is complete perform a range selector lever cable adjustment. Refer to Range Selector Lever Cable Adjustment
