Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Set the parking brake.
    WARNING:

    Always perform the High Voltage Disabling procedure prior to servicing any High Voltage component or connection. Personal Protection Equipment (PPE) and proper procedures must be followed.

    The High Voltage Disabling procedure will perform the following tasks:

    • Identify how to disable high voltage.
    • Identify how to test for the presence of high voltage.
    • Identify condition under which high voltage is always present and personal protection equipment (PPE) and proper procedures must be followed.

    Failure to follow the procedures exactly as written may result in serious injury or death.

  2. Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection (without KL9)Battery Negative Cable Disconnection and Connection (with KL9)
  3. Disable the high voltage system and disconnect the A4 Hybrid/EV Battery Pack high voltage harness connector at the T6 Power Inverter Module. Refer to High Voltage Disabling .
  4. Drive Motor Generator Power Inverter Module Cooling System Draining and Filling - Drain
  5. Remove the range selector lever cable bracket. Refer to Range Selector Lever Cable Bracket Replacement
  6. Remove the primary shield (3) from the transmission.
    Fig 1: Transmission Primary Shield
    GM4258126Courtesy of GENERAL MOTORS COMPANY

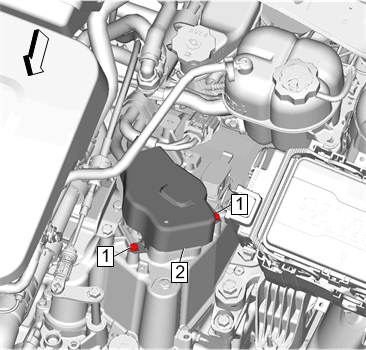

  7. Remove the secondary shield (2) from the transmission.
    Fig 2: Transmission Secondary Shield
    GM4283170Courtesy of GENERAL MOTORS COMPANY

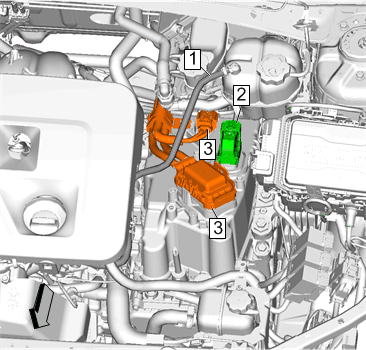

  8. Disconnect and reposition the radiator surge tank overflow hose (1).
    Fig 3: Transmission Electrical Connector
    GM4283325Courtesy of GENERAL MOTORS COMPANY
  9. Disconnect and reposition the transmission electrical connector (2).
  10. Disconnect and reposition the transmission high voltage electrical connectors (3).
  11. Remove the transmission mount transmission side bracket. Refer to Transmission Mount Transmission-Side Bracket Replacement
  12. Drive Motor Battery Positive and Negative Cable Connector Bolt (1) - Remove [4x]
    Fig 4: Drive Motor Battery Positive And Negative Cable Connector And Bolts
    GM4230917Courtesy of GENERAL MOTORS COMPANY
  13. Drive Motor Battery Positive and Negative Cable Connector (2) - Remove

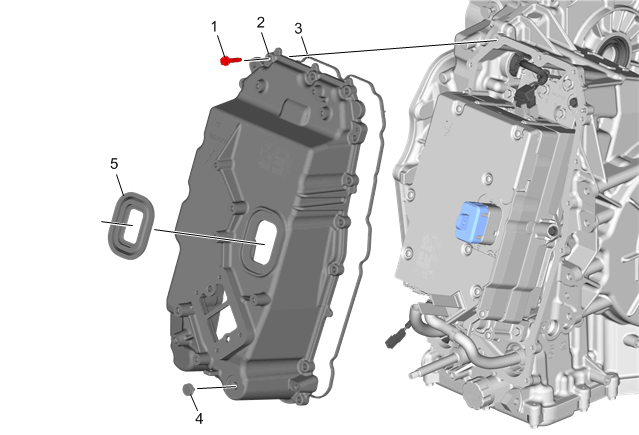

  14. Drive Motor Power Inverter Module Cover Removal  (2) - Remove
    Fig 5: Drive Motor Power Inverter Module Cover And Components
    GM4037211Courtesy of GENERAL MOTORS COMPANY
