Transmission Mount Transmission-Side Bracket Replacement

WARNING: This page is about a different variant/trim than selected.

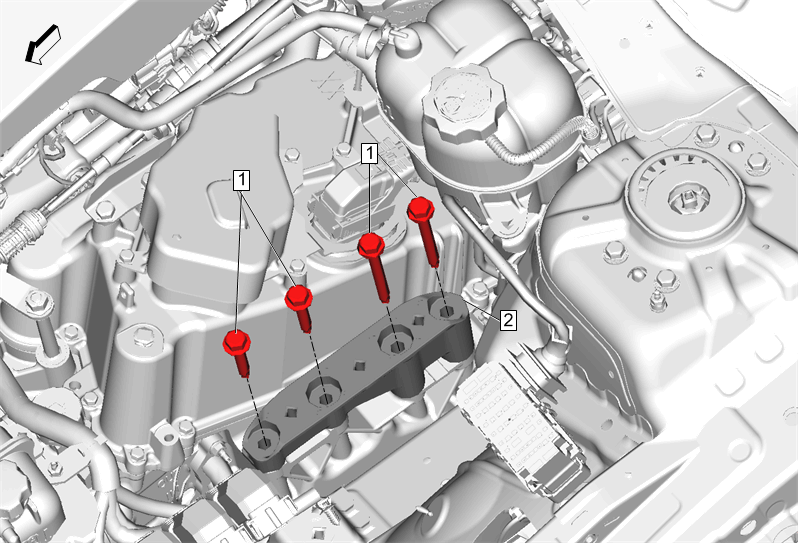

Fig 1: Transmission Mount Transmission-Side Bracket
GM4282553Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Transmission Mount Replacement
1 Transmission Mount Transmission Side Bracket Bolt [4x]
CAUTION: Fastener Caution

Tighten
58 N.m (43 lb ft)
2 Transmission Mount Transmission Side Bracket
