Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection (without KL9)Battery Negative Cable Disconnection and Connection (with KL9) .
  2. Drain the cooling system. Refer to Cooling System Draining and Filling (Static)Cooling System Draining and Filling (GE 47716)
  3. Fuel Feed Front Pipe (2) - Remove Fuel Feed Front Pipe Replacement

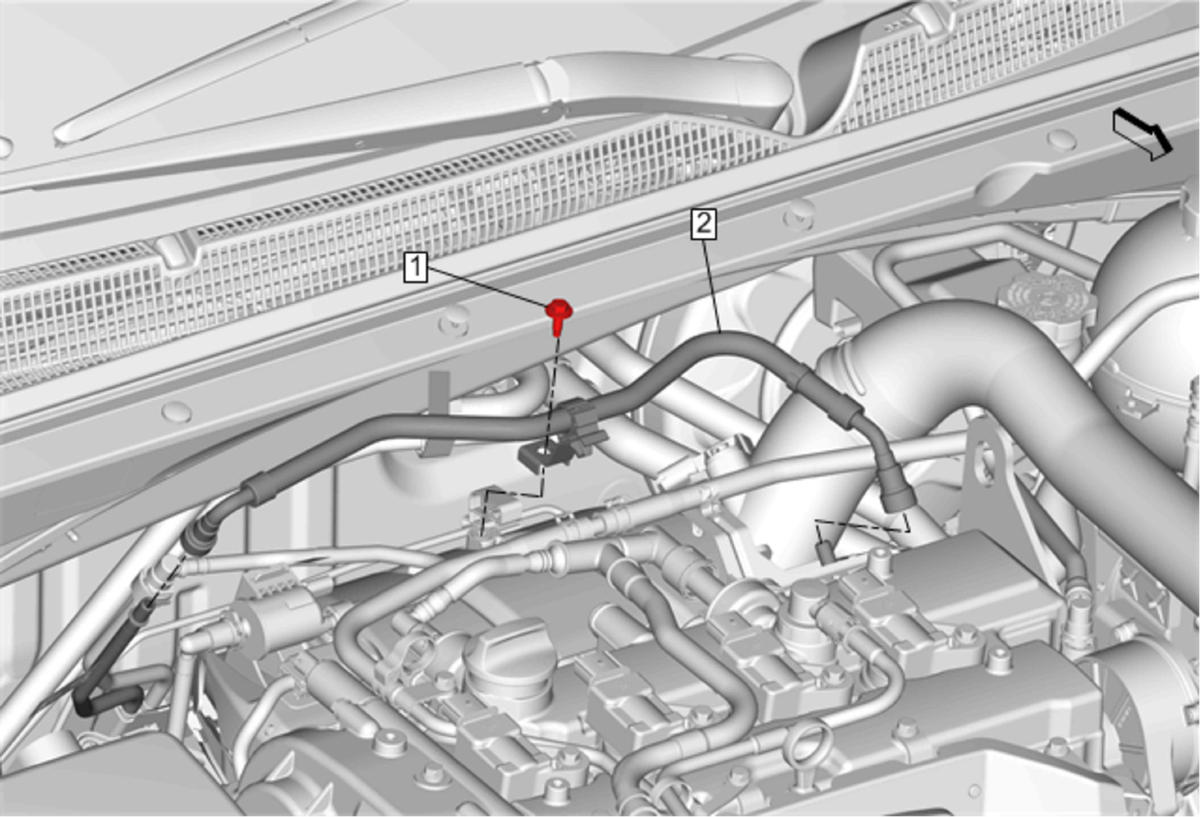

    Fig 1: Fuel Feed Front Pipe
    GM4214672Courtesy of GENERAL MOTORS COMPANY
  4. Drain the engine oil. Refer to Engine Oil and Oil Filter Replacement
  5. Recover the refrigerant. Refer to Refrigerant Recovery and Recharging (R-1234yf)
  6. Remove the battery tray. Refer to Battery Tray Replacement
  7. Transmission Range Selector Lever Cable (2) - Disconnect Automatic Transmission Range Selector Lever Cable Replacement
    Fig 2: Automatic Transmission Range Selector Lever Cable
    GM4486520Courtesy of GENERAL MOTORS COMPANY
  8. Engine Coolant Air Bleed Hose (2) @ Radiator Surge Tank - Disconnect Engine Coolant Air Bleed Hose Replacement (LTG)Engine Coolant Air Bleed Hose Replacement (LTG Engine Coolant Air Bleed Pipe to Radiator Surge Tank)

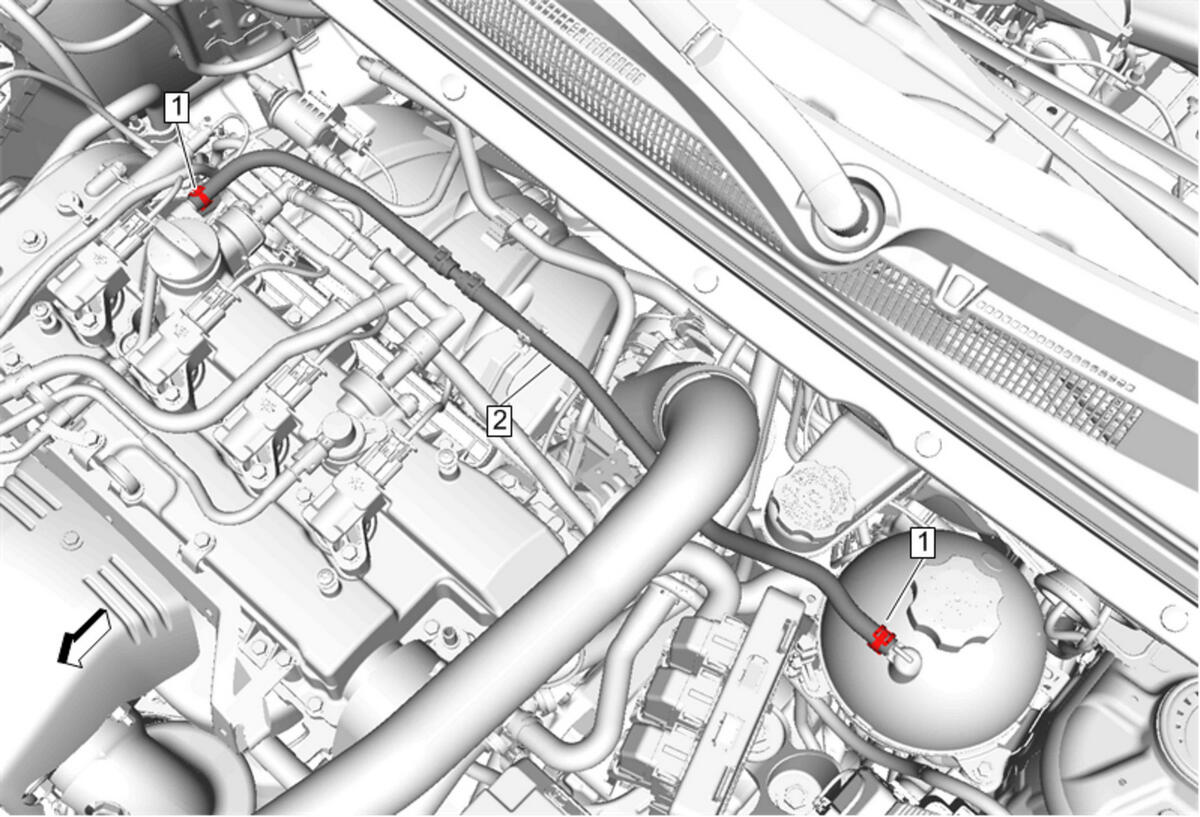

    Fig 3: Engine Coolant Air Bleed Hose (LTG Engine Coolant Air Bleed Pipe to Radiator Surge Tank)
    GM4281588Courtesy of GENERAL MOTORS COMPANY
  9. Air Cleaner Assembly (1) - Remove Air Cleaner Assembly Replacement .
    Fig 4: Air Cleaner Assembly
    GM4213286Courtesy of GENERAL MOTORS COMPANY
  10. Power Brake Booster Vacuum Pipe (1) - Remove Power Brake Booster Vacuum Pipe Replacement (LTG)
    Fig 5: Vacuum Hose
    GM3931439Courtesy of GENERAL MOTORS COMPANY
  11. Evaporative Emission Front Pipe (1) - Remove Evaporative Emission Front Pipe Replacement
    Fig 6: Evaporative Emission Front Pipe
    GM4214731Courtesy of GENERAL MOTORS COMPANY
  12. Charge Air Cooler Outlet Air Tube - Remove Charge Air Cooler Outlet Air Tube Replacement
  13. Radiator Inlet Hose (2) - Remove Radiator Inlet Hose Replacement (LTG)
    Fig 7: Radiator Inlet Hose (LTG)
    GM4237536Courtesy of GENERAL MOTORS COMPANY
  14. Radiator Outlet Hose (2) - Remove Radiator Outlet Hose Replacement (LTG)

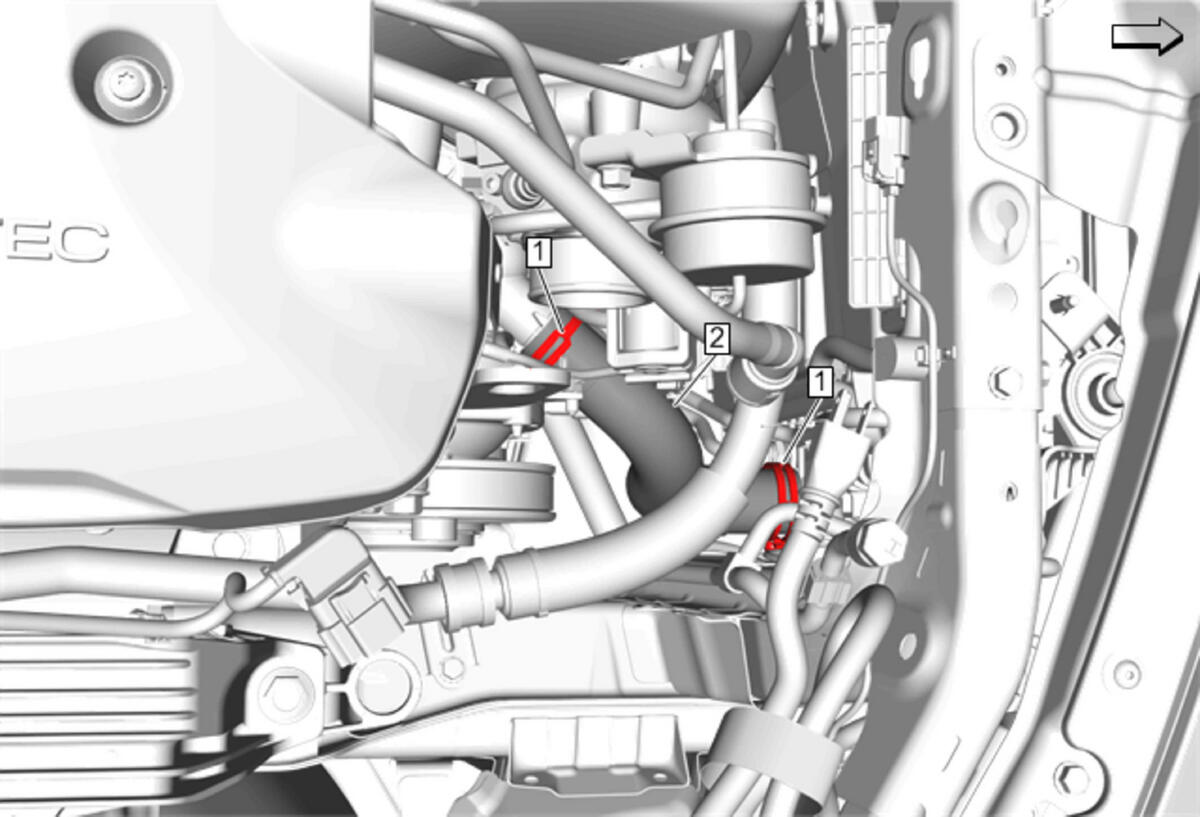

    Fig 8: Radiator Outlet Hose (LTG)
    GM4237530Courtesy of GENERAL MOTORS COMPANY
  15. Heater Inlet Hose (2) - Remove Heater Inlet Hose Replacement (LTG)

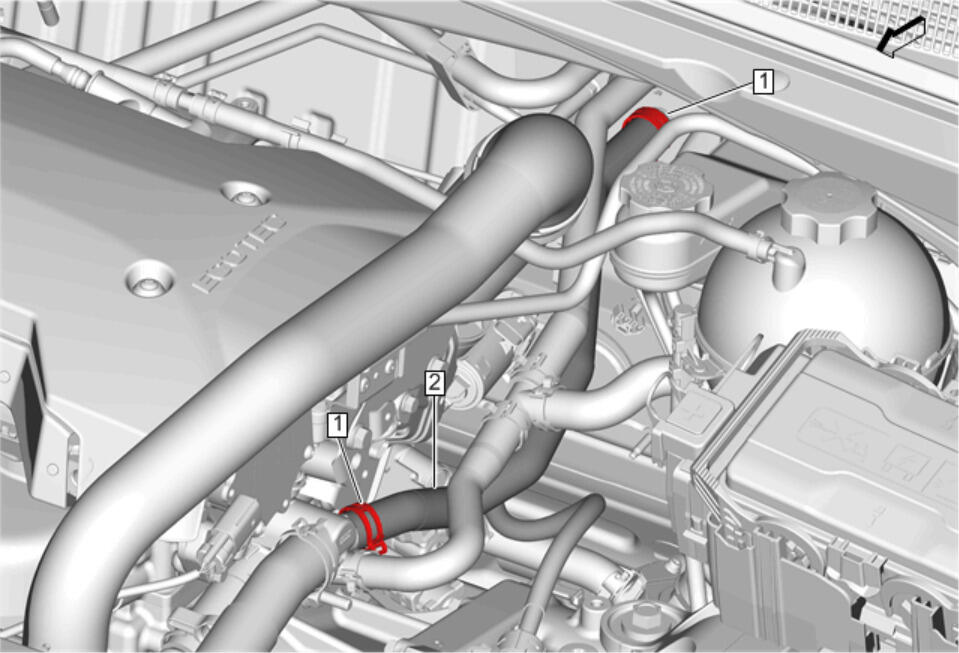

    Fig 9: Heater Inlet Hose
    GM4241079Courtesy of GENERAL MOTORS COMPANY
  16. Heater Outlet Hose (2) - Remove Heater Outlet Hose Replacement (LTG)

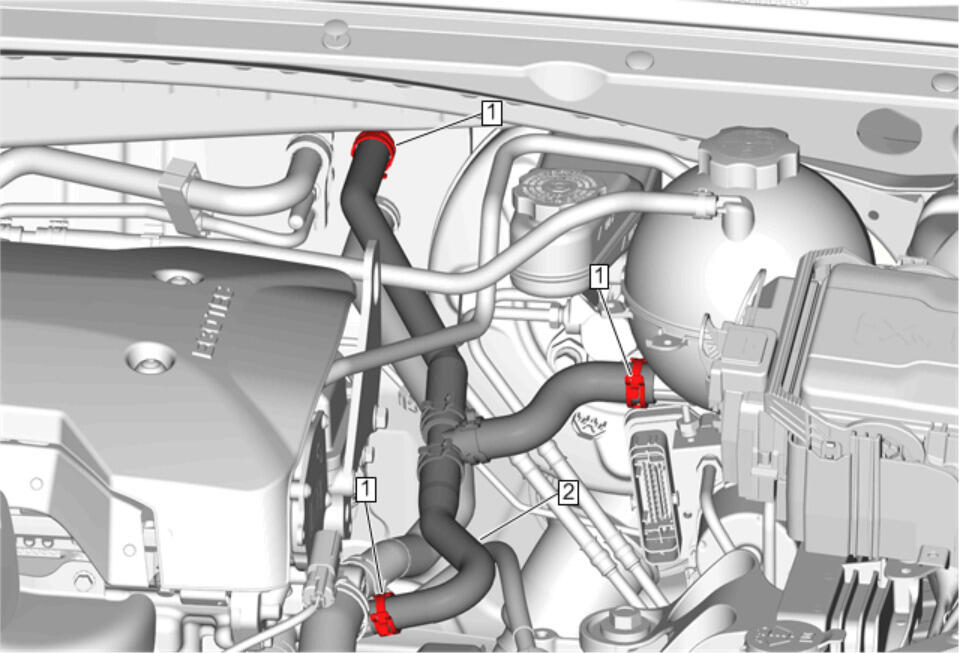

    Fig 10: Heater Outlet Hose
    GM4241076Courtesy of GENERAL MOTORS COMPANY
  17. Air Conditioning Compressor Hose - Remove Air Conditioning Compressor Hose Replacement (LTG)
  18. Disconnect the outer tie rod from the steering knuckle. (3) Steering Linkage Outer Tie Rod Replacement

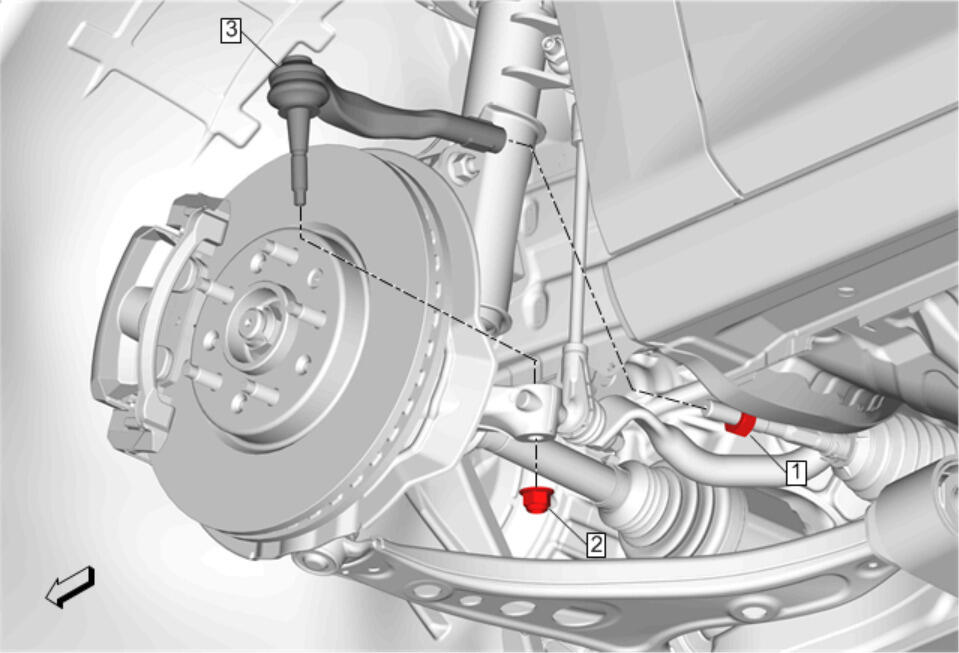

    Fig 11: Steering Linkage Outer Tie Rod
    GM4193847Courtesy of GENERAL MOTORS COMPANY
    NOTE: Disconnect the left and right sides. Left side shown, right side similar.
  19. Transmission Fluid Cooler Pipe Nut (1) - Remove Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (M3E)

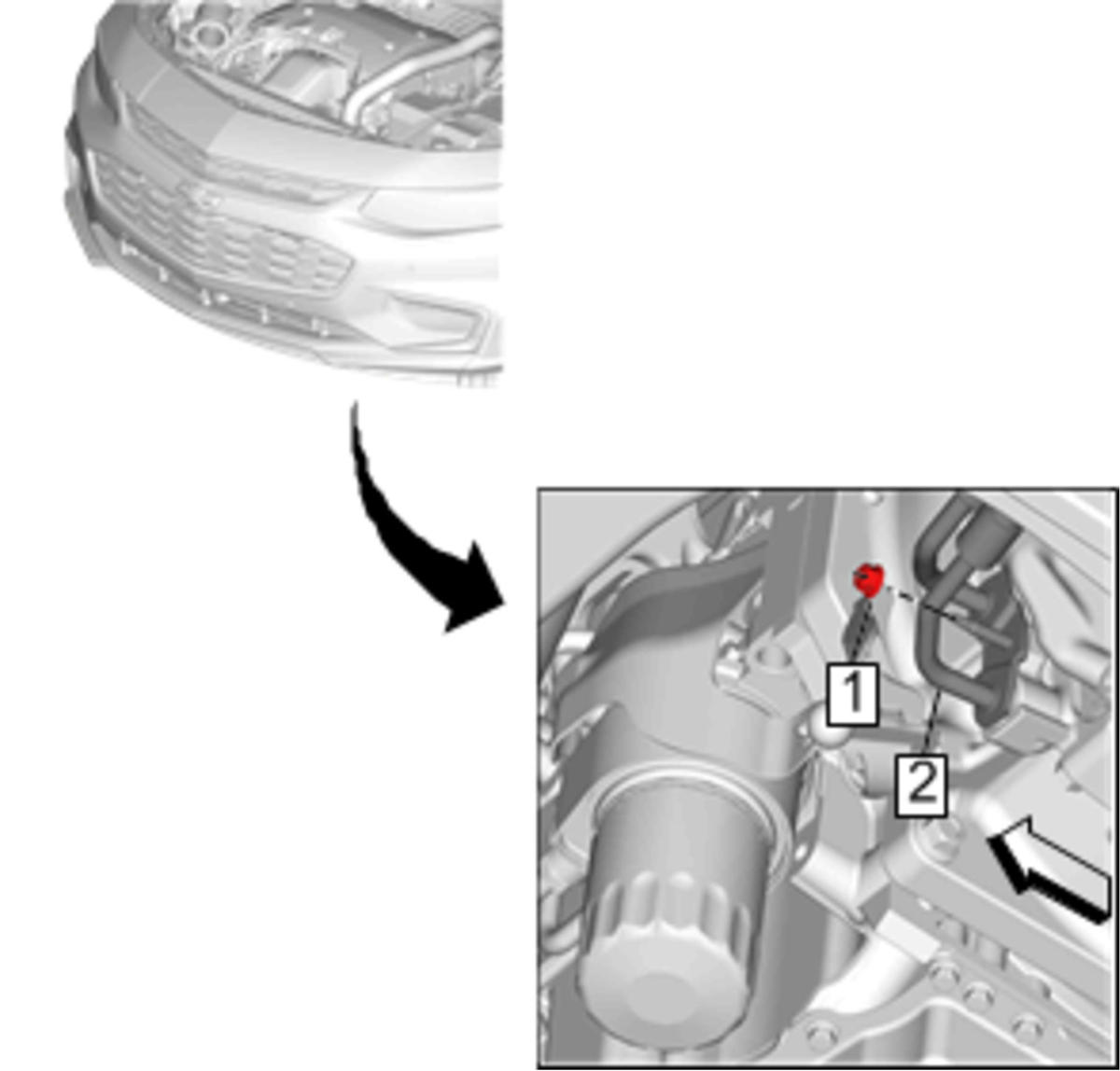

    Fig 12: Transmission Fluid Cooler Pipe Nut
    GM4218188Courtesy of GENERAL MOTORS COMPANY
    NOTE: Cover or plug all open transmission fluid cooler pipe connection points to help avoid any accidental contamination.
  20. Transmission Fluid Cooler Inlet and Outlet Pipe (2) @ Transmission - Remove
  21. Front Stabilizer Shaft Link (1) @ Front Stabilizer Shaft - Separate Stabilizer Shaft Link Replacement

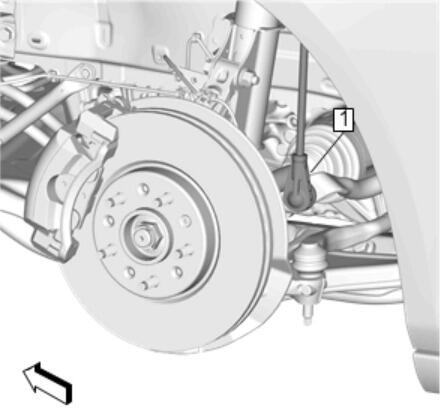

    Fig 13: Front Stabilizer Shaft Link
    GM4217616Courtesy of GENERAL MOTORS COMPANY
    NOTE: Disconnect the left and right sides. Left side shown, right side similar.

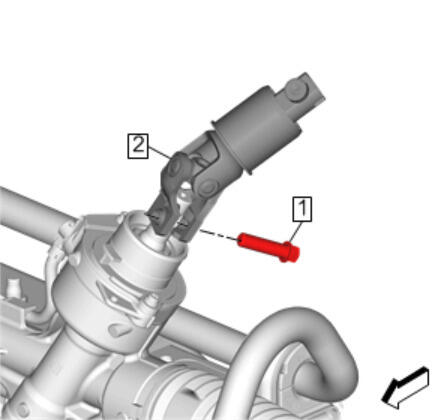

  22. Remove the intermediate shaft pinch bolt (1), then disconnect the intermediate shaft from the steering gear. Refer to Intermediate Steering Shaft Replacement
    Fig 14: Intermediate Steering Shaft
    GM4217687Courtesy of GENERAL MOTORS COMPANY
  23. Exhaust Front Pipe - Remove Exhaust Front Pipe Replacement (LTG)
  24. Front Wheel Drive Shaft - Left Side - Remove Front Wheel Drive Half Shaft Replacement - Left Side (MKE)Front Wheel Drive Half Shaft Replacement - Left Side (MNH)Front Wheel Drive Half Shaft Replacement - Left Side (M3E)
  25. Front Wheel Drive Shaft - Right Side - Remove Front Wheel Drive Half Shaft Replacement - Right Side (LTG)
  26. Position an engine support table under the powertrain assembly.
    NOTE: During the powertrain removal support the vehicle body by placing a jack at the rear of the vehicle.
  27. Blocks of wood can be used between the front of the frame and the oil pan to table in order to level the powertrain during the removal.
  28. With the table positioned, fully raise the table to contact with the powertrain assembly.
  29. Engine Mount Bolt (1) - Remove and DISCARD [2x] - Engine Mount Replacement
    Fig 15: Engine Mount To Engine Mount Bracket Bolts
    GM4238142Courtesy of GENERAL MOTORS COMPANY
  30. Transmission Mount Bolt (3) Remove and DISCARD [4x] - Transmission Mount Replacement (Left Side)
    Fig 16: Transmission Mount
    GM4507711Courtesy of GENERAL MOTORS COMPANY
  31. Remove the frame to body bolts. Refer to Drivetrain and Front Suspension Cradle Replacement
    NOTE: Remove ONLY the body to frame bolts as the powertrain will be removed while still bolted to the frame.
  32. Disconnect electrical connectors as necessary.
  33. Carefully lower the engine table and raise the body on the hoist until the engine/transaxle and frame are separated from the vehicle.
  34. Separate the engine from the transaxle. Refer to Transmission Replacement
  35. Install the engine to a suitable engine stand.
