Evaporative Emission Front Pipe Replacement

WARNING: This page is about a different variant/trim than selected.

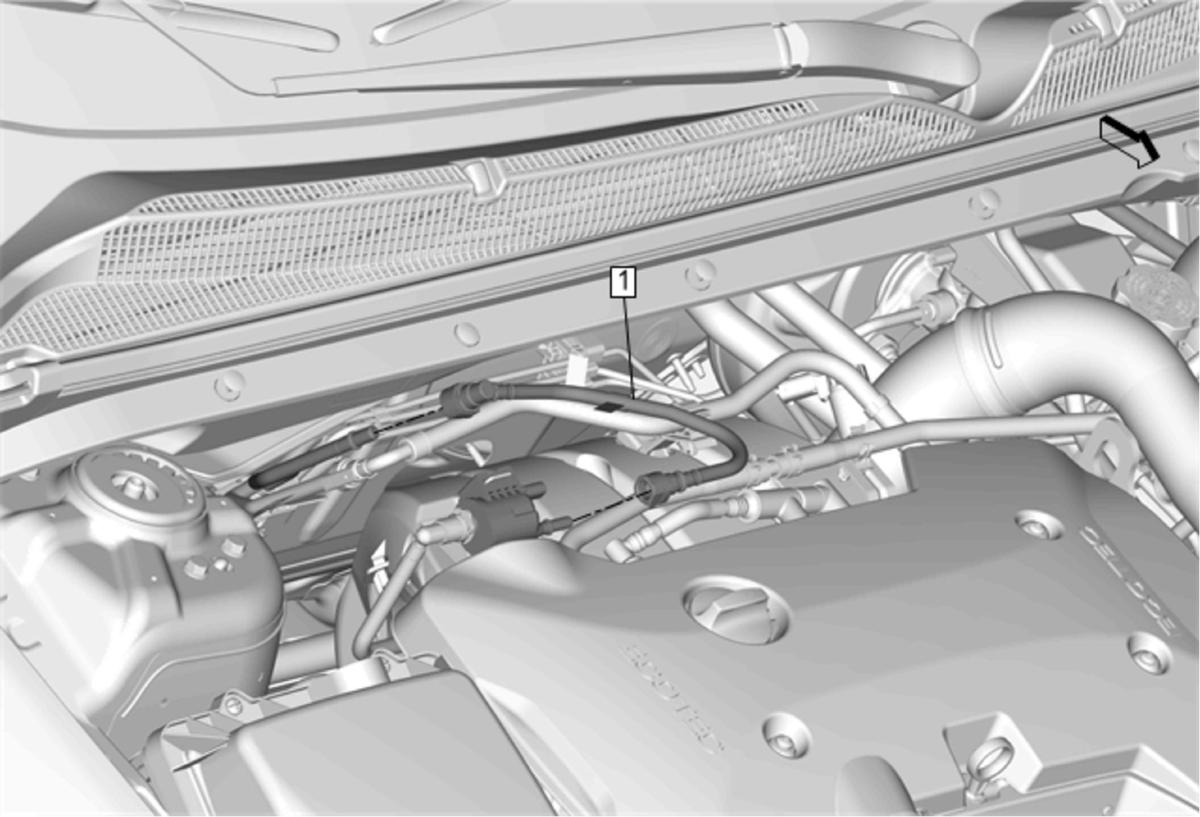

Fig 1: Evaporative Emission Front Pipe
GM4214731Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1
WARNING: Refer to Gasoline/Gasoline Vapors Warning .
WARNING: Refer to Safety Glasses Warning .
Evaporative Emission Front PipeProcedure Disconnect evaporative emission front pipe. Refer to Plastic Collar Quick Connect Fitting Service
