Front Floor Console Replacement (Up Level)

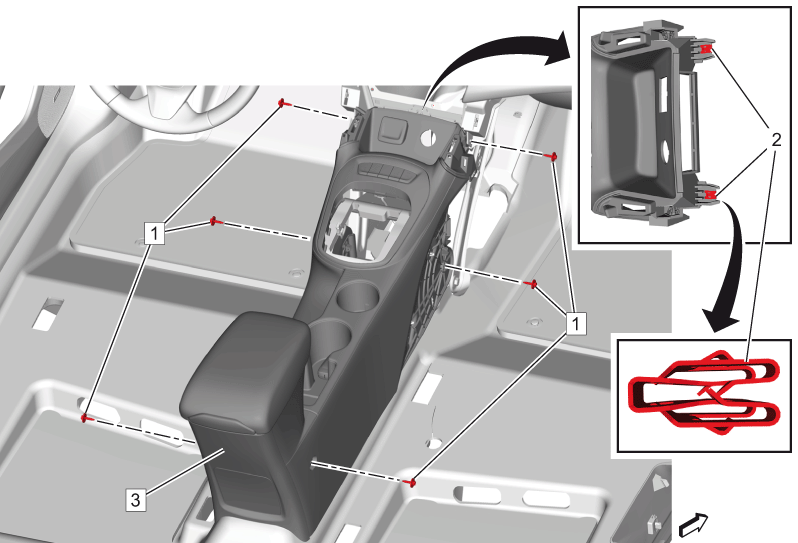

Fig 1: Front Floor Console

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Front Floor Console Extension Panel Replacement (Qty: 2) Instrument Panel Fuse Block Access Cover Frame Replacement Instrument Panel Fuse Block Access Hole Cover Replacement Transmission Control Lever Knob Replacement
1	Front Floor Console Bolt (Qty: 6) CAUTION: Fastener Caution Tighten 2.5 N.m (22 lb in)
2	Front Floor Console Procedure Loosen the parking brake lever boot. Parking Brake Lever Boot Replacement Disconnect the electrical connectors. Transfer components as necessary.

Callout

Component Name

Preliminary Procedures

Front Floor Console Bolt (Qty: 6)

CAUTION:

Tighten
2.5 N.m (22 lb in)

Front Floor Console

Procedure
