Front Floor Console Extension Panel Replacement

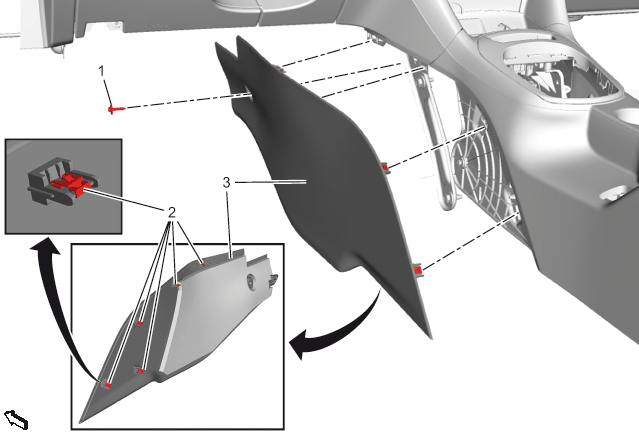

Fig 1: Front Floor Console Extension Panel

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	{ If equipped }Front Floor Console Extension Panel Fastener CAUTION: Fastener Caution Tighten  2.5 N.m (22 lb in)
2	Front Floor Console Extension Panel Retainer (Qty: 5)
3	Front Floor Console Extension Panel Procedure  Use a flat bladed plastic tool to remove.
