Parking Brake Lever Boot Replacement

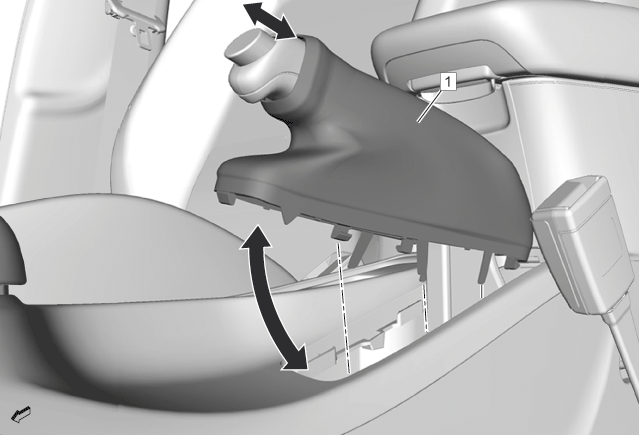

Fig 1: Parking Brake Lever Boot
GM4117412Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Parking Brake Lever Boot

Procedure

  1. Unlock the retaining tabs.
  2. Push the parking brake lever boot over the parking brake lever.
