Instrument Panel Fuse Block Access Cover Frame Replacement
Instrument Panel Fuse Block Access Cover Frame Replacement

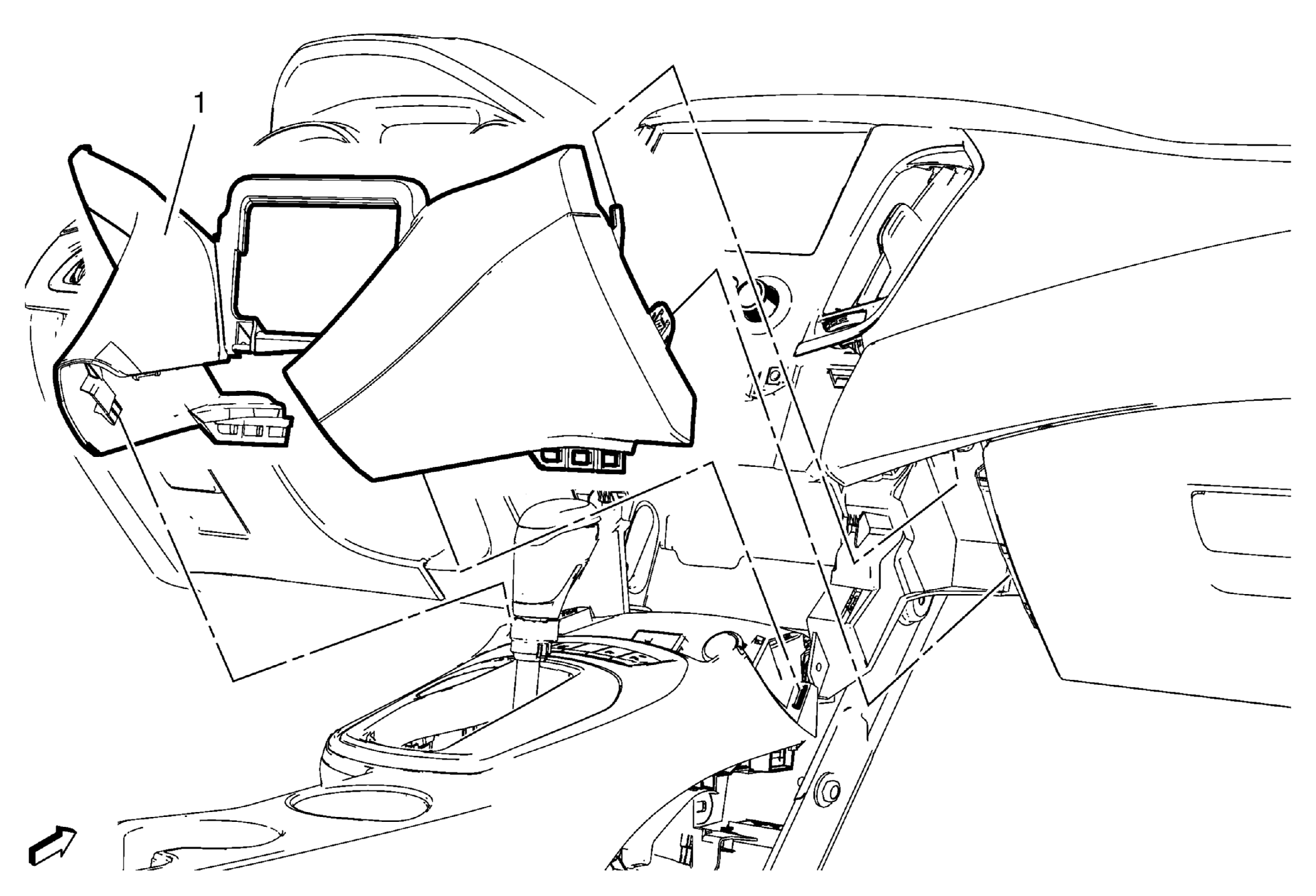

Fig 1: Instrument Panel Fuse Block Access Cover Frame
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
Preliminary Procedures
Front Floor Console Extension Panel Replacement
(Qty: 2)
Instrument Panel Fuse Block Access Hole Cover Replacement
1
Instrument Panel Fuse Block Access Cover Frame
