Engine Mount Replacement (LKW)

WARNING: This page is about a different car, the 2015 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

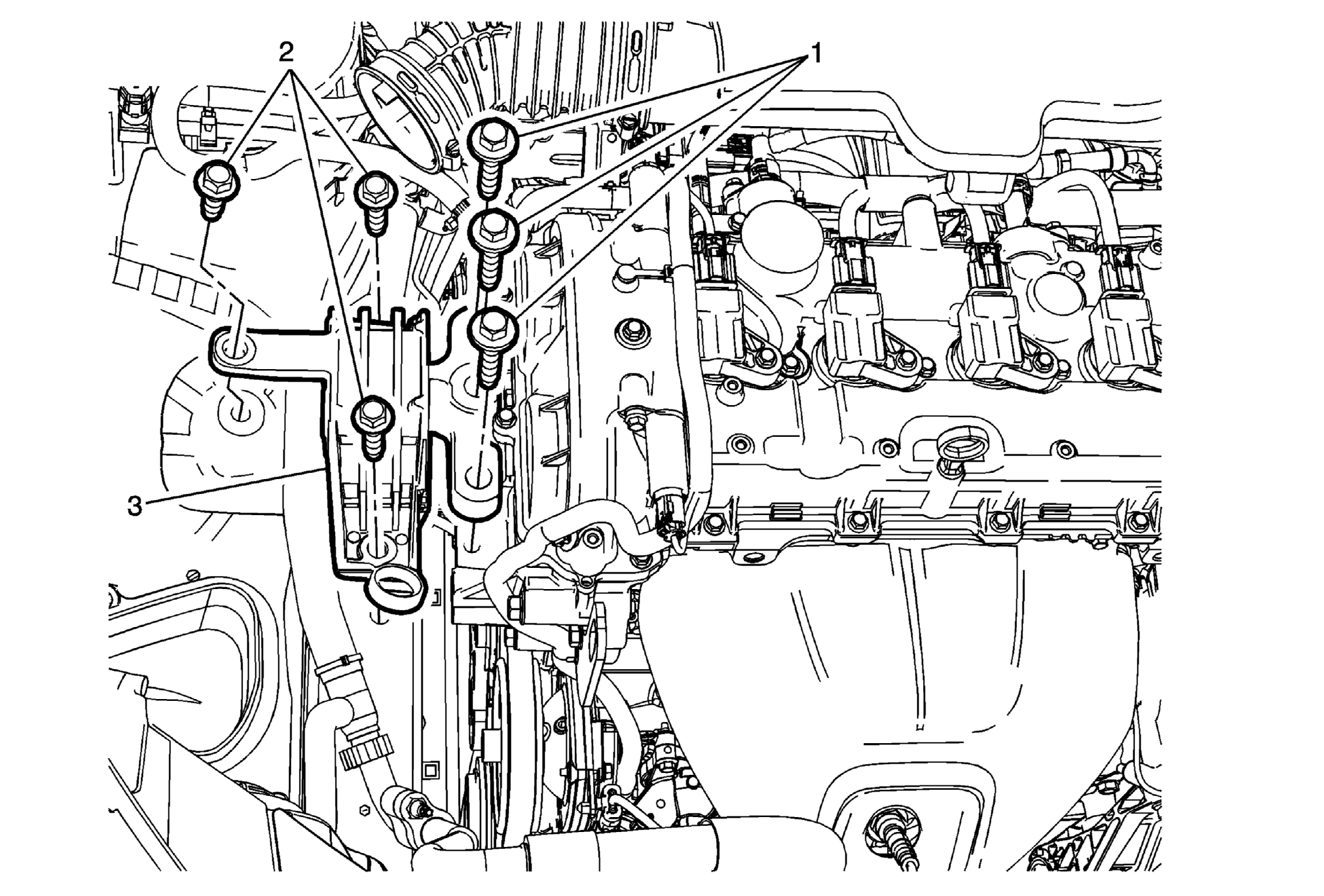

Fig 1: Engine Mount (LKW)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement (LKW) . Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement (LKW) . Install the engine support fixture. Refer to Engine Support Fixture .
1	Engine Mount Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 62 N.m (46 lb ft)
2	Engine Mount Bolt (Qty: 3) Tighten 62 N.m (46 lb ft)
3	Engine Mount
