Air Cleaner Assembly Replacement (LKW)

WARNING: This page is about a different car, the 2015 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

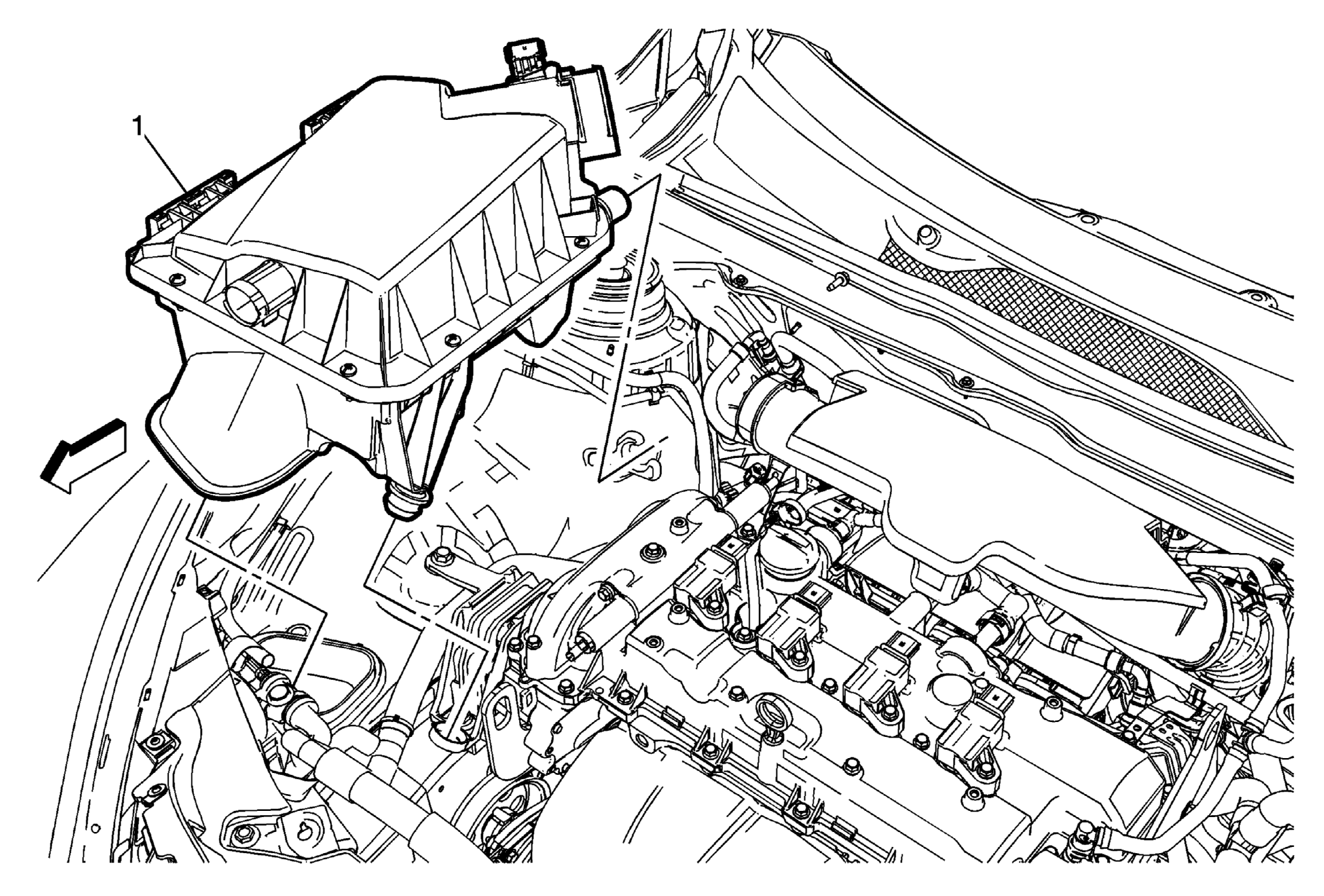

Fig 1: Air Cleaner Assembly (LKW)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disconnect the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement (LKW) . Disconnect the mass airflow sensor electrical connector and disconnect the harness from the 2 retainers.
1	Air Cleaner Assembly Procedure Remove the air cleaner housing from the retainers, while guiding the housing out of the inlet duct. Transfer parts as necessary.

Callout

Component Name

Preliminary Procedures

Disconnect the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement (LKW) .
Disconnect the mass airflow sensor electrical connector and disconnect the harness from the 2 retainers.

Air Cleaner Assembly

Procedure

Remove the air cleaner housing from the retainers, while guiding the housing out of the inlet duct.
Transfer parts as necessary.
