Intake Manifold Cover Replacement (LKW)
WARNING: This page is about a different car, the 2015 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

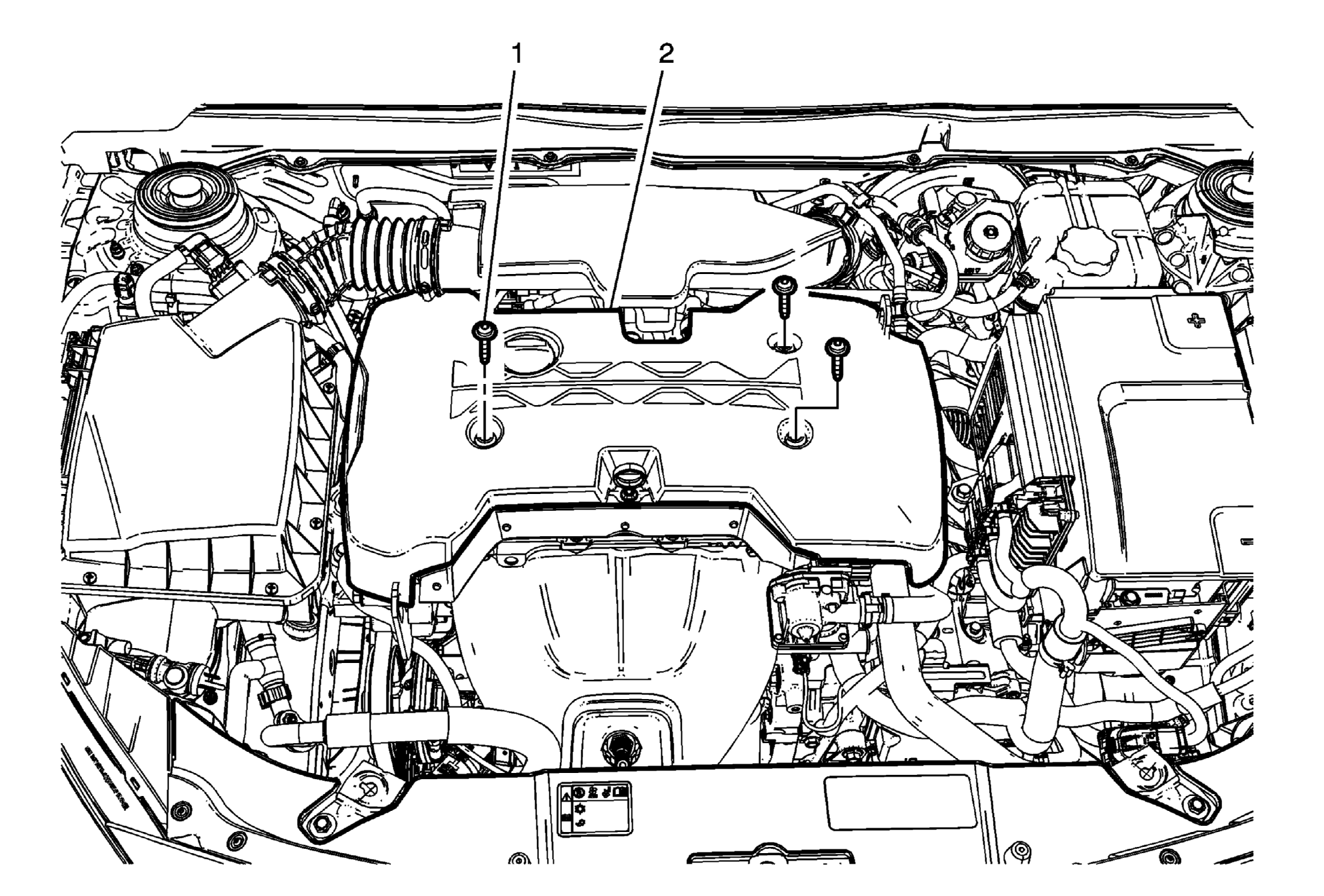

| Callout | Component Name |
|---|---|
| 1 | Intake Manifold Cover Fastener (Qty, 3)
CAUTION:
Refer to Fastener Caution
. Tighten 9 N.m (80 lb in) |
| 2 | Intake Manifold Cover Procedure Remove the oil cap before removing the intake manifold cover. |
