Engine Support Fixture

WARNING: This page is about a different car, the 2015 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

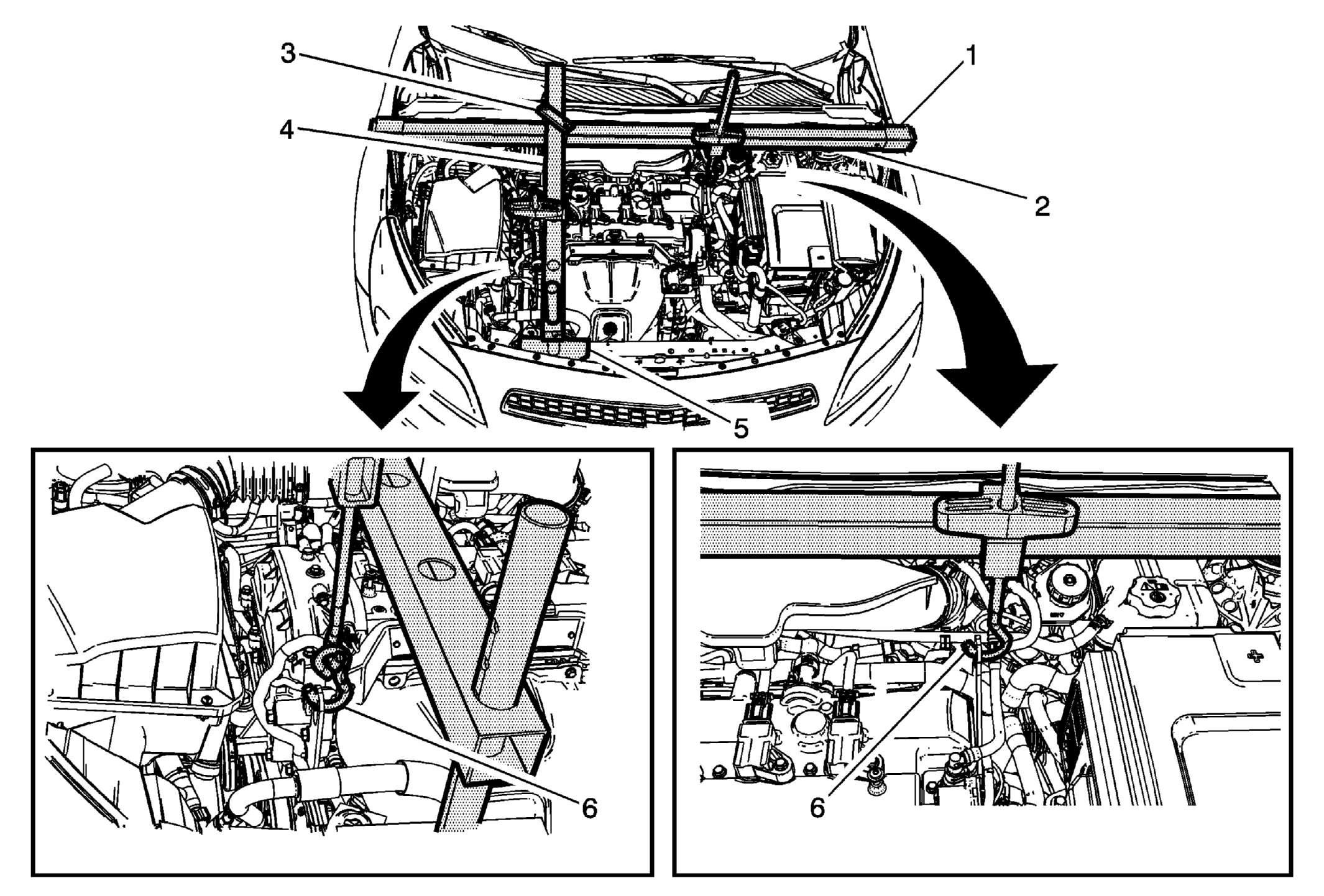

Fig 1: Engine Support

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement (LKW) and Intake Manifold Cover Replacement (LTG) . Disconnect the hood strut. Refer to Hood Strut Replacement . Special Tools J-36462-A Engine Support Fixture Kit J-28467-34 (2) Lift Wing Hook J-43405-1 Passenger Side Engine Support Adapter J-43405-2 Driver Side Engine Support Adapter J-28467-518 Main Support Beam J-36857 Engine Lift Bracket Set For equivalent regional tools. Refer to Special Tools .
1	Engine Support Fixture Adapter Leg (Qty: 2) Procedure Install the bracket to fender frame. Do not install on top of fender lip.
2	Main Support Beam
3	Cross Bracket
4	Strut Tower Support Assembly Procedure Adjust the length of the strut tower support assembly.
5	Radiator Tube Shelf Assembly
6	Hook Assembly (Qty: 2) NOTE: If the engine is not equipped with engine lift bracket, install J-36857 engine lift bracket in place.
