Center Pillar Center Trim Panel Replacement

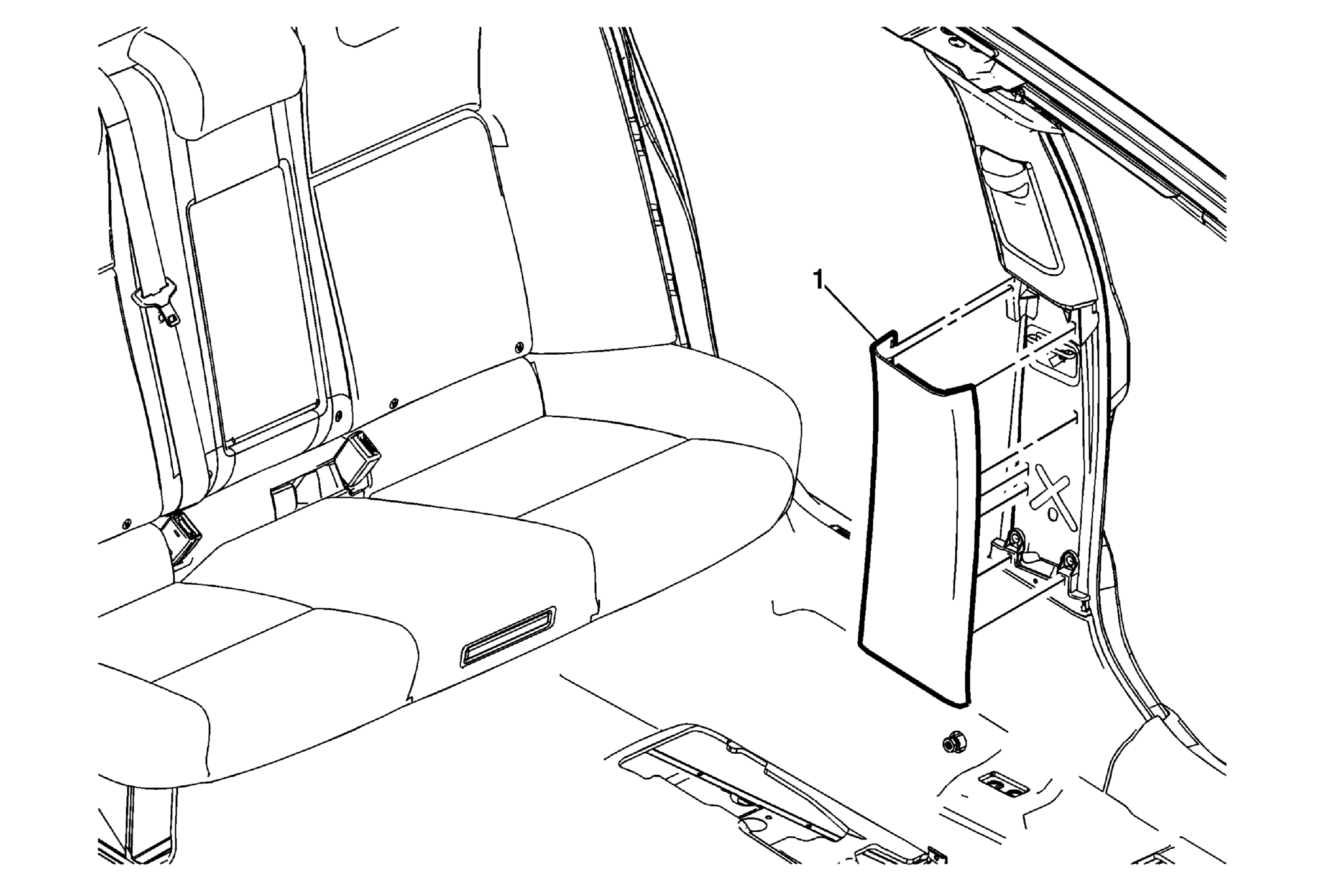

Fig 1: Center Pillar Center Trim Panel

GM3243482

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedures

Open the front and rear doors.
Partially detach the front side door weatherstrip around the center pillar center trim panel. Refer to Front Side Door Weatherstrip Replacement - Door Side .
Partially detach the rear side door upper auxiliary weatherstrip. Refer to Front or Rear Side Door Upper Auxiliary Weatherstrip Replacement (Front)Front or Rear Side Door Upper Auxiliary Weatherstrip Replacement (Rear) .

1

Center Pillar Center Trim Panel Assembly

Procedure

Grasp and spread both sides at the top of the center pillar center trim panel and then pull away from the center pillar, disengaging it from the center pillar upper trim panel.
Grasp and spread both sides at the bottom of the center pillar center trim panel and then pull away from the center pillar, disengaging it from the center pillar lower trim panel.
