Front or Rear Side Door Upper Auxiliary Weatherstrip Replacement (Rear)

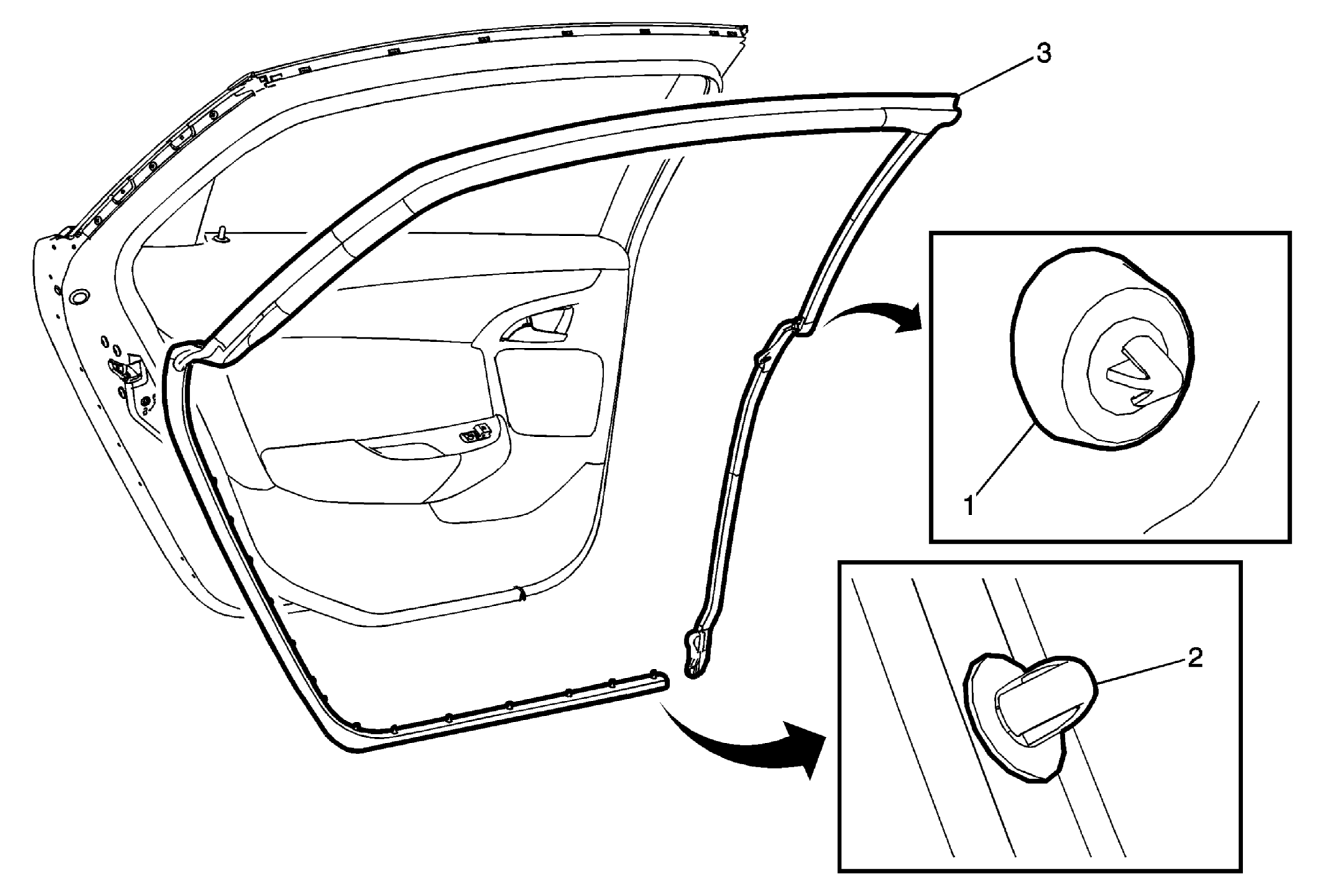

Fig 1: Front or Rear Side Door Upper Auxiliary Weatherstrip (Rear)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Rear Side Door Upper Auxiliary Weatherstrip Upper Retainers (Qty :4) Procedure Open the rear side door to the full open position. Use a suitable tool, remove the push-in retainers from the corners of the door. Pull the weatherstrip out of the door frame.
2	Rear Side Door Upper Auxiliary Weatherstrip Lower Retainers (Qty :18)
3	Rear Side Door Upper Auxiliary Weatherstrip Procedure Ensure that the weatherstrip is fully seated in the door frame. NOTE: Inspect the door to ensure a proper seal after weatherstrip has been replaced.

Callout

Component Name

Rear Side Door Upper Auxiliary Weatherstrip Upper Retainers (Qty :4)

Procedure

Rear Side Door Upper Auxiliary Weatherstrip Lower Retainers (Qty :18)

Rear Side Door Upper Auxiliary Weatherstrip
Procedure
Ensure that the weatherstrip is fully seated in the door frame.

NOTE:

Inspect the door to ensure a proper seal after weatherstrip has been replaced.
