Front Side Door Weatherstrip Replacement - Door Side

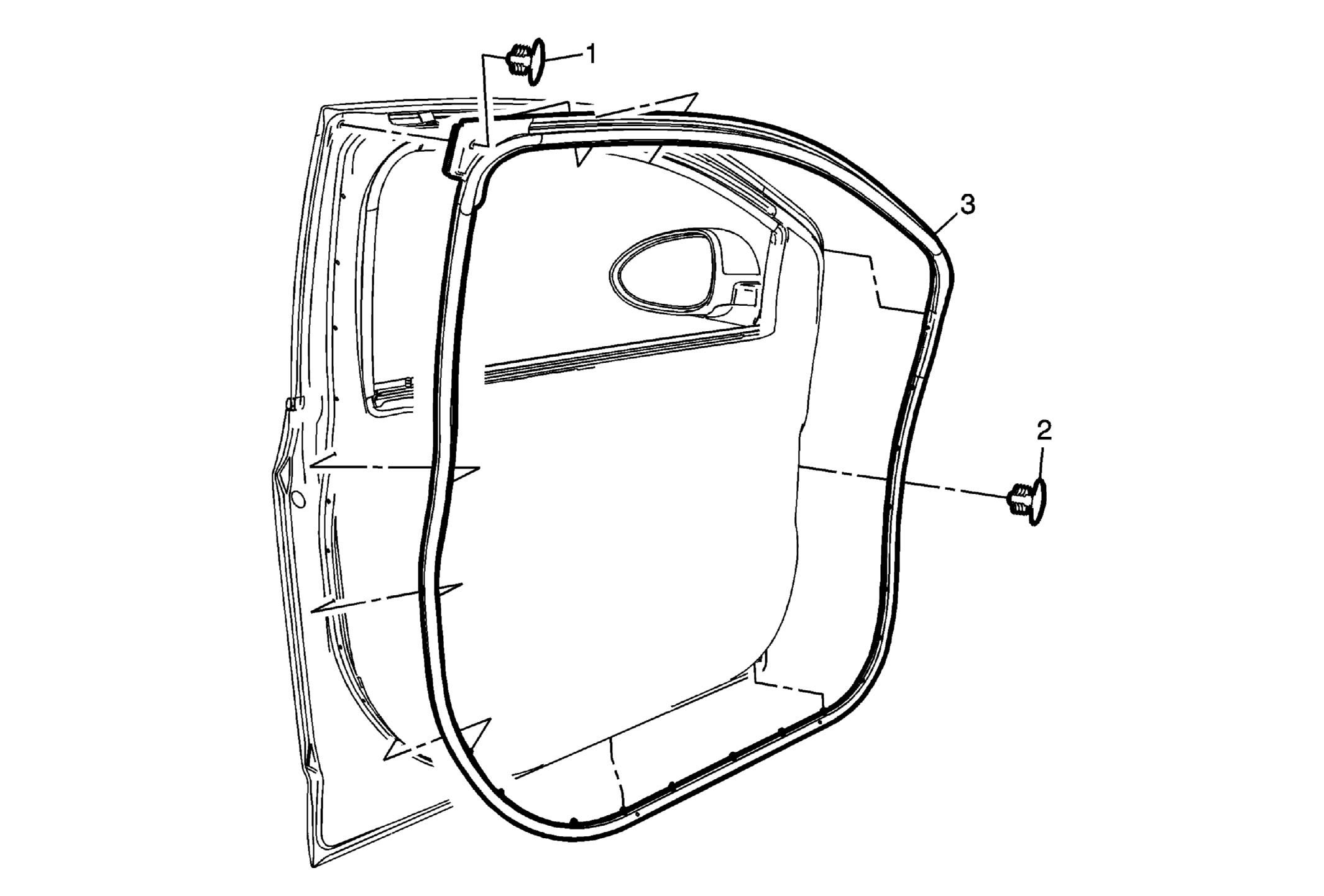

Fig 1: Front Side Door Weatherstrip & Clips - Door Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Front Side Door Weatherstrip Upper Clip (Qty:4) Procedure Open the front side door to the full open position. Remove the front side door check link bolt. Refer to Front Side Door Check Link Replacement . Using the appropriate tool, remove the push-in clip from the upper rear corner of the door. Pull the weatherstrip out of the door frame.
2	Front Side Door Weatherstrip Clip (Qty:18)
3	Front Side Door Weatherstrip to Door Side Procedure Ensure that the weatherstrip is fully seated in the door frame. NOTE: Inspect the door to ensure a proper seal after the weatherstrip has been replaced.

Callout

Component Name

Front Side Door Weatherstrip Upper Clip (Qty:4)

Procedure

Open the front side door to the full open position.
Remove the front side door check link bolt. Refer to Front Side Door Check Link Replacement .
Using the appropriate tool, remove the push-in clip from the upper rear corner of the door.
Pull the weatherstrip out of the door frame.

Front Side Door Weatherstrip Clip (Qty:18)

Front Side Door Weatherstrip to Door Side
Procedure
Ensure that the weatherstrip is fully seated in the door frame.

NOTE:

Inspect the door to ensure a proper seal after the weatherstrip has been replaced.
