Front or Rear Side Door Upper Auxiliary Weatherstrip Replacement (Front)

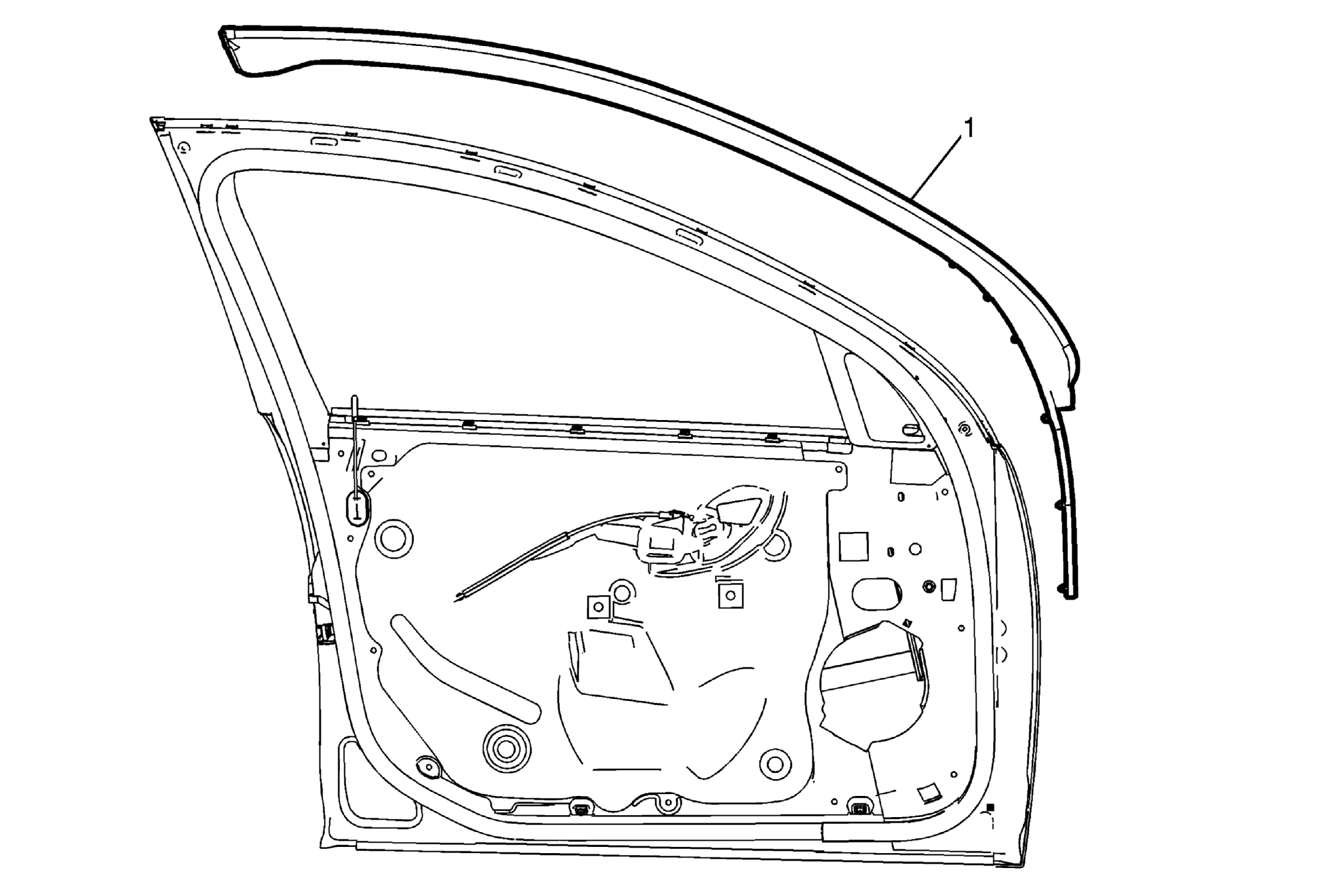

Fig 1: Front or Rear Side Door Upper Auxiliary Weatherstrip (Front)
GM2968452Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Front Side Door Upper Auxiliary Weatherstrip

Procedure

  1. Open the front side door to the full open position.
  2. Unclip the front side door upper auxiliary weatherstrip from the front side door.
NOTE:

Inspect the door to ensure a proper seal after the weatherstrip has been replaced.
