Stop and Turn Signal Lamp Bulb Replacement (Outboard, Right Side)

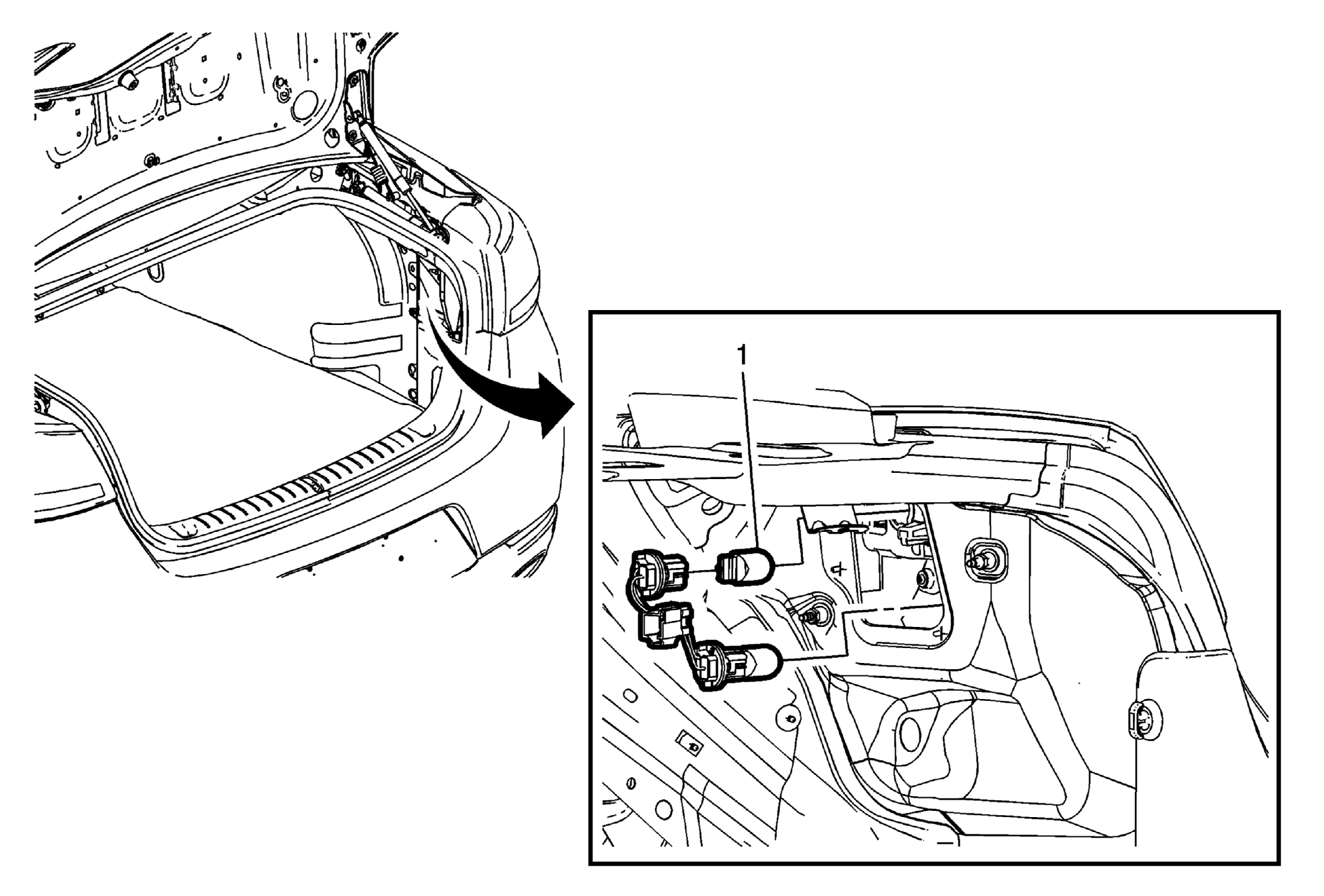

Fig 1: Stop & Turn Signal Lamp Bulb (Outboard, Right Side)
GM3326132Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the rear lamp wiring harness. Refer to Rear Lamp Wiring Harness Replacement (Inboard) Rear Lamp Wiring Harness Replacement (Outboard, Left Side) Rear Lamp Wiring Harness Replacement (Outboard, Right Side) .
1 Stop and Turn Signal Lamp Bulb
Procedure
Pull the stop and turn signal lamp bulb straight out from the rear lamp wiring harness.
