Rear Lamp Wiring Harness Replacement (Outboard, Right Side)

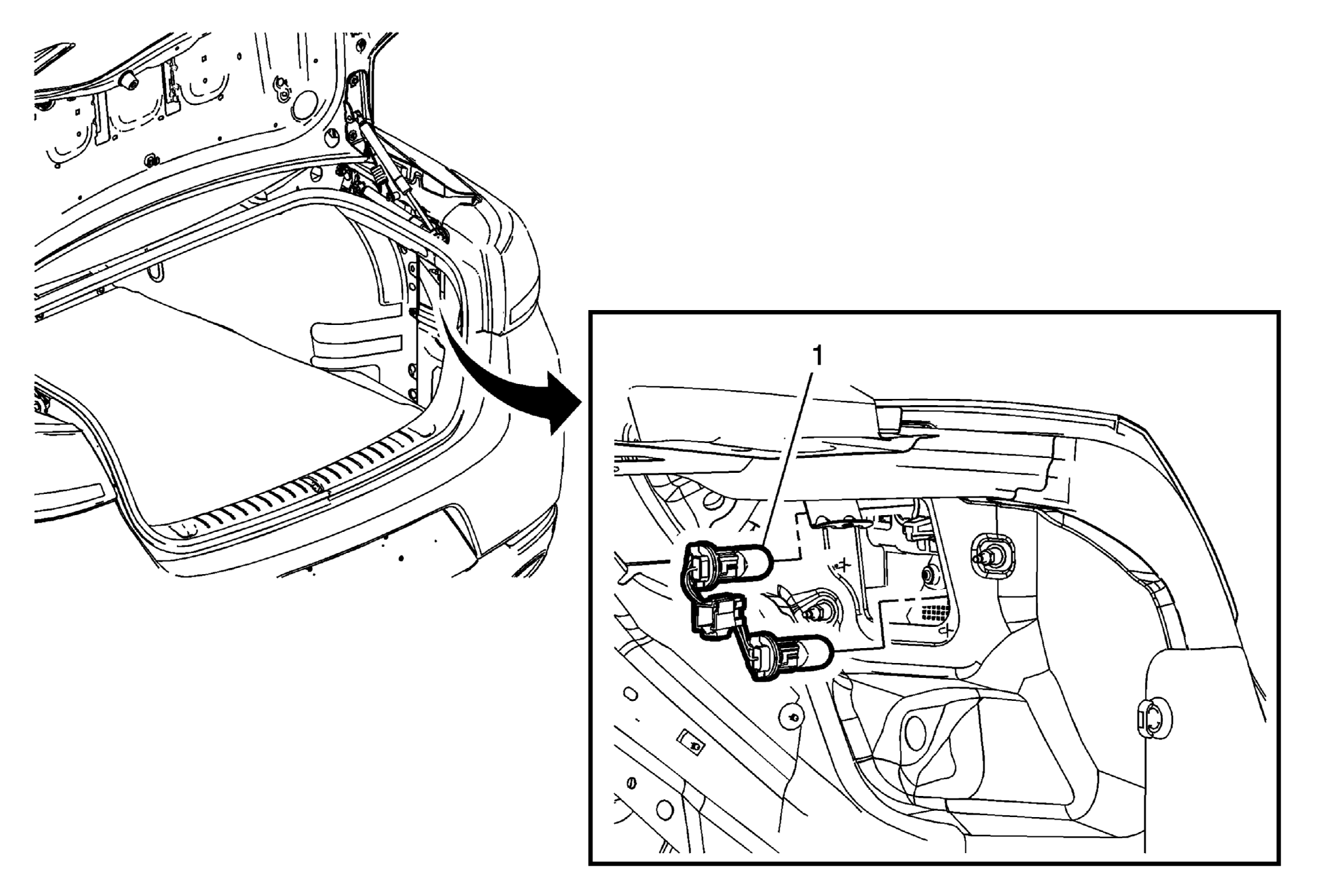

Fig 1: Rear Lamp Wiring Harness (Outboard, Right Side)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the rear compartment side trim panel. Refer to Rear Compartment Side Trim Panel Replacement (Left Side)Rear Compartment Side Trim Panel Replacement (Right Side) .
1	Rear Lamp Wiring Harness Procedure  Rotate counterclockwise and pull the rear lamp wiring harness from the tail lamp.
