Rear Lamp Wiring Harness Replacement (Outboard, Left Side)

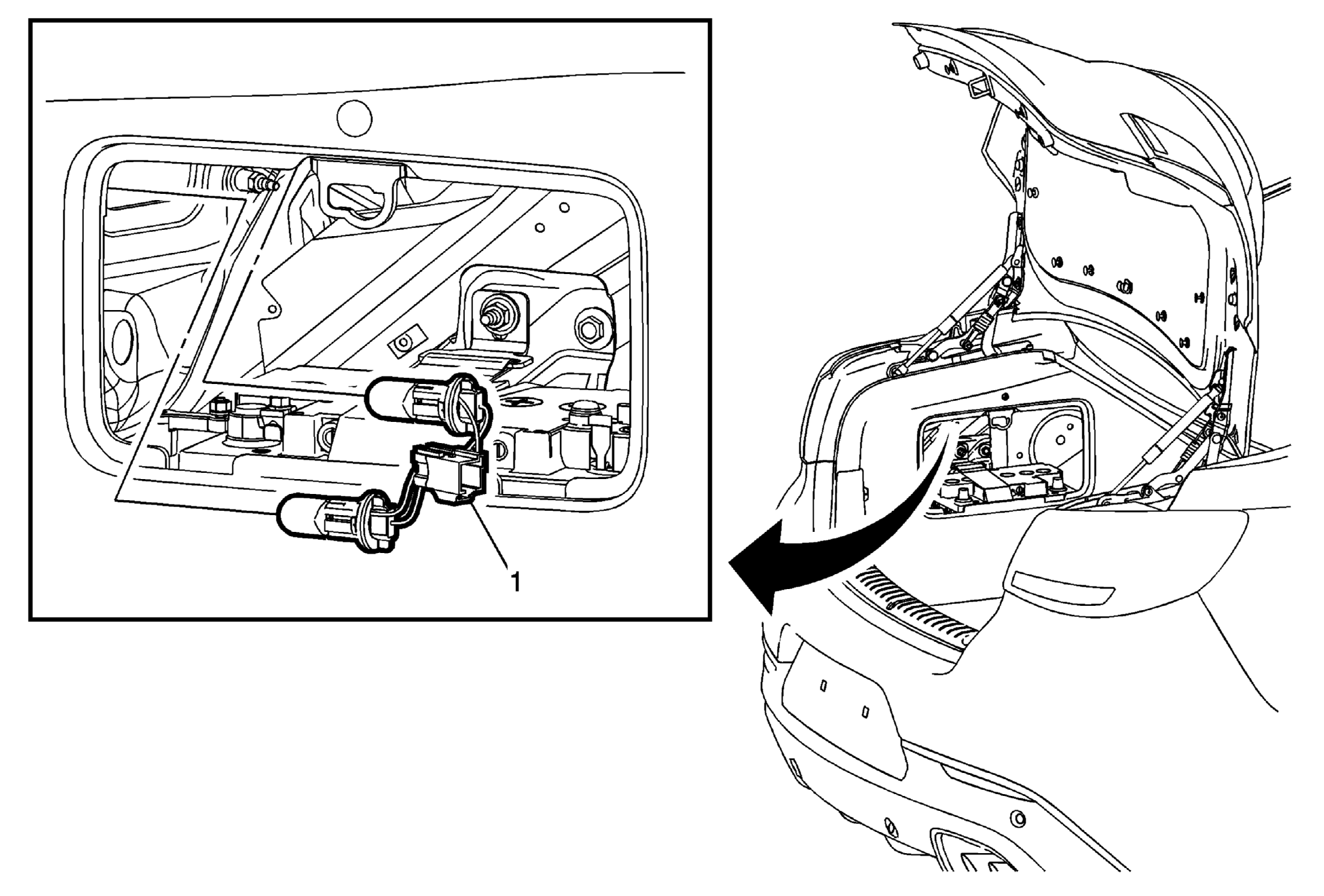

Fig 1: Rear Lamp Wiring Harness (Outboard, Left Side)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the rear compartment side trim panel access hole cover. Refer to Rear Compartment Side Trim Panel Access Hole Cover Replacement .
1	Rear Lamp Wiring Harness Procedure  Rotate counterclockwise and pull the rear lamp wiring harness from the tail lamp.
