Rear Lamp Wiring Harness Replacement (Inboard)

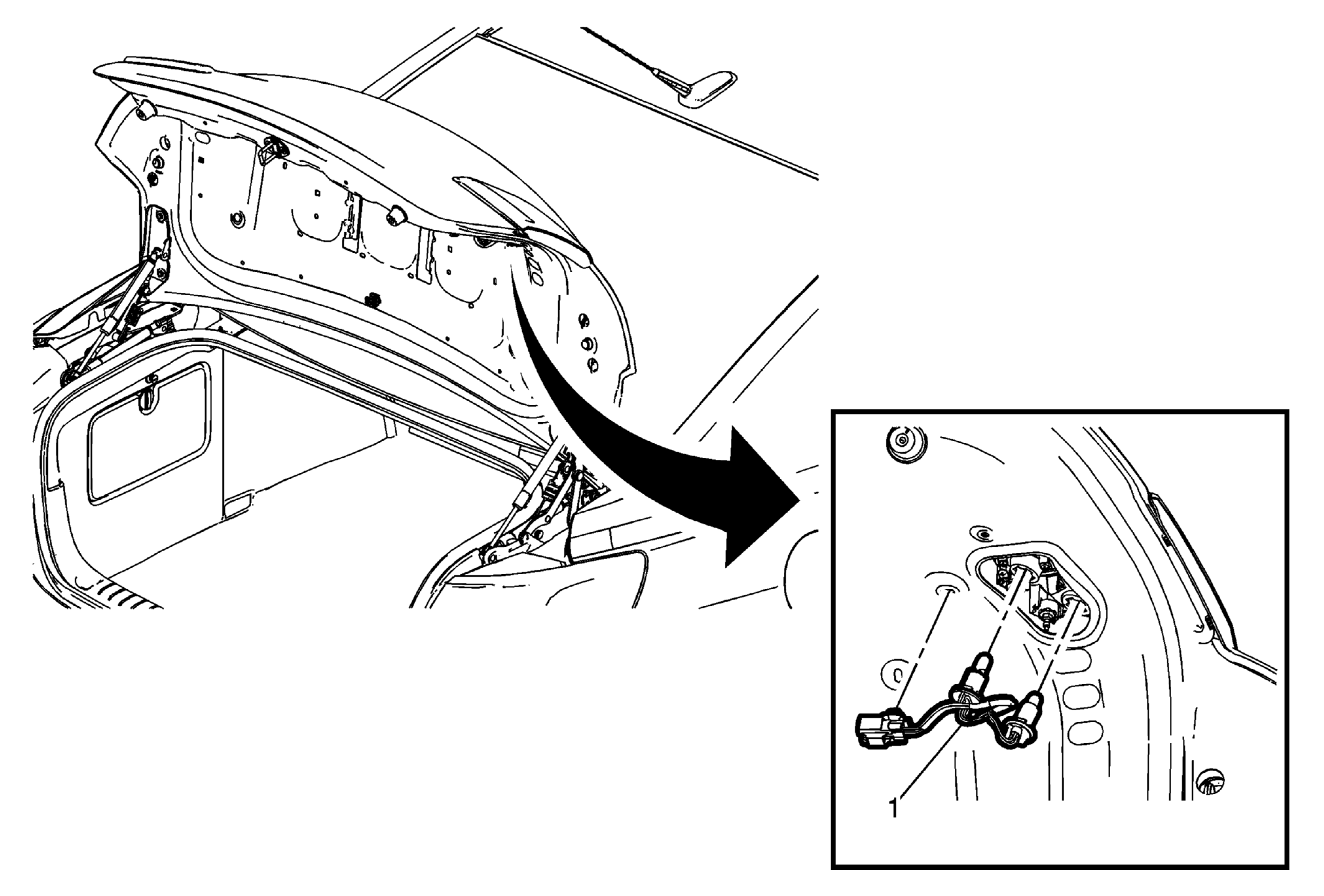

Fig 1: Rear Lamp Wiring Harness (Inboard)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear compartment lid carpet. Refer to Rear Compartment Lid Carpet Replacement .
1	Rear Lamp Wiring Harness Procedure Rotate counterclockwise and pull the rear lamp wiring harness bulb sockets from the tail lamp. With a trim type release tool release the retainer and pull the harness from the tail lamp.

Callout

Component Name

Preliminary Procedure
Remove the rear compartment lid carpet. Refer to Rear Compartment Lid Carpet Replacement .

Rear Lamp Wiring Harness

Procedure

Rotate counterclockwise and pull the rear lamp wiring harness bulb sockets from the tail lamp.
With a trim type release tool release the retainer and pull the harness from the tail lamp.
