Stop and Turn Signal Lamp Bulb Replacement (Outboard, Left Side)

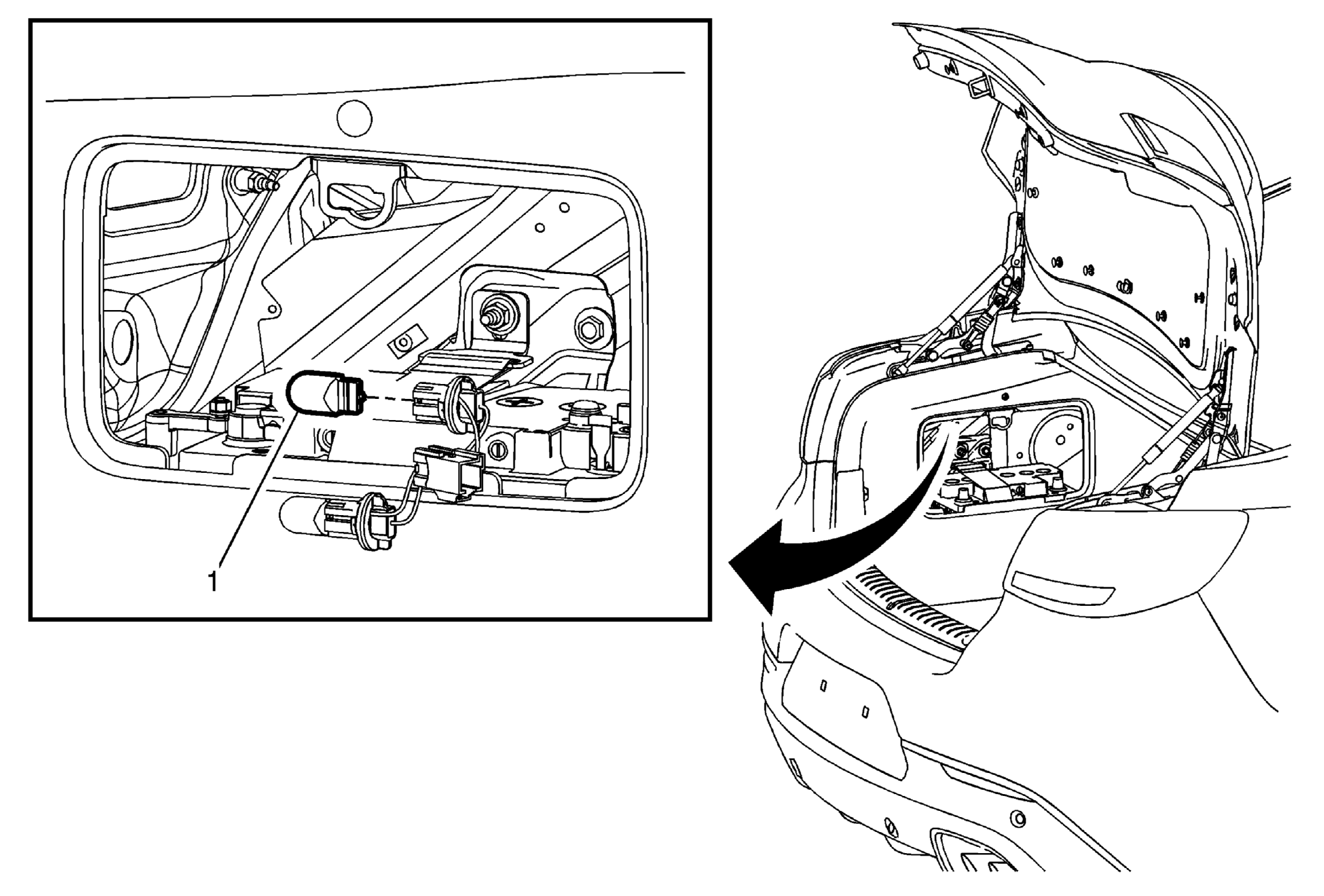

Fig 1: Stop & Turn Signal Lamp Bulb (Outboard, Left Side)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the rear lamp wiring harness. Refer to Rear Lamp Wiring Harness Replacement (Inboard) Rear Lamp Wiring Harness Replacement (Outboard, Left Side) Rear Lamp Wiring Harness Replacement (Outboard, Right Side) .
1	Stop and Turn Signal Lamp Bulb Procedure  Pull the stop and turn signal lamp bulb straight out from the rear lamp wiring harness.
