Rear Turn Signal Lamp Bulb Replacement (Outboard, Left Side)

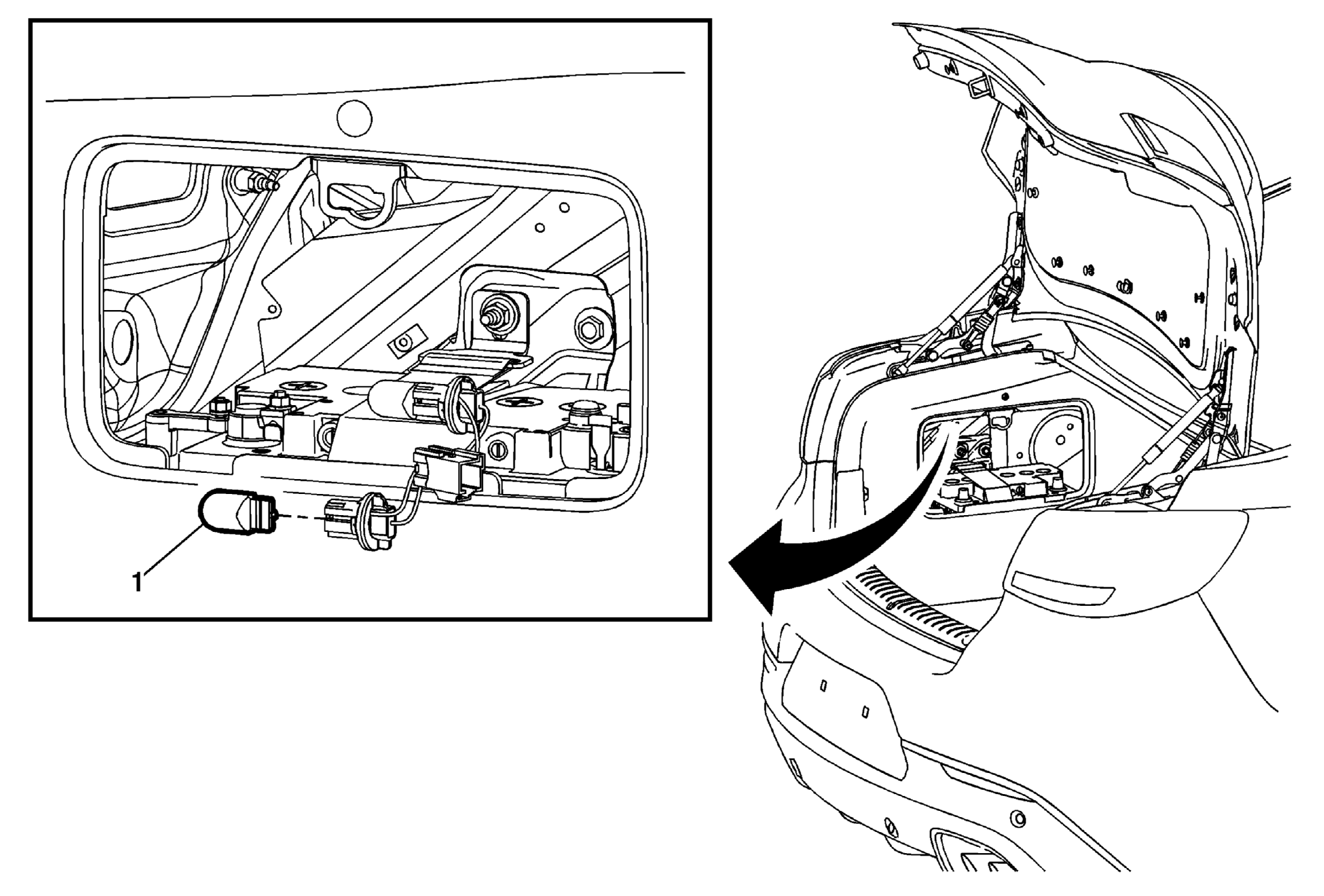

Fig 1: Rear Turn Signal Lamp Bulb (Outboard, Left Side)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the rear lamp wiring harness. Refer to Rear Lamp Wiring Harness Replacement (Inboard) Rear Lamp Wiring Harness Replacement (Outboard, Left Side) Rear Lamp Wiring Harness Replacement (Outboard, Right Side) .
1	Turn Signal Bulb Procedure  Pull the turn signal bulb straight out from the rear lamp wiring harness.
