Removal Procedure

  1. Remove the rear seat cushion. Refer to Rear Seat Cushion Removal and Installation .
  2. Remove the rear seat back. Refer to Rear Seat Back Cushion Removal and Installation (Split Folding Side Cushion Sedan) Rear Seat Back Cushion Removal and Installation (Split Folding Center Cushion Sedan) Rear Seat Back Cushion Removal and Installation (Fixed Back) .
  3. Place seat back face down on a suitable work surface.

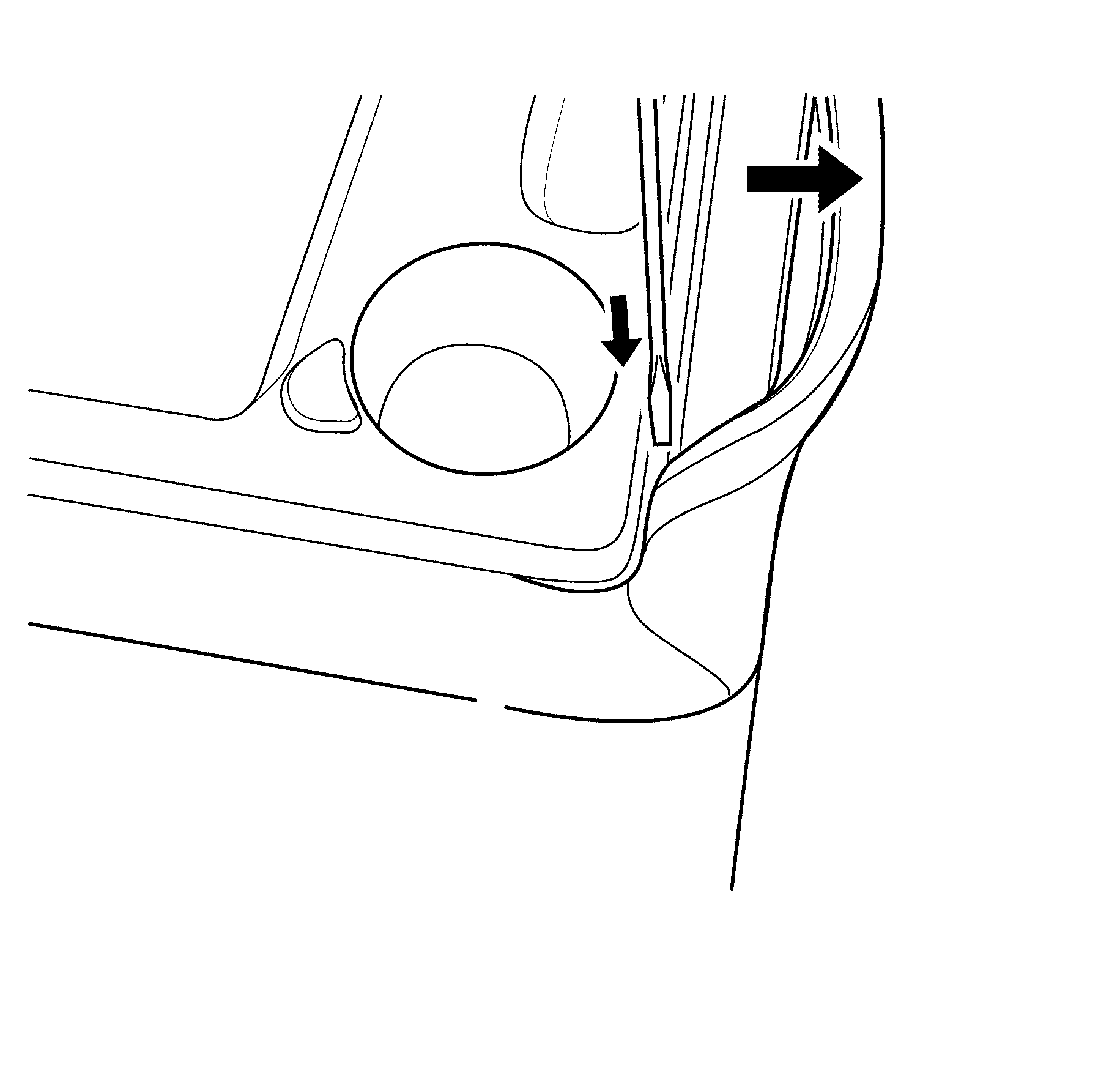

    4. Fig 1: View Of Seat Back Cover & Base
    GM1943532Courtesy of GENERAL MOTORS COMPANY
  4. Detach the seat back cover from the seat back base as shown in illustration.
  5. Turn the rear seat back over on the base.
  6. Remove the rear seat back cover.
