Installation Procedure

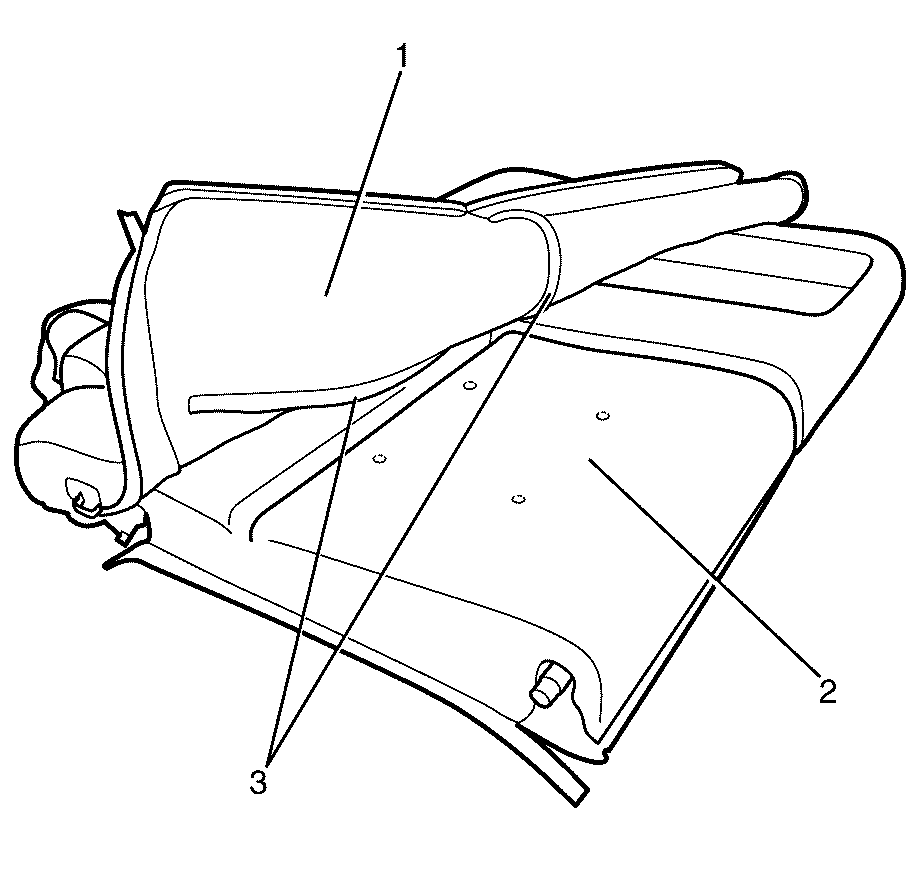

    Fig 1: Right Rear Seat Back Assembly, Cover & Velcro(TM) Strips
    GM2075357Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Make sure that the velcro™ strips (3) are located correctly. Failure to comply may result in the incorrect installation of the right rear seat back cover (1).

    NOTE:

    Make sure that the right rear seat back cover (1) fits tightly without creasing, over the right rear seat back assembly (2).

  1. Install the right rear seat back cover (1) to the right rear seat back assembly (2). Attach the velcro™ strips (3) to the right rear seat back assembly (2).

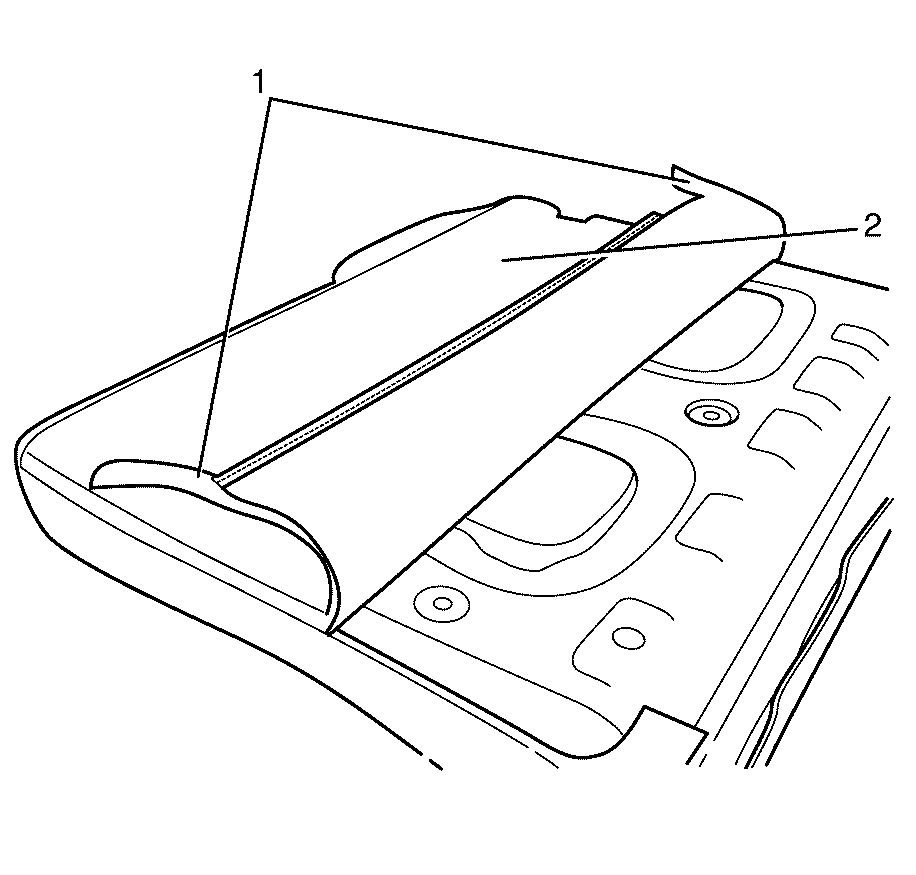

    2. Fig 2: Right Rear Seat Back Cover & Zipper
    GM2074307Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Conceal the zipper ends behind the right rear seat back cover (2). Failure to comply may result in damage to the right rear seat back cover zippers.

  2. Zip up the right rear seat back cover zipper (1).
    3. Fig 3: Rear Seat Back Retaining Strip Components
    GM2074306Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Care must be taken not to damage the right rear seat back cover front retaining strip (1) and the right rear seat back cover rear retaining strip (2) when engaging them into the right rear seat back cover retaining strip channel (3).

  3. Using a suitable tool engage the right rear seat back cover front retaining strip (1) into the right rear seat back retaining strip channel (3).
  4. Using a suitable tool engage the right rear seat back cover rear retaining strip (2) into the right rear seat back retaining strip channel (3).
    5. Fig 4: Center Rear Seat Belt, Guide Trim & Seat Back Assembly
    GM2074305Courtesy of GENERAL MOTORS COMPANY
  5. Install the centre rear seatbelt (2) to the centre rear seatbelt guide trim (1).
  6. Install the centre rear seatbelt guide trim (1) to the rear seat back assembly (3).

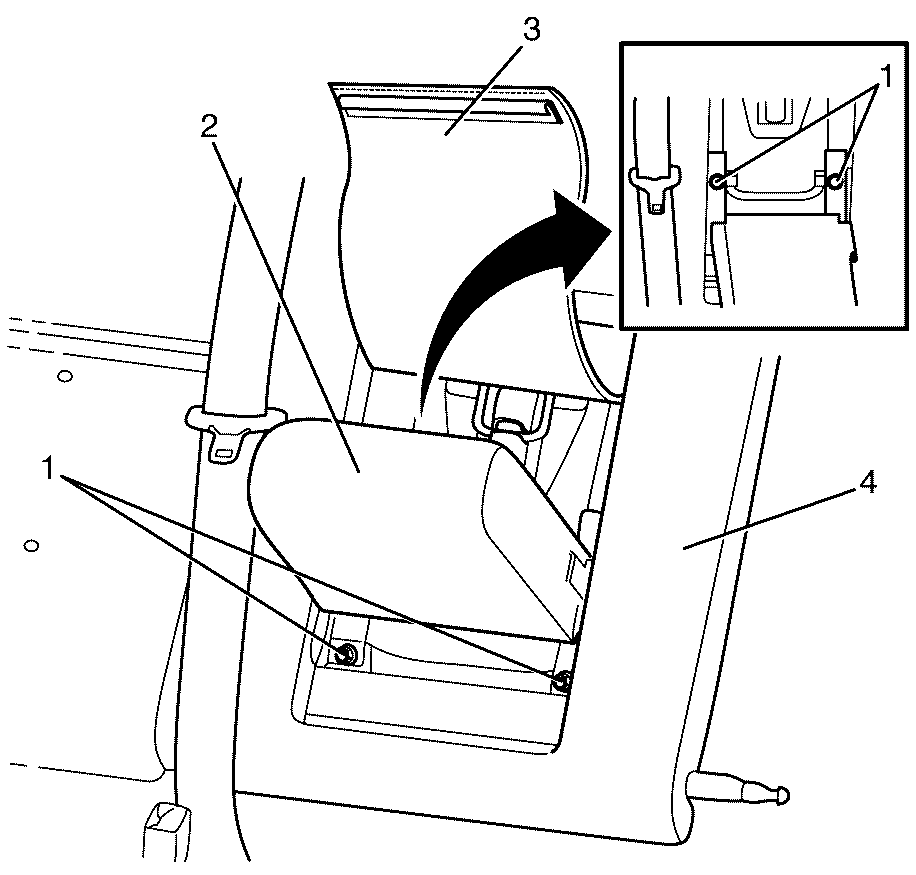

    7. Fig 5: Right Rear Seat Back Assembly & Frame Components
    GM2075353Courtesy of GENERAL MOTORS COMPANY
  7. Install the right rear seat back armrest assembly (2) to the right rear seat back assembly (4).
    8. CAUTION:

    Refer to Fastener Caution .

  8. Install the right rear seat back armrest to right rear seat back frame retaining bolts (1).

    Tighten

    Tighten the bolts to 4 N.m (35 lb in).

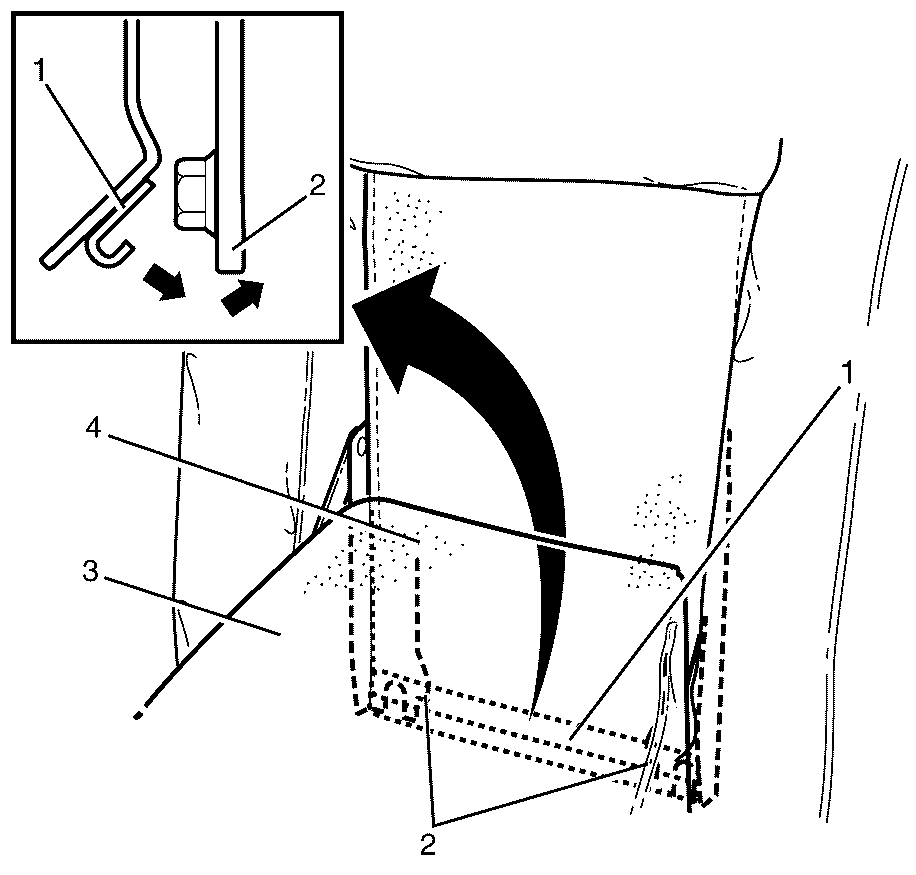

    9. Fig 6: Right Rear Seat Back Assembly Components
    GM2075362Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Adjust the armrest (3) to a suitable position to access the right rear seat back cover retainer (1).

  9. Carefully pull down on the right rear seat back cover retainer (1) and attach the trim flap (4) to the trim flap retainer (2).

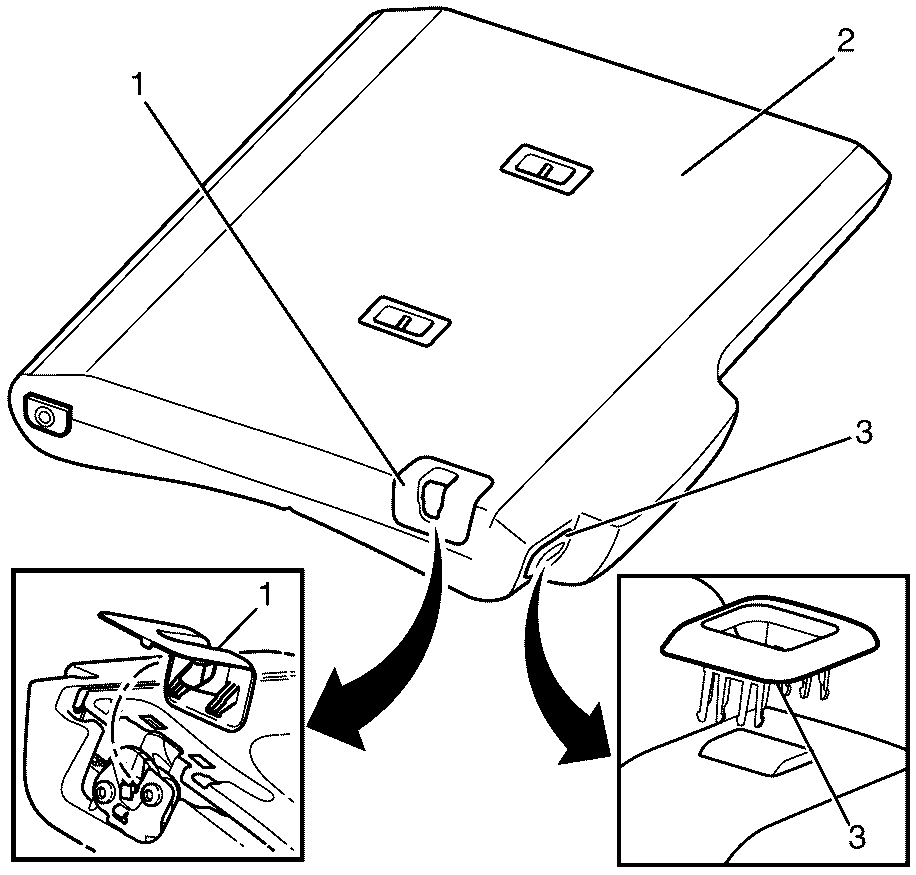

    10. Fig 7: Right Rear Seat Back Assembly, Latch Trim & Release Button Covers
    GM2116406Courtesy of GENERAL MOTORS COMPANY
  10. Attach the right rear seat back latch release button cover (3) to the right rear seat back assembly (2).
  11. Attach the right rear seat back latch trim cover (1) to the right rear seat back assembly (2).

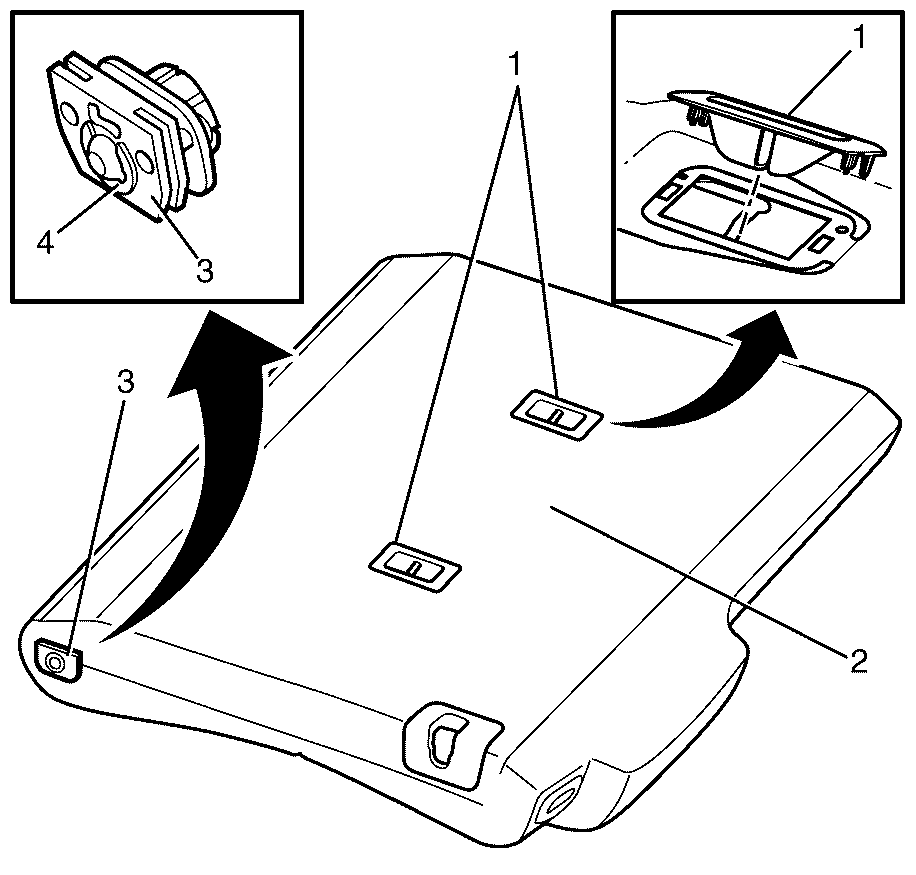

    12. Fig 8: Rear Seat Back & Pivot Retainer Assembly Components
    GM2074304Courtesy of GENERAL MOTORS COMPANY
  12. Attach the pivot retainer assembly (3) to the right rear seat back assembly (2).
  13. Attach the circlip (4) to the pivot retainer assembly (3).
  14. Attach the right rear seat back child restraint tether anchor covers (1) to the right rear seat back assembly (2).
  15. Install the rear seat back cushion. Refer to Rear Seat Back Cushion Removal and Installation (Split Folding Side Cushion Sedan) Rear Seat Back Cushion Removal and Installation (Split Folding Center Cushion Sedan) Rear Seat Back Cushion Removal and Installation (Fixed Back) .
    Fig 9: Right Rear Seat Belt Buckle & Nut
    GM2121489Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Make sure the right rear seat belt buckle is parallel to vehicle centreline as shown.

  16. Install the right rear seat belt buckle (1).
    17. CAUTION:

    Refer to Fastener Caution .

  17. Install the right rear seat belt buckle nut (2).

    Tighten

    Tighten the nut to 40 N.m (30 lb ft).

  18. Install the rear seat cushion. Refer to Rear Seat Cushion Removal and Installation .
