Installation Procedure

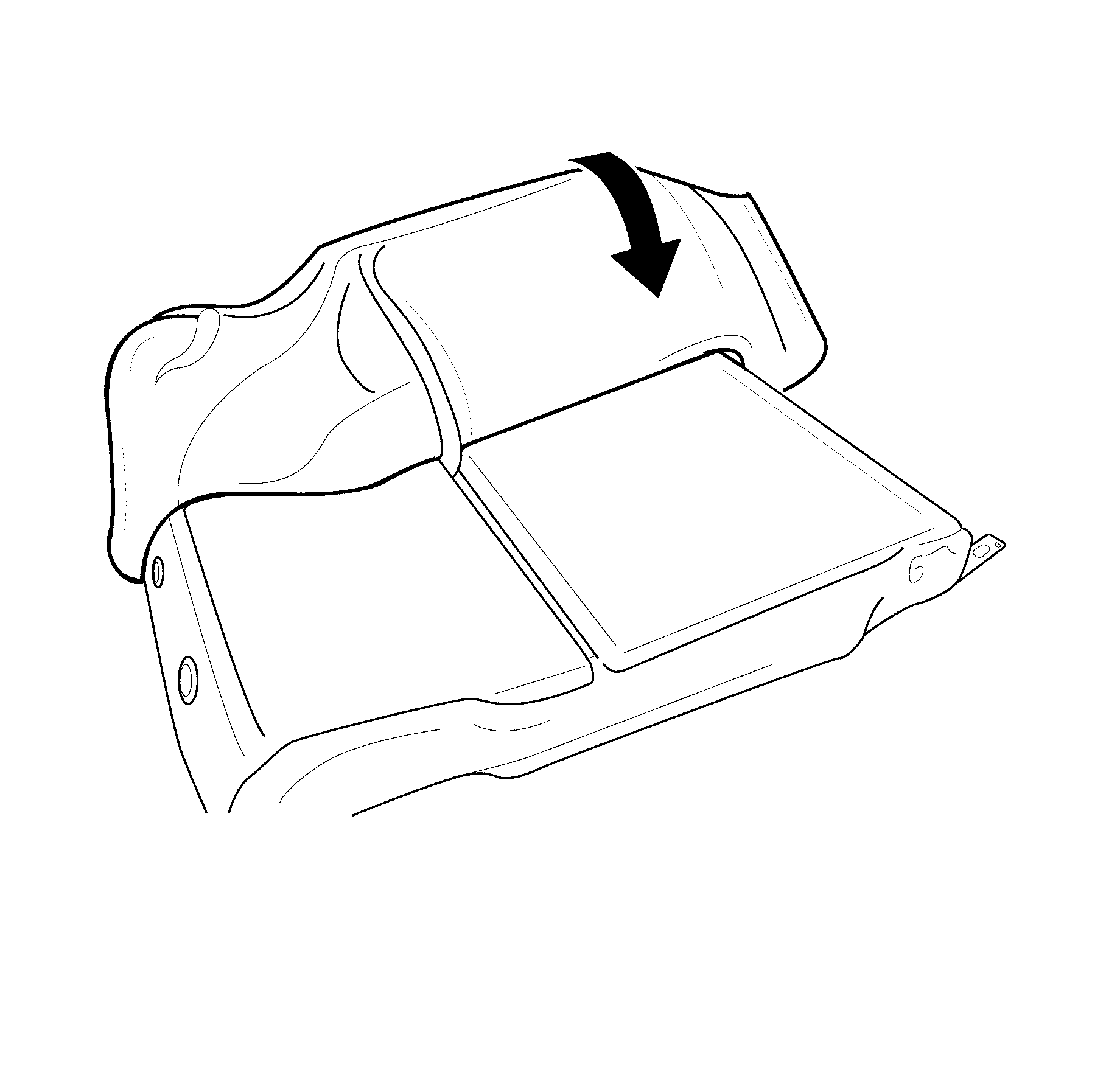

    Fig 1: Rear Seat Back Cover
    GM1943531Courtesy of GENERAL MOTORS COMPANY
  1. Align the aplix with the rear seat back cover.
  2. Install the rear seat back cover.
  3. Turn the rear seat back over on its front.

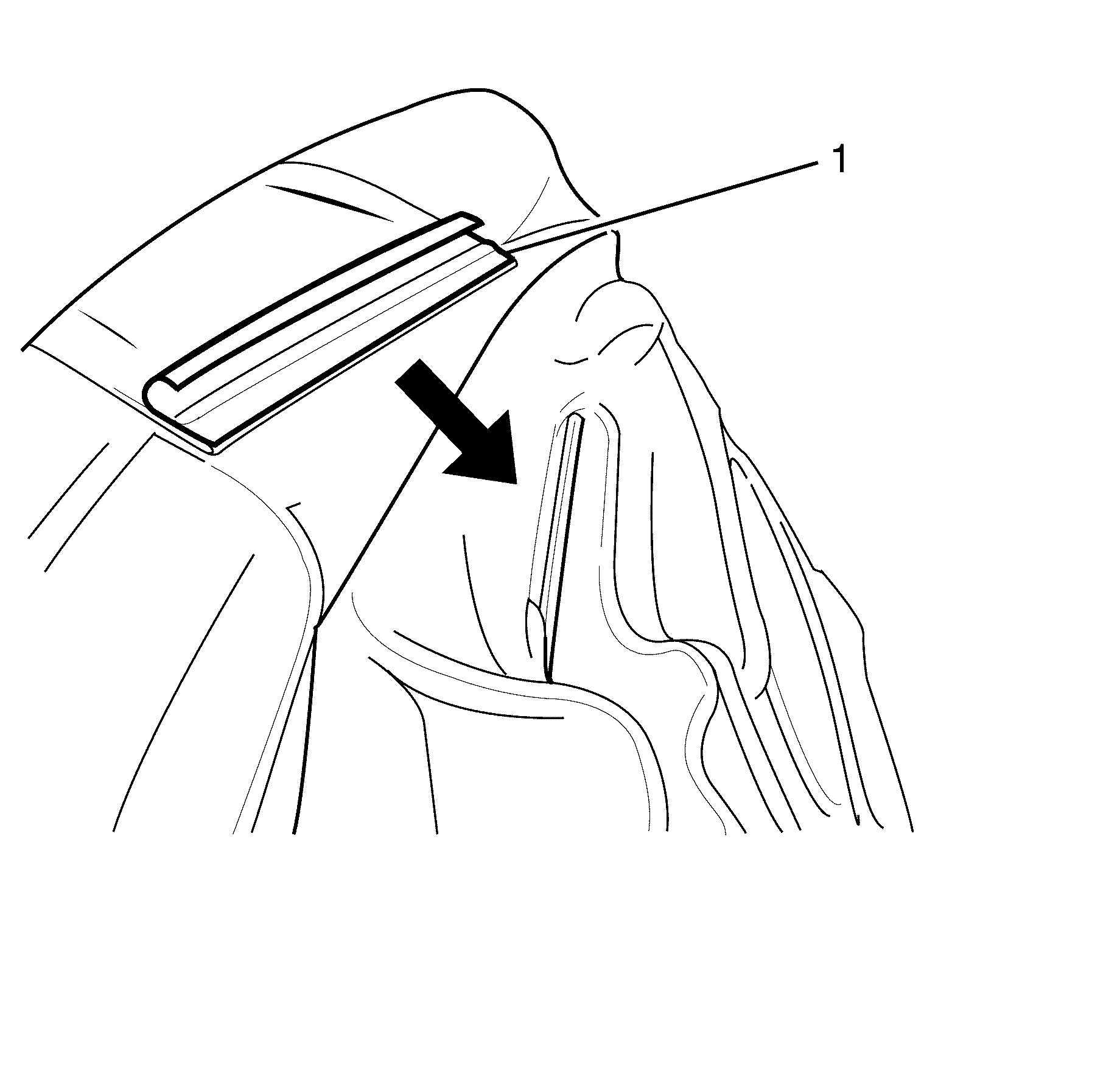

    4. Fig 2: Seat Back Frame Retaining J-Strips
    GM1943528Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    When installing the rear seat cover, pull the cover tight in all corners to ensure no lumps will occur.

  4. Attach the rear seat back cover to rear seat back pad and frame retaining J-strips (1).
  5. If fitted, install the rear seat head restraints. Refer to Rear Seat Head Restraint Replacement .
  6. Install the rear seat back cushion. Refer to Rear Seat Back Cushion Removal and Installation (Split Folding Side Cushion Sedan) Rear Seat Back Cushion Removal and Installation (Split Folding Center Cushion Sedan) Rear Seat Back Cushion Removal and Installation (Fixed Back) .
  7. Install the rear seat cushion. Refer to Rear Seat Cushion Removal and Installation .
