Rear Side Door Upper Cover Replacement

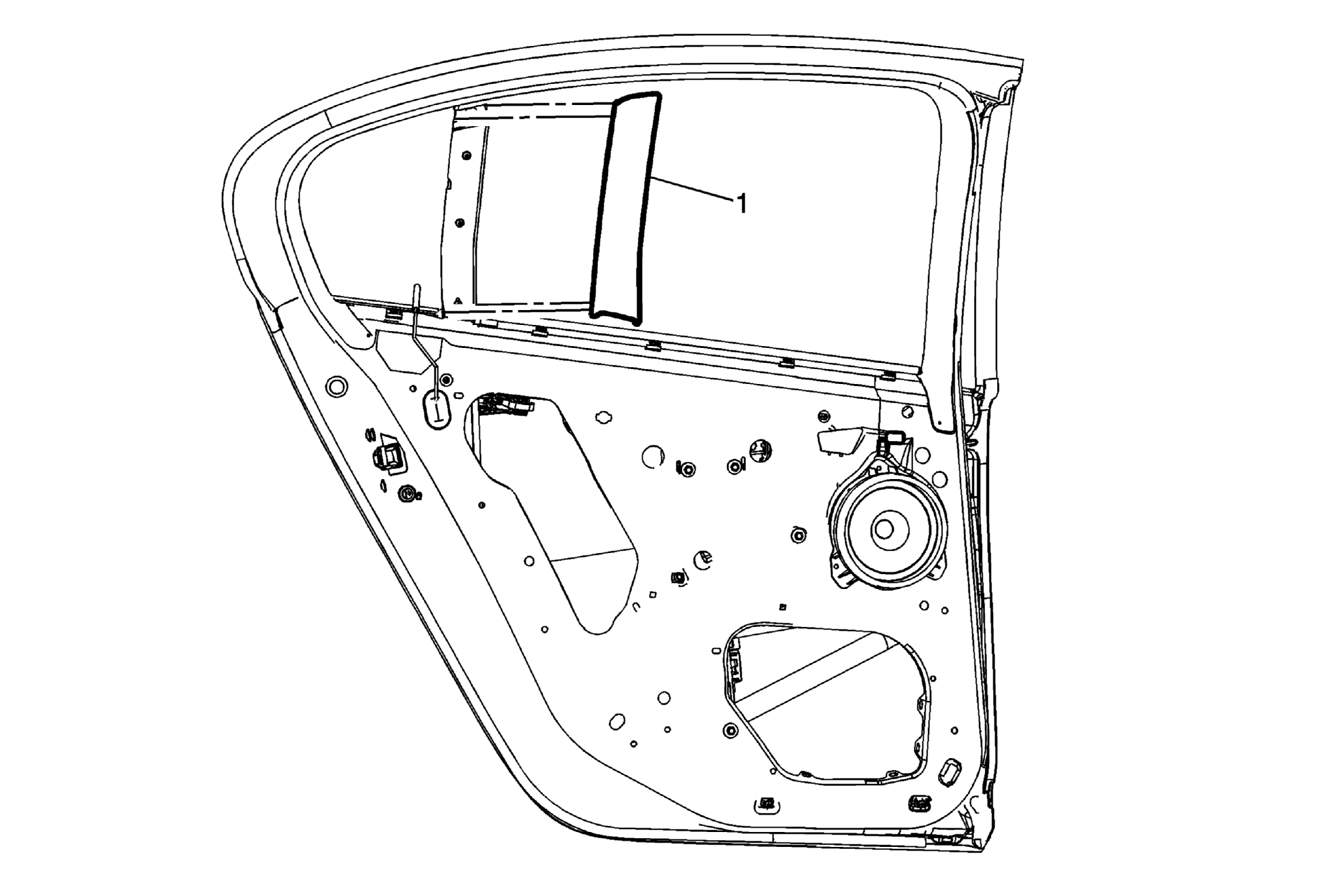

Fig 1: Rear Side Door Upper Cover

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear side door upper auxiliary weatherstrip. Refer to Front or Rear Side Door Upper Auxiliary Weatherstrip Replacement (Front) Front or Rear Side Door Upper Auxiliary Weatherstrip Replacement (Rear) . Remove the rear side door trim. Refer to Rear Side Door Trim Replacement .
1	Rear Side Door Upper Cover Procedure Using a suitable tool, remove the rear side door upper cover from the door frame. NOTE: Inspect the door for proper operation before installing the door trim.

Callout

Component Name

Preliminary Procedures

Rear Side Door Upper Cover
Procedure
Using a suitable tool, remove the rear side door upper cover from the door frame.

NOTE:

Inspect the door for proper operation before installing the door trim.
