Rear Side Door Trim Replacement

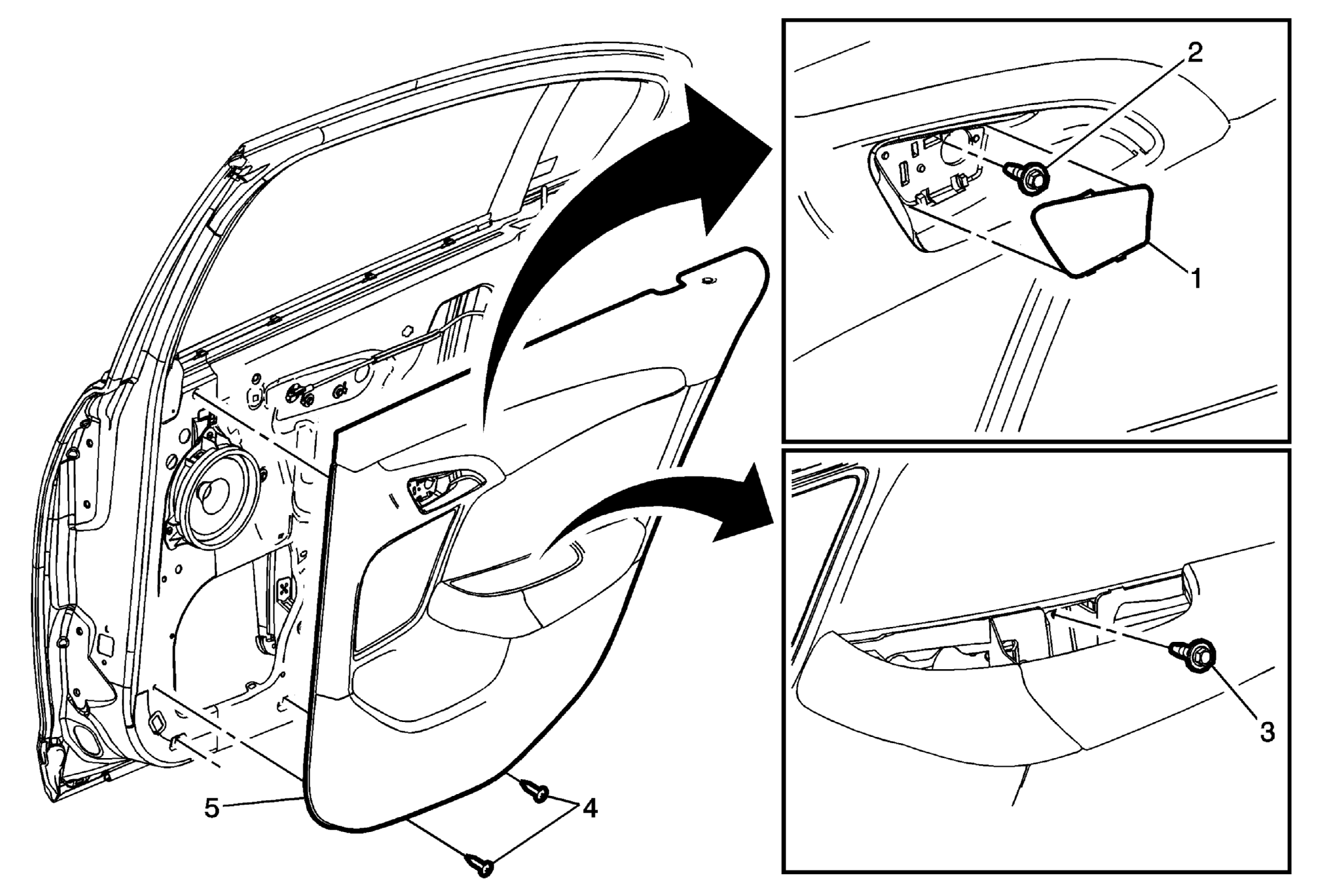

Fig 1: Rear Side Door Trim

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear side door accessory switch mount plate. Refer to Rear Side Door Accessory Switch Mount Plate Replacement .
1	Rear Side Door Inside Handle Bolt Cap Procedure Use a suitable tool to remove rear side door inside handle bolt cap.
2	Rear Side Door Inside Handle Fastener CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
3	Rear Side Door Armrest Pull Cup Fastener Tighten 2.5 N.m (22 lb in)
4	Rear Side Door Trim Panel Fastener (Qty: 2) Tighten 2.5 N.m (22 lb in)
5	Rear Side Door Trim Assembly Procedure Use the appropriate plastic trim tool to disengage clips from bottom to top of door trim panel in cross car direction. Plastic clips on the back of door trim panel must be replaced each time door trim panel is removed and put back on. Pull upwards on the door lock retainer cable to disengage. Disconnect the electrical connector, if equipped.
