Engine Support Fixture

WARNING: This page is about a different variant/trim than selected.

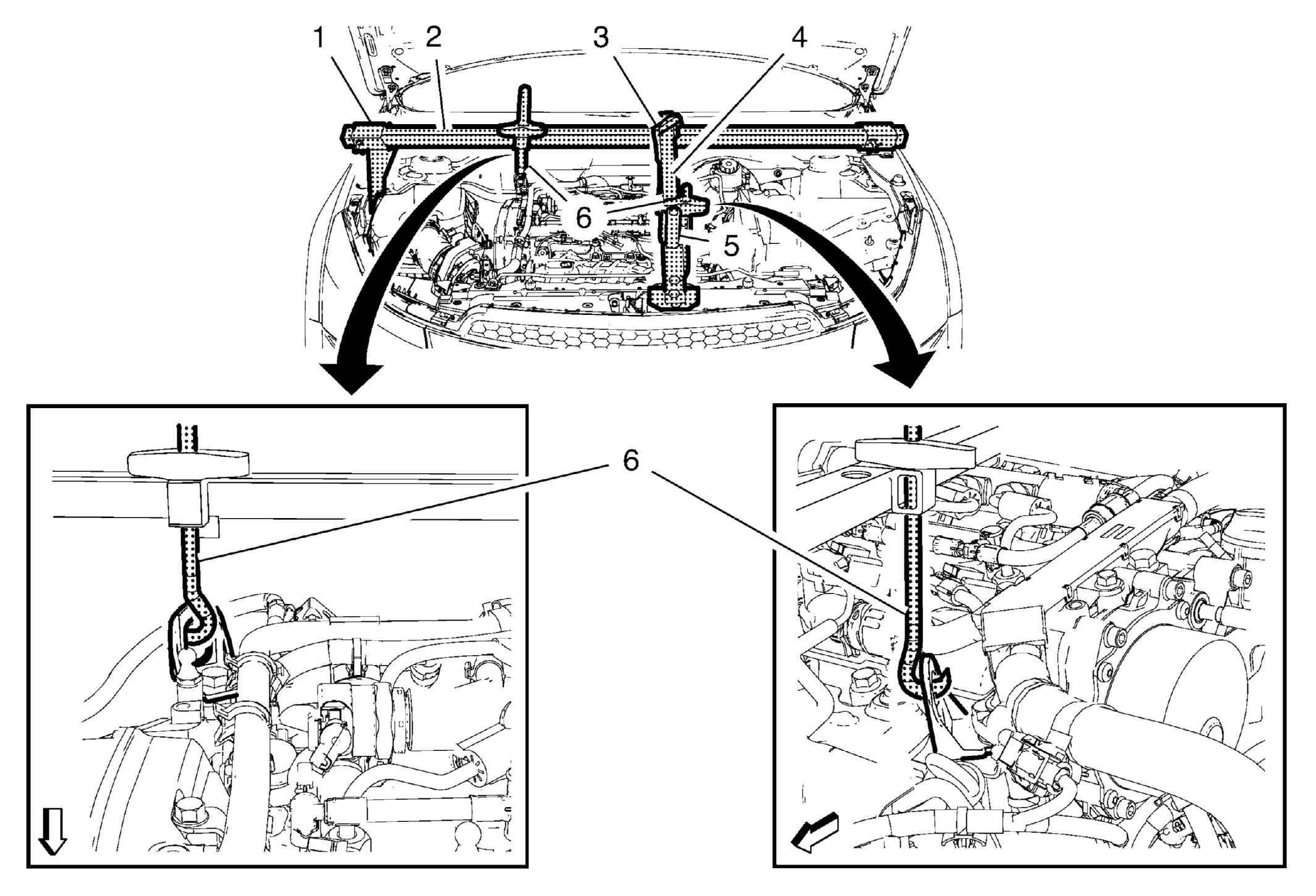

Fig 1: Installing Engine Support Fixture

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front fender shipping cover. Refer to Front Fender Shipping Cover Replacement . Remove the engine sight shield. Refer to Engine Sight Shield Replacement . Special Tools J-43405 Engine Support Fixture Adapter J-28467-518 Main Support Beam J-28467-1A Cross Bracket J-28467-5A Strut Tower Support Assembly J-28467-2A Radiator Tube Shelf Assembly J-36857 Engine Lift Bracket J-28467-8A Hook Assembly For equivalent regional tools, refer to Special Tools .
1	Engine Support Fixture Adapter Leg (Qty: 2) Procedure Install the bracket to fender frame. Do not install on top of fender lip.
2	Main Support Beam
3	Cross Bracket
4	Strut Tower Support Assembly Procedure Adjust the length of the strut tower support assembly.
5	Radiator Tube Shelf Assembly
6	Hook Assembly Procedure Use a grade 10.9 bolt to install the engine lift bracket. NOTE: If the engine is not equipped with engine lift bracket, install the J-36857 engine support fixture in place.
