Engine Sight Shield Replacement

WARNING: This page is about a different variant/trim than selected.

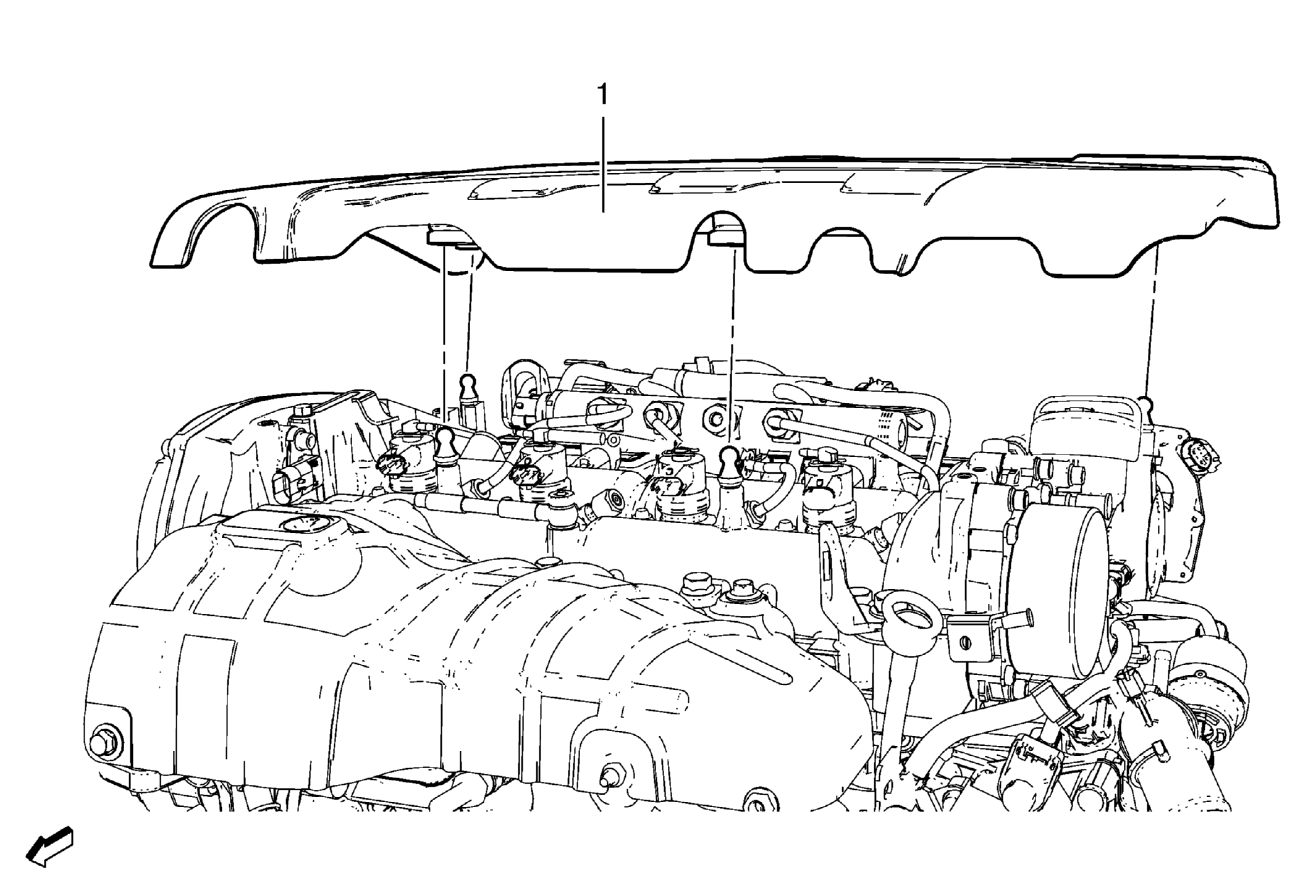

Fig 1: Engine Sight Shield
GM2190195Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Open the hood.
1 Engine Sight Shield
Procedure
Release the engine sight shield retainers by pulling the engine sight shield upwards.
