Special Tools
WARNING: This page is about a different variant/trim than selected.
| Illustration | Tool Number/Description |
|---|---|
| GE-02619-A J-02619-A Slide Hammer (used with EN-51256 Injector Remover Adapter Set) |
|
| DT-48254 Seal Ring Installer |
|
| EN-956-1 KM-956-1 Tool Extension |
|
| EN-6104 Glow Plug Socket |
|
| EN-6015 KM-6015 Closure Plugs |
|
| EN-6171 KM-6171 Release Tool |
|
| EN-6130 KM-6130 Locking Pin |
|
| EN-6347 KM-6347 Sprocket Holder |
|
| EN-46745 Piston Pin Clip Remover/Installer |
|
| EN-46780 Seal Ring Installer |
|
| EN-46783 Thread Adapter |
|
| EN-46789 32 025 008 Fixing Tool |
|
| EN-46789-100 32 025 008 Fixing Tool |
|
| EN-46790 32 025 005 Sprocket Remover |
|
| EN-46792 Flywheel Holder |
|
| EN-47633 Compression Gauge Adapter |
|
| EN-47633-10 Compression/Leak-Down Adapter |
|
| EN-47634 Sprocket Holding Tool |
|
| EN-47655 Injector Checking Kit |
|
| EN-47909 Injector Bore and Sleeve Cleaning Kit |
|
| EN-48390 Glow Plug Remover / Installer |
|
| EN-50956 GR-6 Arnold Drive Bit |
|
| EN-45059 J 45059 Angle Meter |
|
| EN-49826 Fixation tool high-pressure pump sprocket |
|
| EN-6086 MKM-6086 Basic Kit, Spring and Wedge Replacer |
|
| EN-46779 Valve Stem Seal Installer |
|
| EN-46116 83 94 157 Pliers Remover |
|
| EN-849 KM-849 Assembly Tray |
|
| EN-26999 J 26999 Compression Gauge |
|
| EN-37228 J 37228 KM-J-37228 Seal Cutter |
|
| EN-498-B J-21867-850 KM-498-B Adapter, Oil Pressure |
|
| EN-45000 J 45000 Seal Remover |
|
| EN-6167 KM-6167 Counter Holder Adapter Set |
|
| EN-28467-B J-28467-B Universal Engine Support Fixture |
|

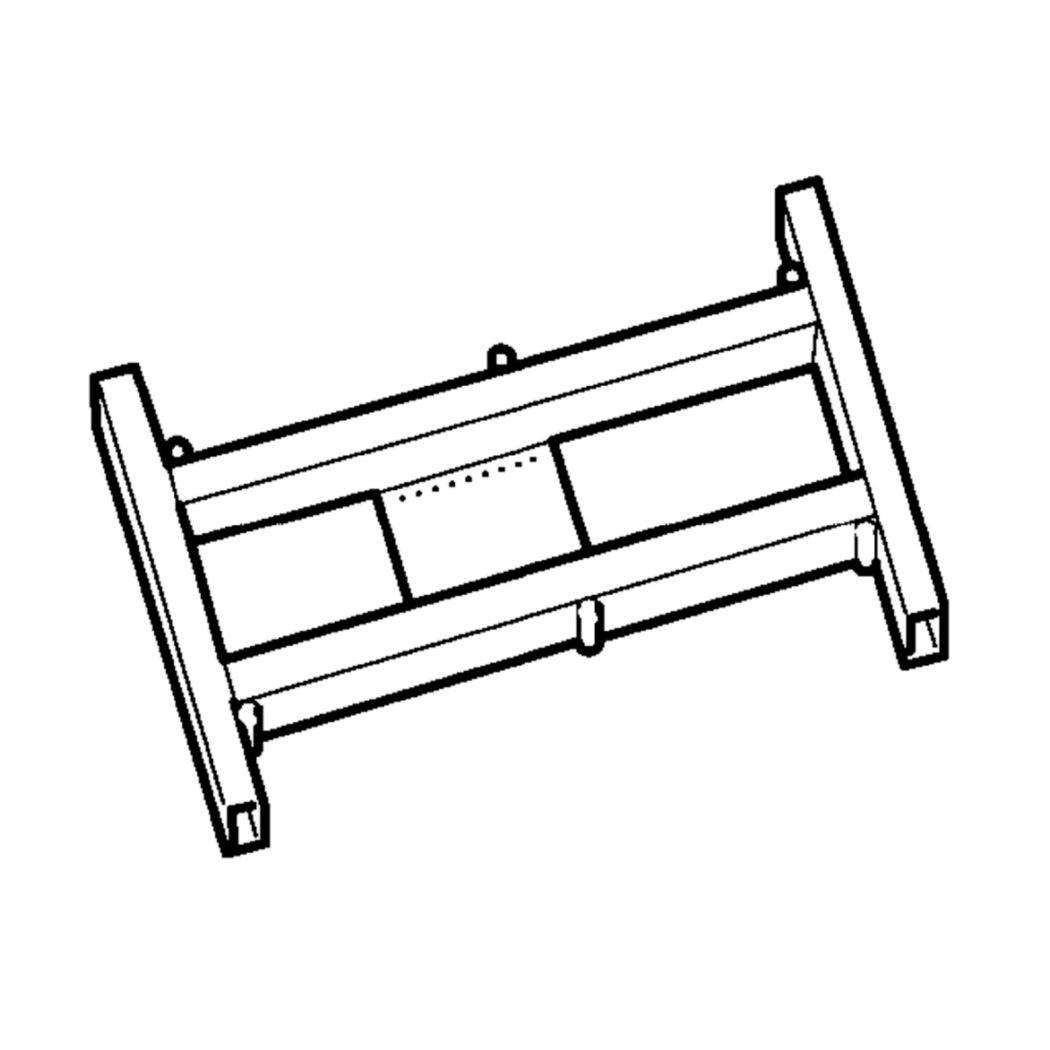

| CH-904 KM-904 83 95 188 Base Frame |
|
| EN-46788 32 025 009 Fixing Tool, Crankshaft |
|
| EN-46793 32 025 014 Fitting Tool, Oil Pump Seal |
|
| EN-47630 32 025 006 Holder, Crankshaft |
|
| GE-7872 J-7872 Magnetic Base Dial Indicator |
|
| GE-596-A MKM-596-A Temperature Measurement Instrument |
|
| EN-6627 MKM-6627 Ribe Key Box |
|
| EN-50717-1 Stands |
|
| EN-50717-2 Compressor |
|
| EN-8062 J-8062 Valve Spring Compressor |
|
| EN-43405 J-43405 Support Foot Set |
|
| EN-51256 Injector Remover Adapter Set |
|
| J-35566 Boot Clamp Pliers |
