Belt Idler Pulley Bracket Replacement

WARNING: This page is about a different variant/trim than selected.

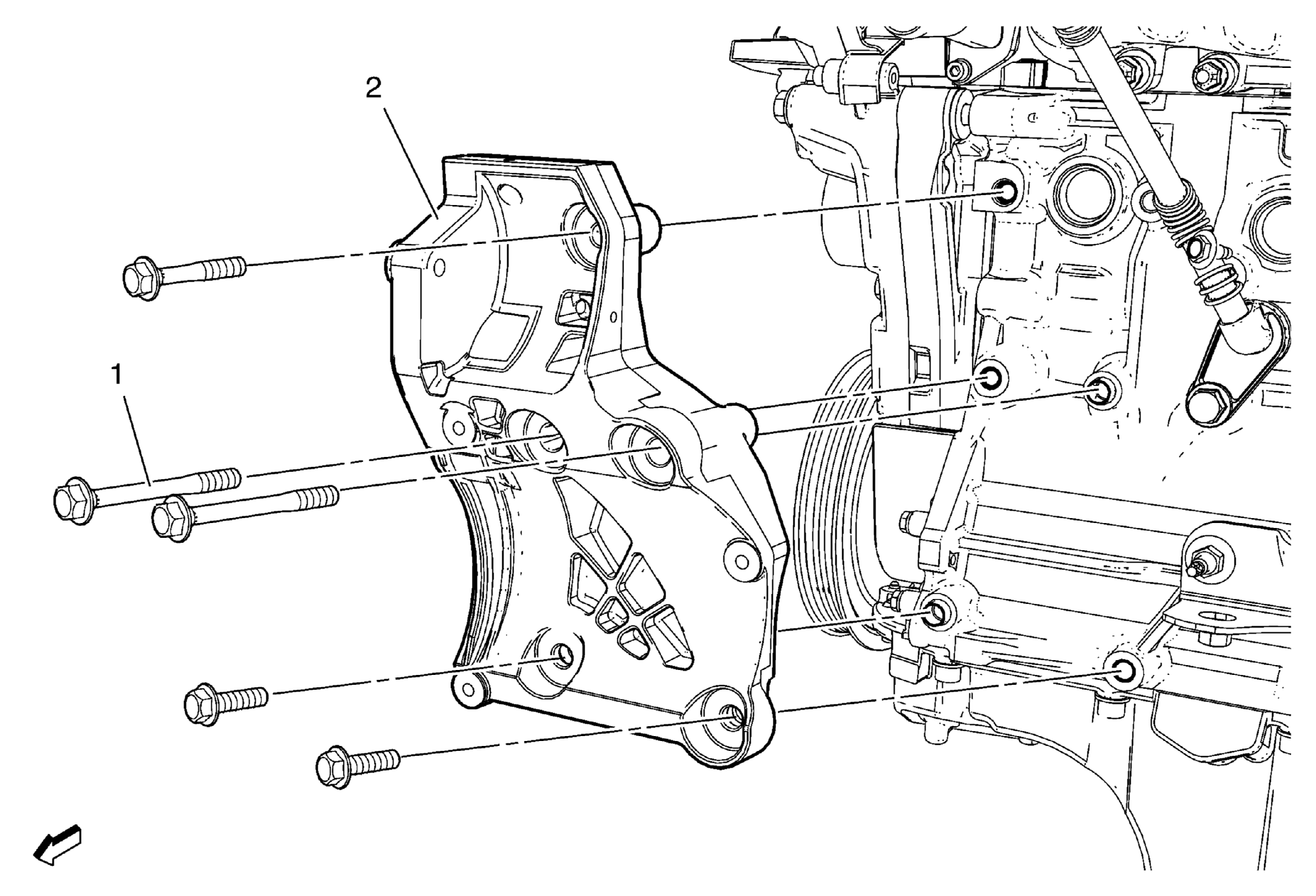

Fig 1: Belt Idler Pulley Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Open the hood. Remove the air conditioning compressor. Refer to Air Conditioning Compressor Replacement (2.0L Diesel LUZ) . Remove the belt idler pulley - pulley side. Refer to Belt Idler Pulley Replacement - Pulley Side . Remove the drive belt tensioner. Refer to Drive Belt Tensioner Replacement .
1	Belt Idler Pulley Bracket Bolt (Qty: 5) CAUTION: Refer to Fastener Caution . Tighten 50 N.m (37 lb ft) TIP: Mark the position of the bolts because of the different length.
2	Belt Idler Pulley Bracket

Callout

Component Name

Preliminary Procedures

Open the hood.
Remove the air conditioning compressor. Refer to Air Conditioning Compressor Replacement (2.0L Diesel LUZ) .
Remove the belt idler pulley - pulley side. Refer to Belt Idler Pulley Replacement - Pulley Side .
Remove the drive belt tensioner. Refer to Drive Belt Tensioner Replacement .

Belt Idler Pulley Bracket Bolt (Qty: 5)

CAUTION: Refer to Fastener Caution .

Tighten
50 N.m (37 lb ft)
TIP: Mark the position of the bolts because of the different length.

Belt Idler Pulley Bracket
