Drive Belt Tensioner Replacement

WARNING: This page is about a different variant/trim than selected.

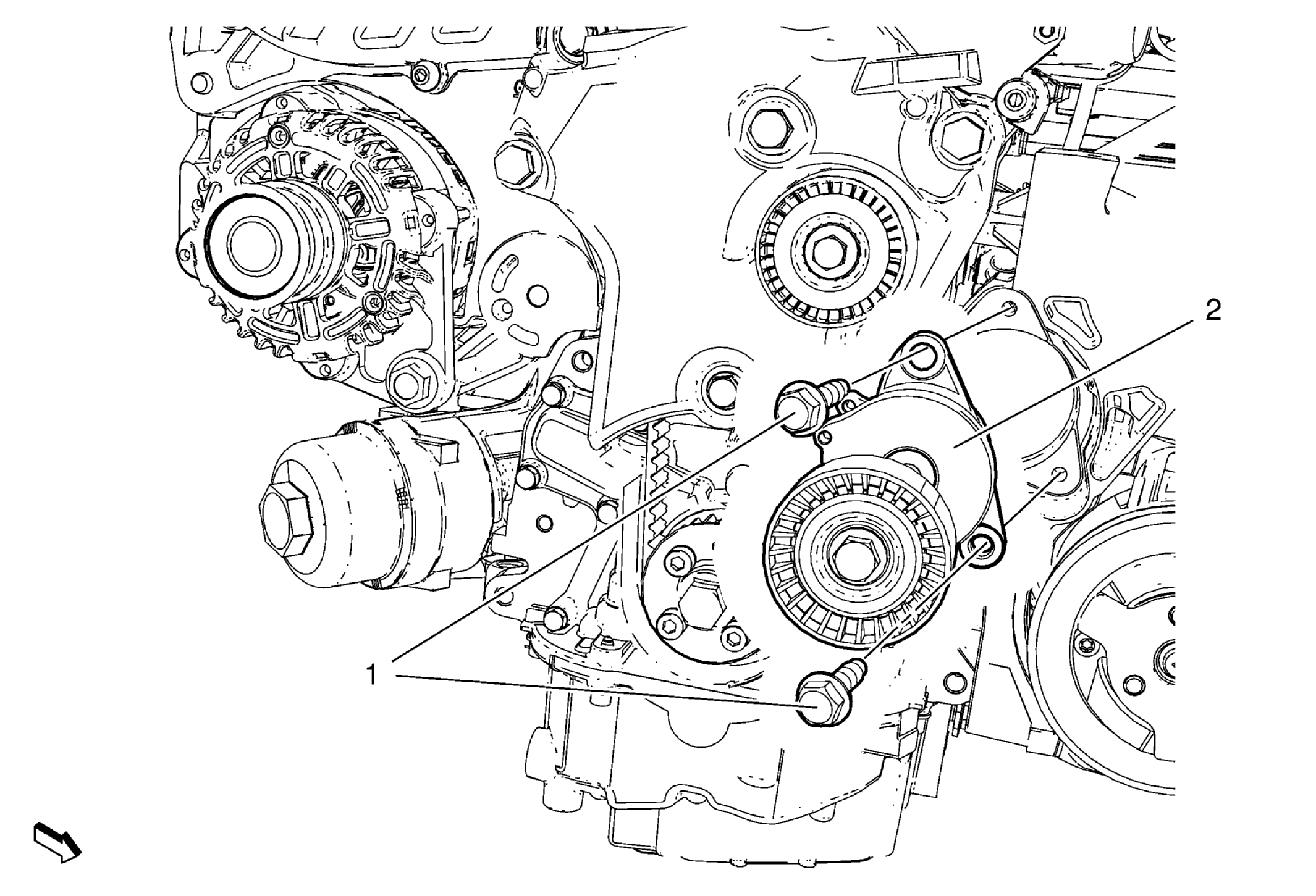

Fig 1: Drive Belt Tensioner

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Open the hood. Remove the generator, air conditioning compressor and power steering pump belt. Refer to Generator, Air Conditioning Compressor and Power Steering Pump Belt Replacement .
1	Drive Belt Tensioner Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
2	Drive Belt Tensioner Procedure Remove the EN-48952 holding pin from the old one and install it to the new tensioner. Special Tools EN-48952 Tensioner Spring Holding Pin For equivalent regional tools, refer to Special Tools .

Callout

Component Name

Preliminary Procedures

Open the hood.
Remove the generator, air conditioning compressor and power steering pump belt. Refer to Generator, Air Conditioning Compressor and Power Steering Pump Belt Replacement .

Drive Belt Tensioner Bolt (Qty: 2)

CAUTION: Refer to Fastener Caution .

Tighten
22 N.m (16 lb ft)

Drive Belt Tensioner
Procedure
Remove the EN-48952 holding pin from the old one and install it to the new tensioner.
Special Tools
EN-48952 Tensioner Spring Holding Pin
For equivalent regional tools, refer to Special Tools .
