Transmission Fluid Auxiliary Cooler Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

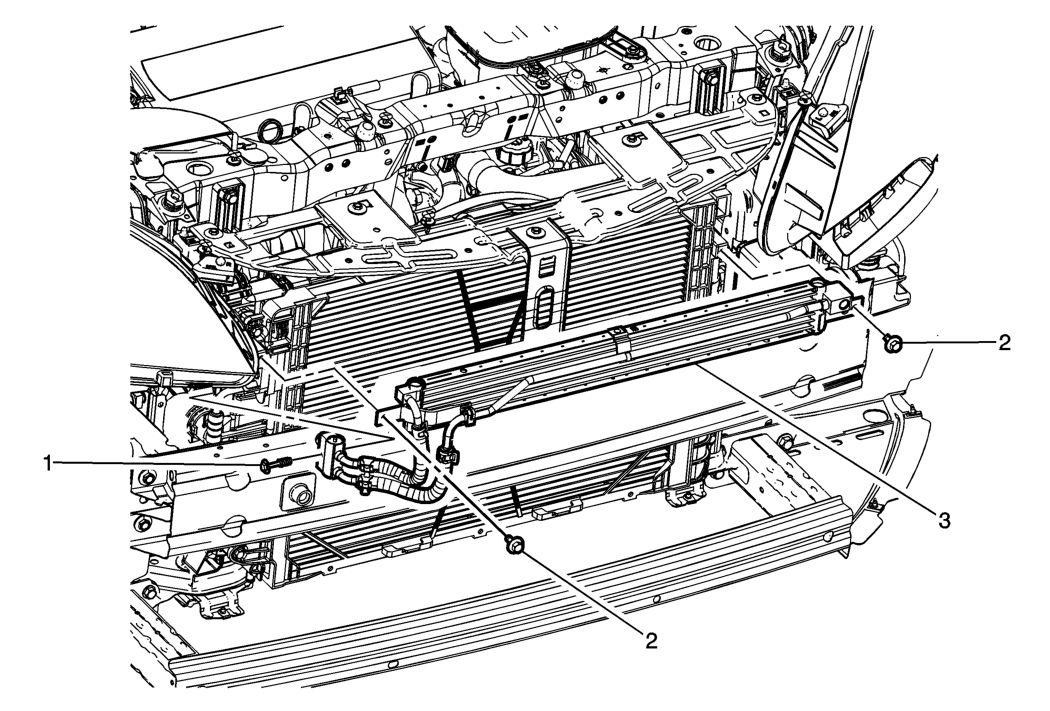

Fig 1: Transmission Fluid Auxiliary Cooler

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front bumper fascia assembly. Refer to Front Bumper Fascia Replacement (Trax)Front Bumper Fascia Replacement (Encore) . Remove the air cleaner inlet duct. Refer to Air Cleaner Inlet Duct Replacement . Disconnect the transmission fluid cooler outlet pipe from the transmission fluid auxiliary cooler. Refer to Transmission Fluid Cooler Outlet Pipe Replacement . Remove the transmission fluid cooler inlet pipe from the transmission fluid auxiliary cooler. Refer to Transmission Fluid Cooler Inlet Pipe Replacement . Remove the radiator air upper baffle and deflector. Refer to Radiator Air Upper Baffle and Deflector Replacement (LUV) .
1	Transmission Fluid Auxiliary Cooler Fastener CAUTION: Refer to Fastener Caution . Tighten 8 N.m (71 lb in)
2	Transmission Fluid Auxiliary Cooler Fastener (Qty: 2) Tighten 6 N.m (53 lb in)
3	Transmission Fluid Auxiliary Cooler Procedure Adjust the transmission fluid level. Refer to Transmission Fluid Level and Condition Check . Inspect for fluid leaks.
