Transmission Fluid Cooler Outlet Pipe Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

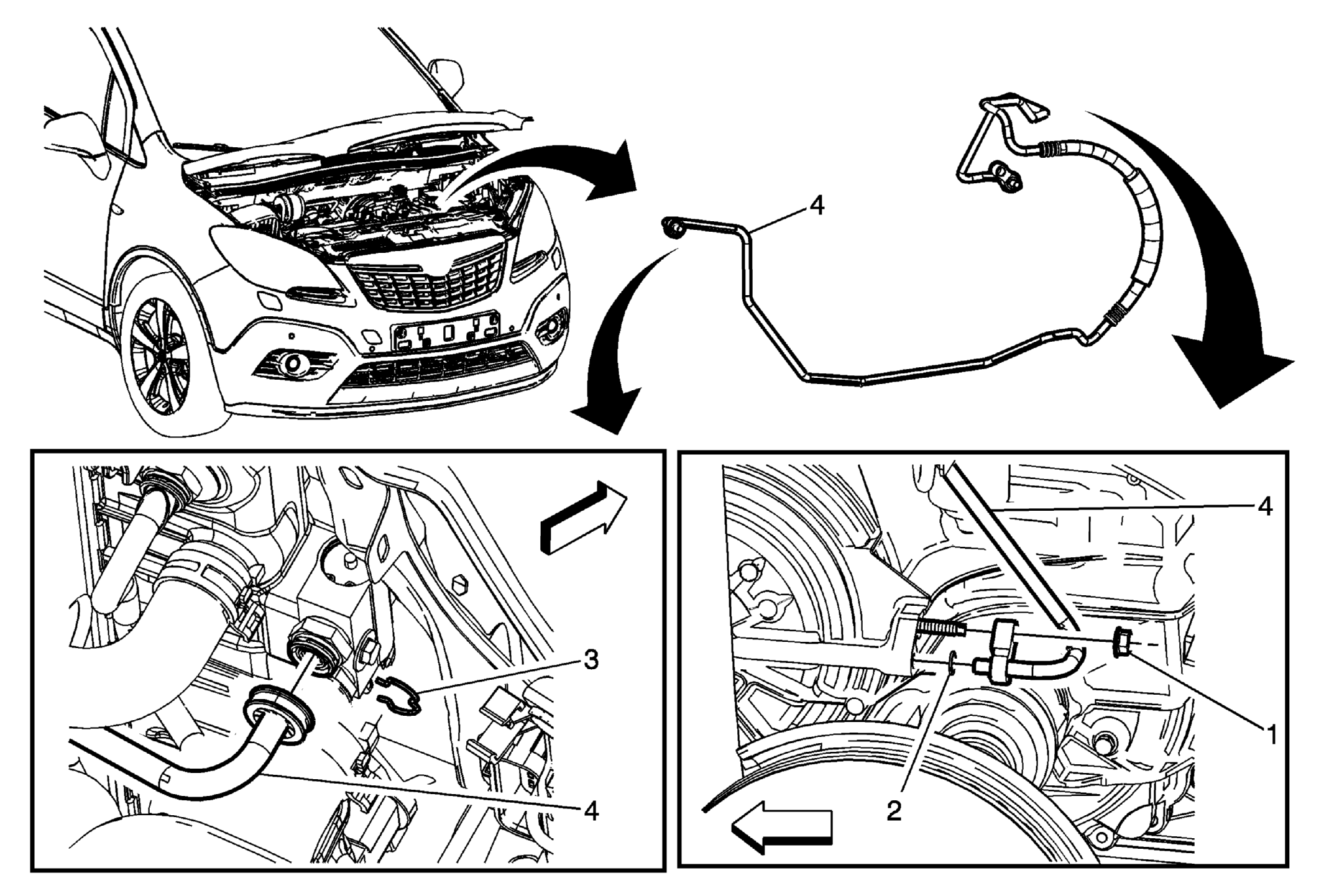

Fig 1: Transmission Fluid Cooler Outlet Pipe

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the air cleaner inlet duct. Refer to Air Cleaner Inlet Duct Replacement . Remove the power steering pump, if equipped. Refer to Power Steering Pump Replacement . Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement (Trax)Front Wheelhouse Liner Replacement (Encore) . Remove the front bumper fascia opening lower cover. Refer to Front Bumper Fascia Opening Lower Cover Replacement (Trax) . Cap the fittings and plug the holes when removing the transmission fluid cooler outlet pipe.
1	Transmission Fluid Cooler Outlet Pipe Nut CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
2	Transmission Fluid Cooler Outlet Pipe Seal Procedure Remove and discard the old sealing washer and replace with NEW.
3	Transmission Fluid Cooler Outlet Pipe Quick Disconnect Retaining Clip Procedure Remove the retaining clip from the quick connect fitting. Refer to Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection .
4	Transmission Fluid Cooler Outlet Pipe Procedure Note the routing of the transmission line to ensure proper installation. Remove the transmission line from the retaining clips. Adjust the transmission fluid level. Refer to Transmission Fluid Level and Condition Check . Inspect for fluid leaks.
