Floor Panel Carpet Replacement (Encore)

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

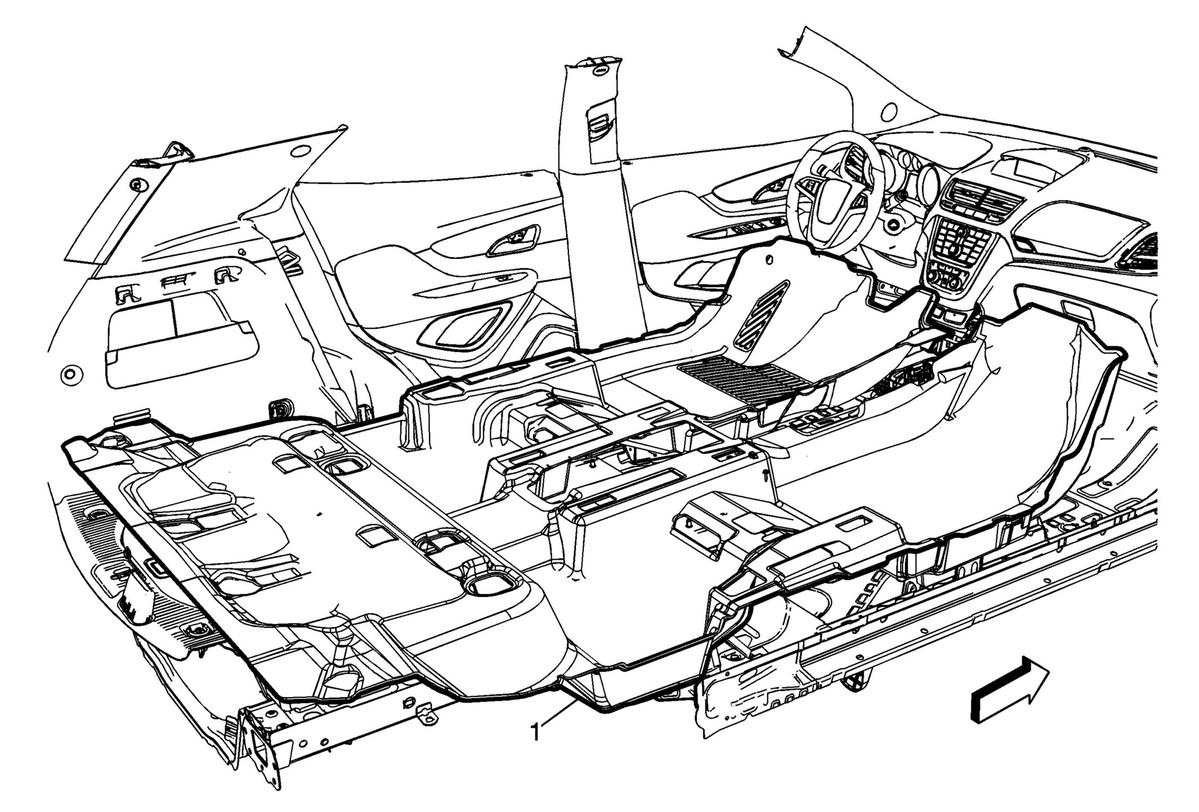

Fig 1: Floor Panel Carpet (Encore)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front seats. Refer to Driver or Passenger Seat Removal and Installation . Remove the rear seat cushion. Refer to Rear Seat Cushion Removal and Installation . Remove the rear seat back cushion. Refer to Rear Seat Back Cushion Removal and Installation (40%)Rear Seat Back Cushion Removal and Installation (60%) . Remove the rear seat shoulder belt anchor bolt. Refer to Rear Seat Belt Retractor Replacement . Remove the front floor console. Refer to Front Floor Console Replacement (Encore) . Remove the floor auxiliary mat lower retainer. Refer to Floor Auxiliary Mat Lower Retainer Replacement (Encore) . Remove the rear side door step mat retainer. Refer to Rear Side Door Step Mat Retainer Replacement . Remove the center pillar lower trim panels. Refer to Center Pillar Lower Trim Panel Replacement (Encore) .
1	Floor Panel Carpet Assembly

Callout

Component Name

Preliminary Procedures

Remove the front seats. Refer to Driver or Passenger Seat Removal and Installation .
Remove the rear seat cushion. Refer to Rear Seat Cushion Removal and Installation .
Remove the rear seat back cushion. Refer to Rear Seat Back Cushion Removal and Installation (40%)Rear Seat Back Cushion Removal and Installation (60%) .
Remove the rear seat shoulder belt anchor bolt. Refer to Rear Seat Belt Retractor Replacement .
Remove the front floor console. Refer to Front Floor Console Replacement (Encore) .
Remove the floor auxiliary mat lower retainer. Refer to Floor Auxiliary Mat Lower Retainer Replacement (Encore) .
Remove the rear side door step mat retainer. Refer to Rear Side Door Step Mat Retainer Replacement .
Remove the center pillar lower trim panels. Refer to Center Pillar Lower Trim Panel Replacement (Encore) .

Floor Panel Carpet Assembly
