Center Pillar Lower Trim Panel Replacement (Encore)

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

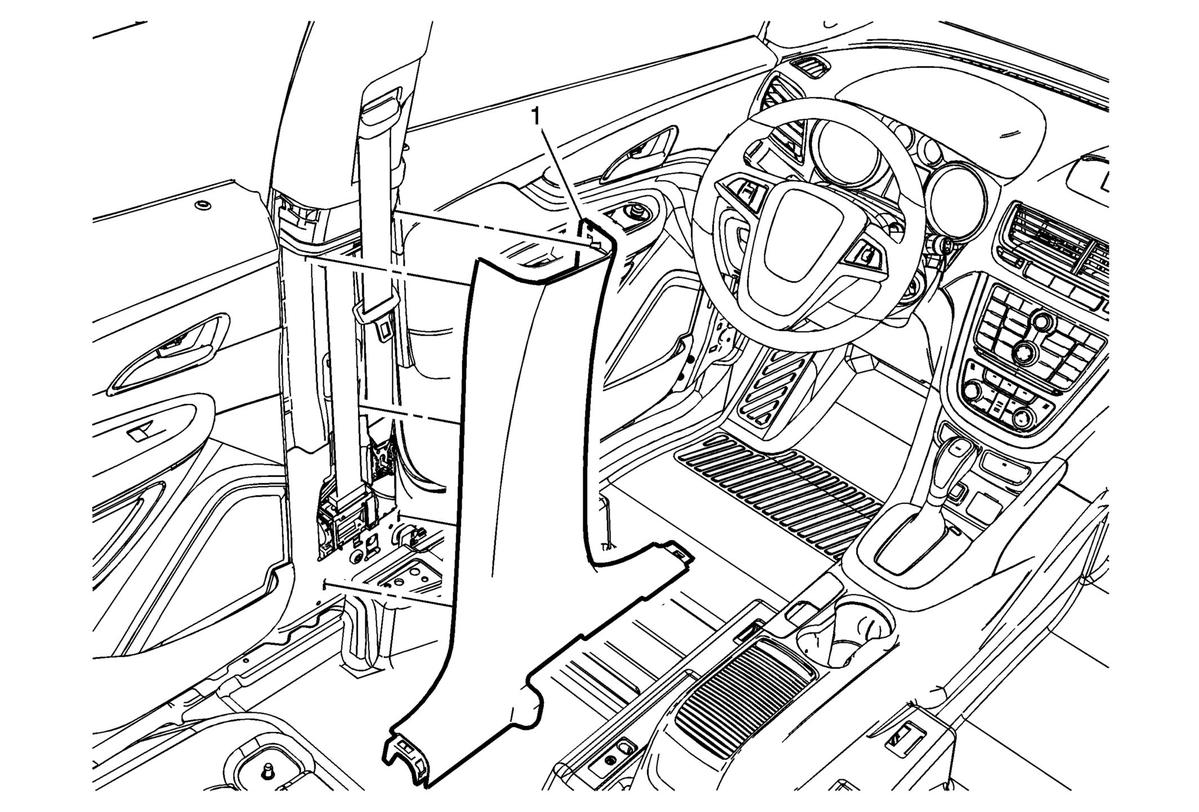

Fig 1: Center Pillar Lower Trim Panel (Encore)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the floor auxiliary mat lower retainer. Refer to Floor Auxiliary Mat Lower Retainer Replacement (Encore) . Remove the rear side door step mat retainer. Refer to Rear Side Door Step Mat Retainer Replacement . Move seat to full forward position.
1	Center Pillar Lower Trim Panel Assembly Procedure Ensure the seat belt webbing does not become trapped during installation.

Callout

Component Name

Preliminary Procedures

Remove the floor auxiliary mat lower retainer. Refer to Floor Auxiliary Mat Lower Retainer Replacement (Encore) .
Remove the rear side door step mat retainer. Refer to Rear Side Door Step Mat Retainer Replacement .
Move seat to full forward position.

Center Pillar Lower Trim Panel Assembly
Procedure
Ensure the seat belt webbing does not become trapped during installation.
