Rear Seat Belt Retractor Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

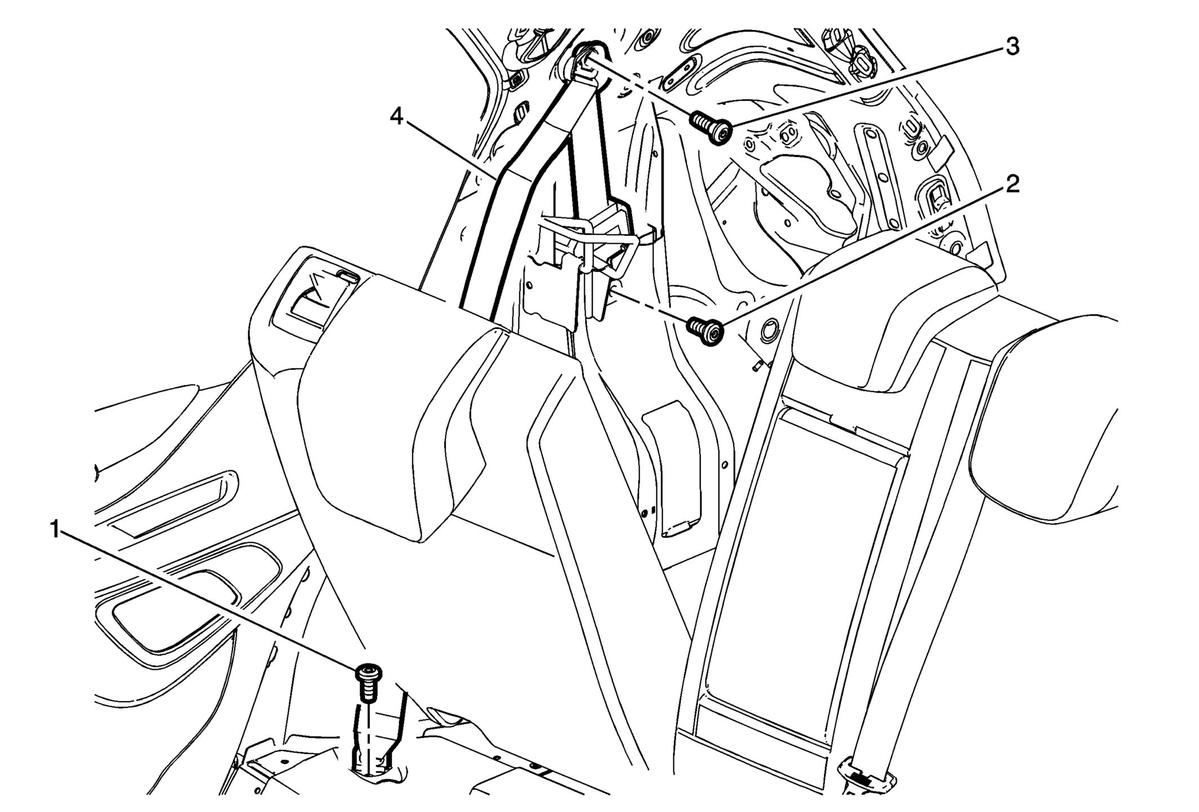

Fig 1: Rear Seat Belt Retractor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disable the SIR system. Refer to SIR Disabling and Enabling . Remove the rear seat cushion. Refer to Rear Seat Cushion Removal and Installation . Remove the quarter lower rear trim panel. Refer to Quarter Lower Rear Trim Panel Replacement .
1	Rear Seat Shoulder Belt Anchor Bolt CAUTION: Refer to Fastener Caution . Tighten 45 N.m (33 lb ft)
2	Rear Seat Shoulder Belt Retractor Bolt NOTE: When the seat belt retractor is replaced with a new one, there is no thread in the nut welded to the retractor. This is normal as the bolt will make the thread in the welded nut when the bolt is tightened. Tighten 45 N.m (33 lb ft)
3	Rear Seat Shoulder Belt Guide Adjuster Bolt Tighten 45 N.m (33 lb ft)
4	Rear Seat Shoulder Belt Retractor Assembly
