Installation Procedure
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

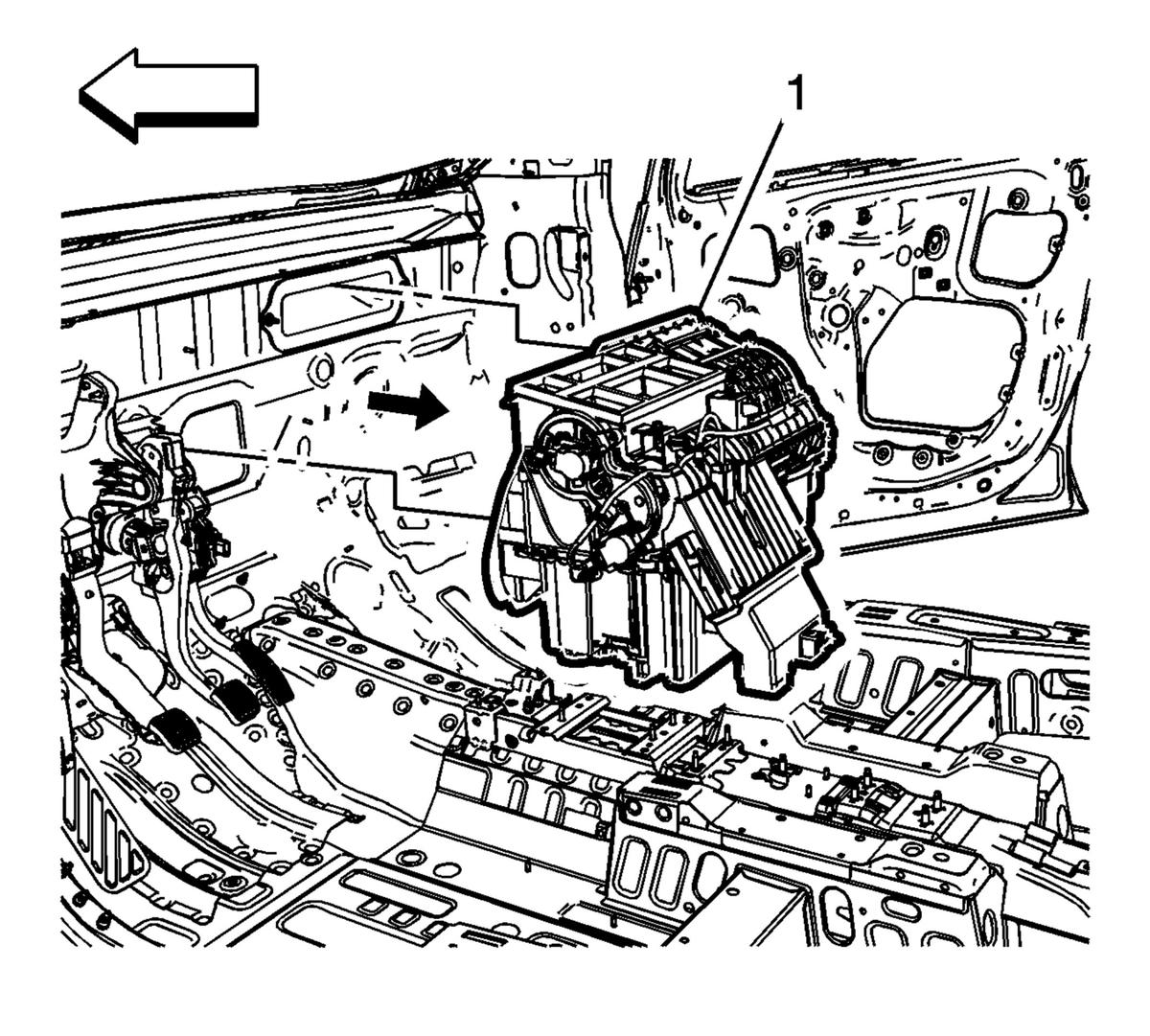

- Position the HVAC module assembly (1) into the vehicle and temporarily support it.
- From within the engine compartment, install the HVAC module assembly nut (1) securing the HVAC module assembly to the cowl panel, and tighten to 22 N.m (16 lb ft)
- Floor Rear Air Outlet Duct - Left Side to Heater and Air Conditioning Evaporator and Blower Module - Connect {If equipped} - Floor Rear Air Outlet Duct Replacement - Left Side
- Floor Rear Air Outlet Duct<p01> - Right Side to Heater and Air Conditioning Evaporator and Blower ModuleConnect {If equipped} - Floor Rear Air Outlet Duct Replacement - Right Side

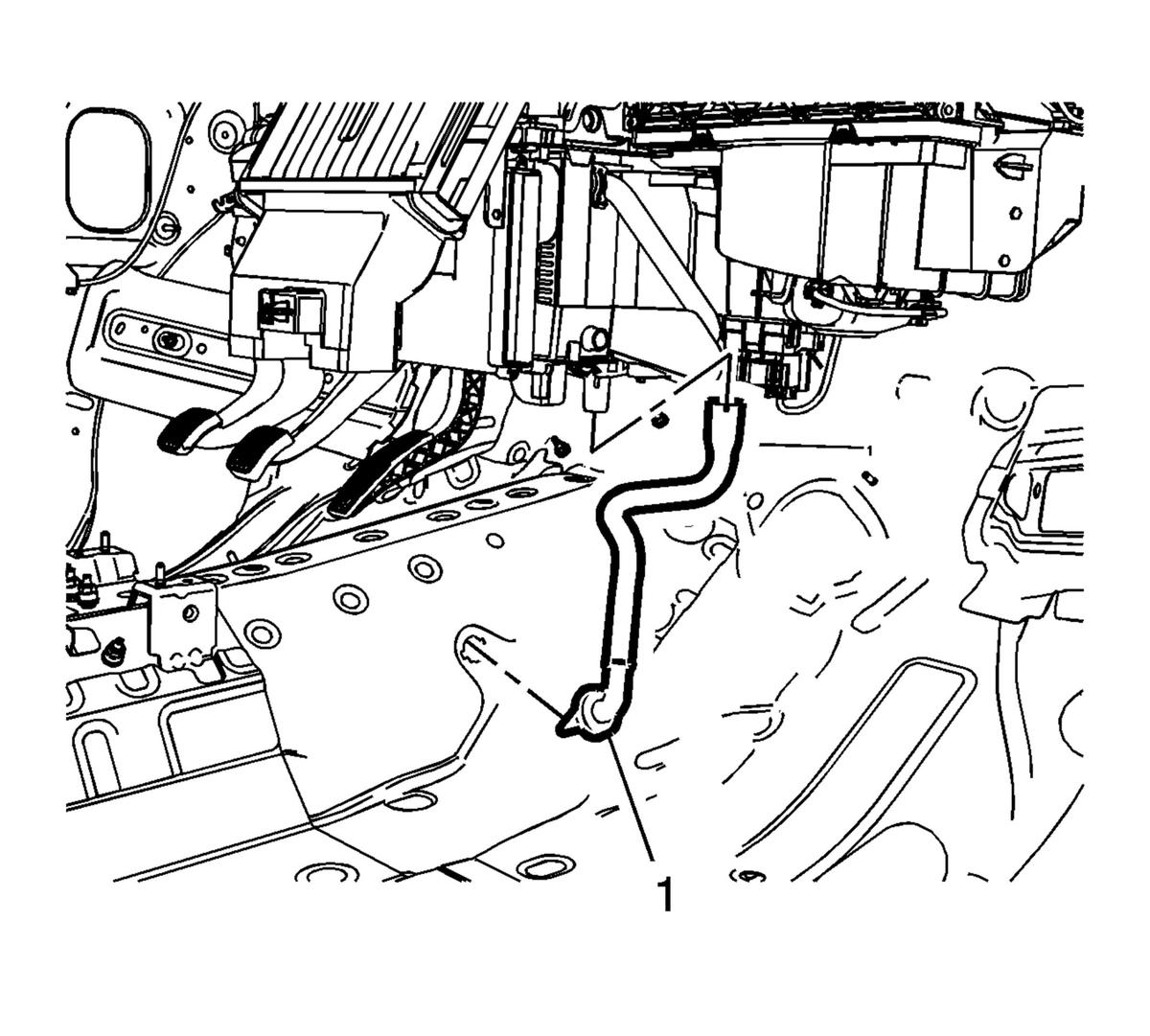

- Install the HVAC module assembly drain tube (1) to the HVAC module assembly.
- Instrument Panel Tie Bar Replacement Install

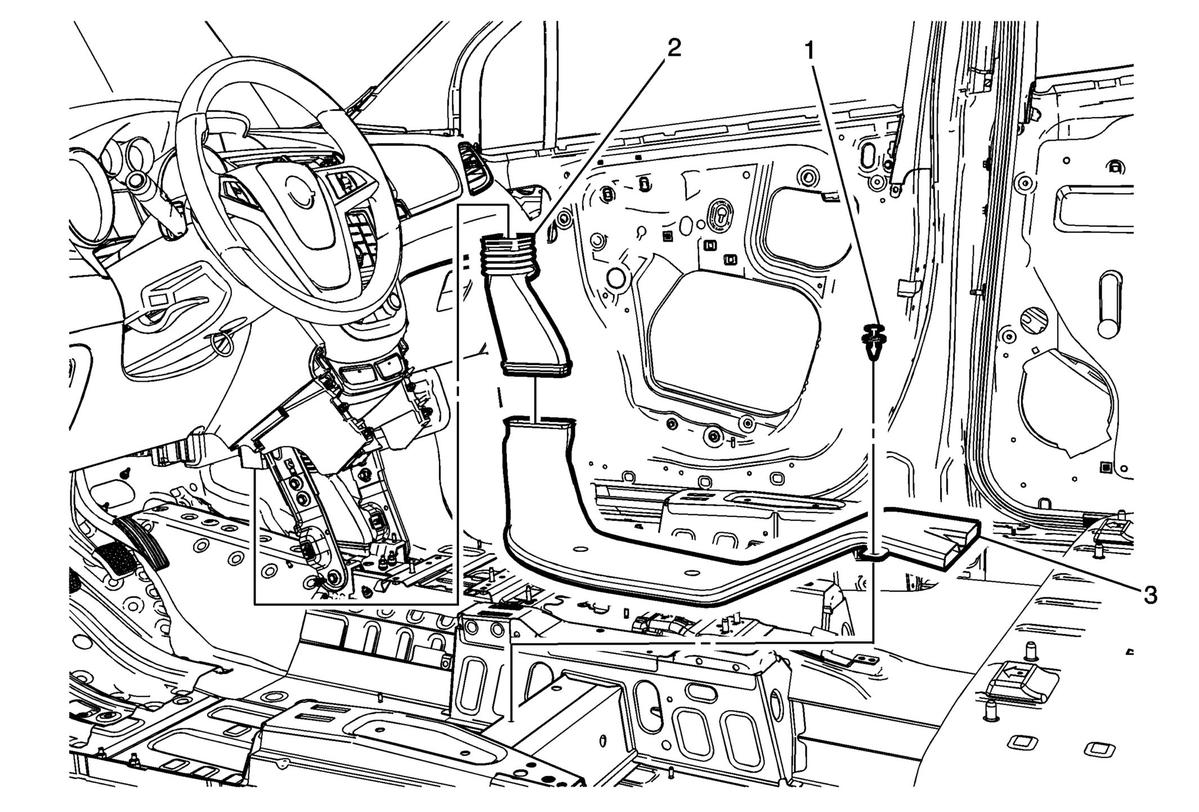

- Floor Front Air Outlet Duct Replacement - Left Side (Encore) Floor Front Air Outlet Duct Replacement - Left Side (Trax) Install

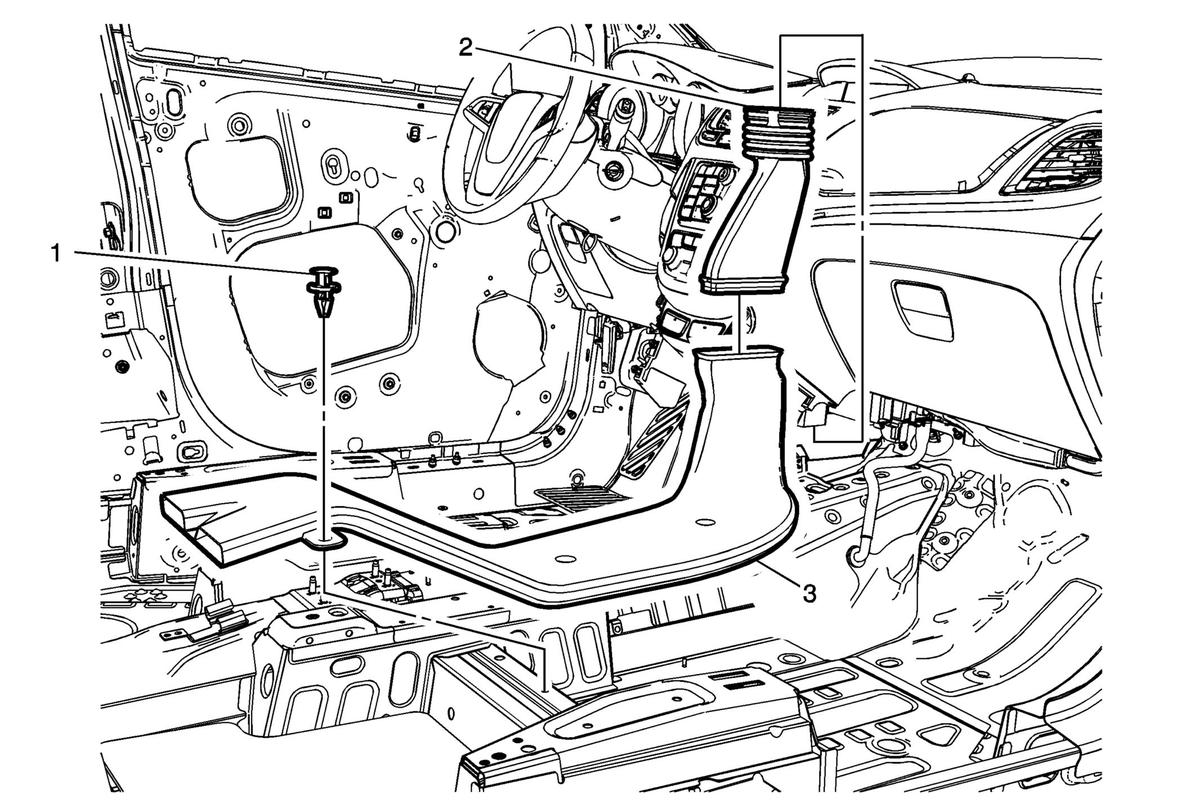

- Floor Front Air Outlet Duct Replacement - Right Side Install
- Air Conditioning Evaporator Hose Assembly to Air Conditioning Evaporator Thermal Expansion Valve Install - Air Conditioning Evaporator Hose Assembly Replacement (2H0) Air Conditioning Evaporator Hose Assembly Replacement (LUV) .
- Heater Outlet Hose to Heater Core Outlet Tube Install - Heater Outlet Hose Replacement (2H0) Heater Outlet Hose Replacement (LUV) Heater Outlet Hose Replacement (LUV Rear)
- Heater Inlet Hose to Heater Core Inlet Tube Install - Heater Inlet Hose Replacement (2H0) Heater Inlet Hose Replacement (LUV)
- Fill the cooling system. Cooling System Draining and Filling
- Evacuate and charge the refrigerant system. Refrigerant Recovery and Recharging (R-134a)
- Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
CAUTION:
Refer to Fastener Caution .
