Floor Front Air Outlet Duct Replacement - Right Side

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

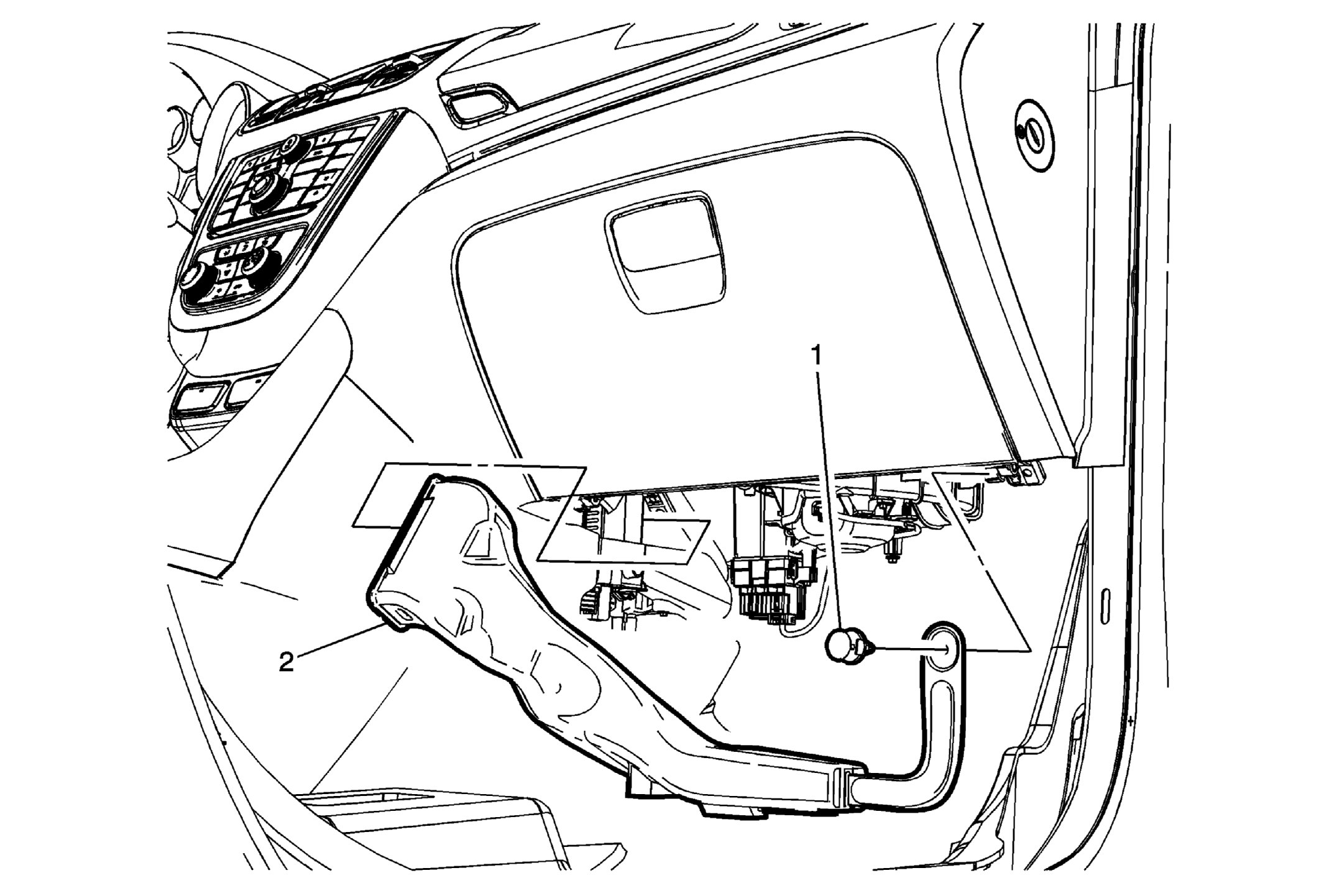

Fig 1: Floor Front Air Outlet Duct - Right Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the right side instrument panel lower trim panel insulator. Refer to Instrument Panel Lower Trim Panel Insulator Replacement . Remove the right side front floor console extension. Refer to Front Floor Console Extension Replacement - Right Side .
1	Floor Air Outlet Duct Fastener
2	Floor Air Outlet Duct - Right Side

Callout

Component Name

Preliminary Procedures

Remove the right side instrument panel lower trim panel insulator. Refer to Instrument Panel Lower Trim Panel Insulator Replacement .
Remove the right side front floor console extension. Refer to Front Floor Console Extension Replacement - Right Side .

Floor Air Outlet Duct Fastener

Floor Air Outlet Duct - Right Side
