Heater Inlet Hose Replacement (LUV)

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

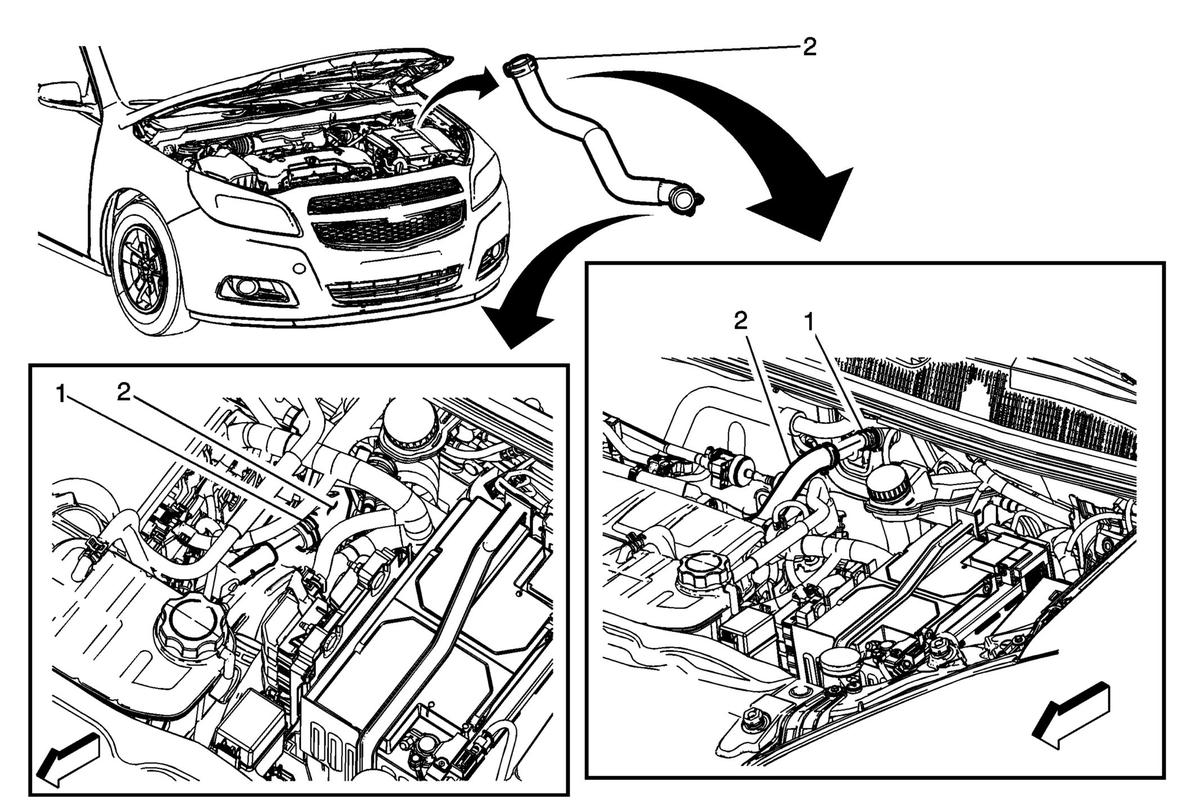

Fig 1: Heater Inlet Hose (LUV)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Drain the engine coolant system. Refer to Cooling System Draining and Filling . Remove the charge air cooler outlet air hose from the throttle body an reposition out of the way. Refer to Charge Air Cooler Outlet Air Hose Replacement .
1	Heater Inlet Hose Clamp (Qty: 2) Special Tools BO-38185 Hose Clamp Pliers For equivalent regional tools, refer to Special Tools .
2	Heater Inlet Hose Procedures Fill the engine coolant to the proper level. Refer to Cooling System Draining and Filling . Inspect the engine cooling system for leaks. Refer to Cooling System Leak Testing .

Callout

Component Name

Preliminary Procedures

Drain the engine coolant system. Refer to Cooling System Draining and Filling .
Remove the charge air cooler outlet air hose from the throttle body an reposition out of the way. Refer to Charge Air Cooler Outlet Air Hose Replacement .

Heater Inlet Hose Clamp (Qty: 2)
Special Tools
BO-38185 Hose Clamp Pliers
For equivalent regional tools, refer to Special Tools .

Heater Inlet Hose

Procedures

Fill the engine coolant to the proper level. Refer to Cooling System Draining and Filling .
Inspect the engine cooling system for leaks. Refer to Cooling System Leak Testing .
