Heater Outlet Hose Replacement (LUV)

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

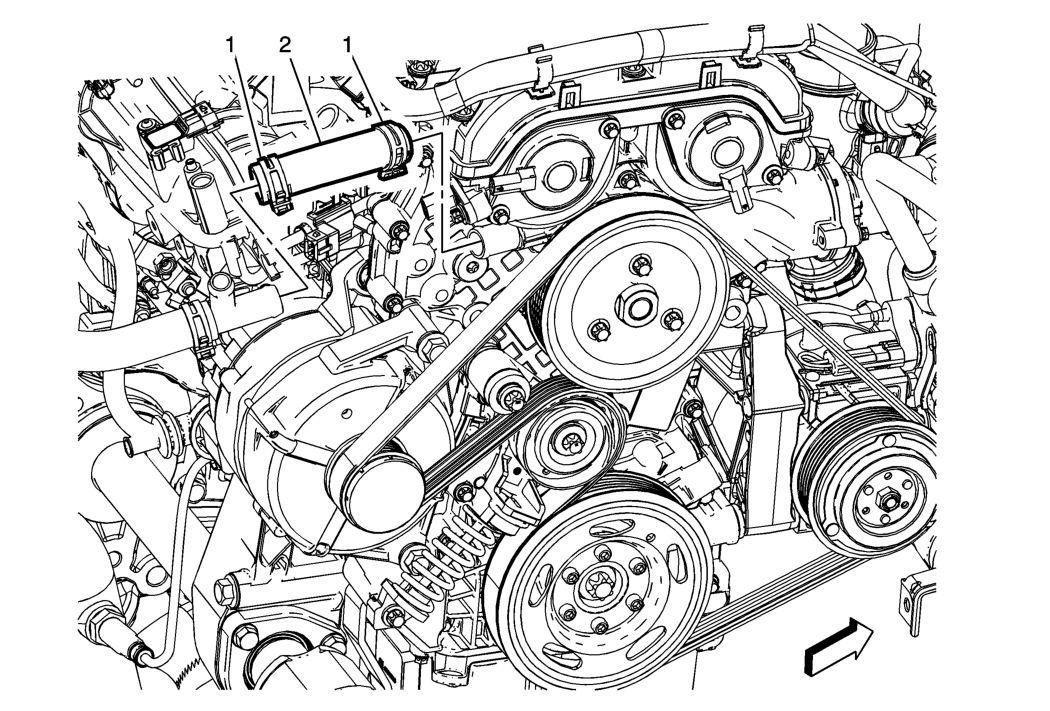

Fig 1: Heater Outlet Hose (LUV)
GM3409313Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Drain the cooling system. Refer to Cooling System Draining and Filling .
  2. Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
  3. Remove the air cleaner outlet duct assembly. Refer to Air Cleaner Outlet Duct Replacement .
  4. Remove the radiator surge tank outlet upper hose from the heater outlet hose tee. Refer to Radiator Surge Tank Outlet Hose Replacement (LUV) .
  5. Remove the heater outlet rear hose and tee from the heater outlet hose.
1 Heater Outlet Hose Clamp (Qty: 2)
Procedure
Using BO-38185  Hose Clamp Pliers , reposition the heater outlet hose clamps on the heater outlet hose.
Special Tools
BO-38185  Hose Clamp Pliers
For equivalent regional tools, refer to Special Tools .
2 Heater Outlet Hose

Procedure

  1. Fill the cooling system to the proper level. Refer to Cooling System Draining and Filling .
  2. Check the cooling system for leaks. Refer to Cooling System Leak Testing .
