Removal Procedure

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
  1. Recover the refrigerant. Refer to Refrigerant Recovery and Recharging (R-134a) .
  2. Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
  3. Disconnect the electrical connector from the air conditioning refrigerant pressure sensor.

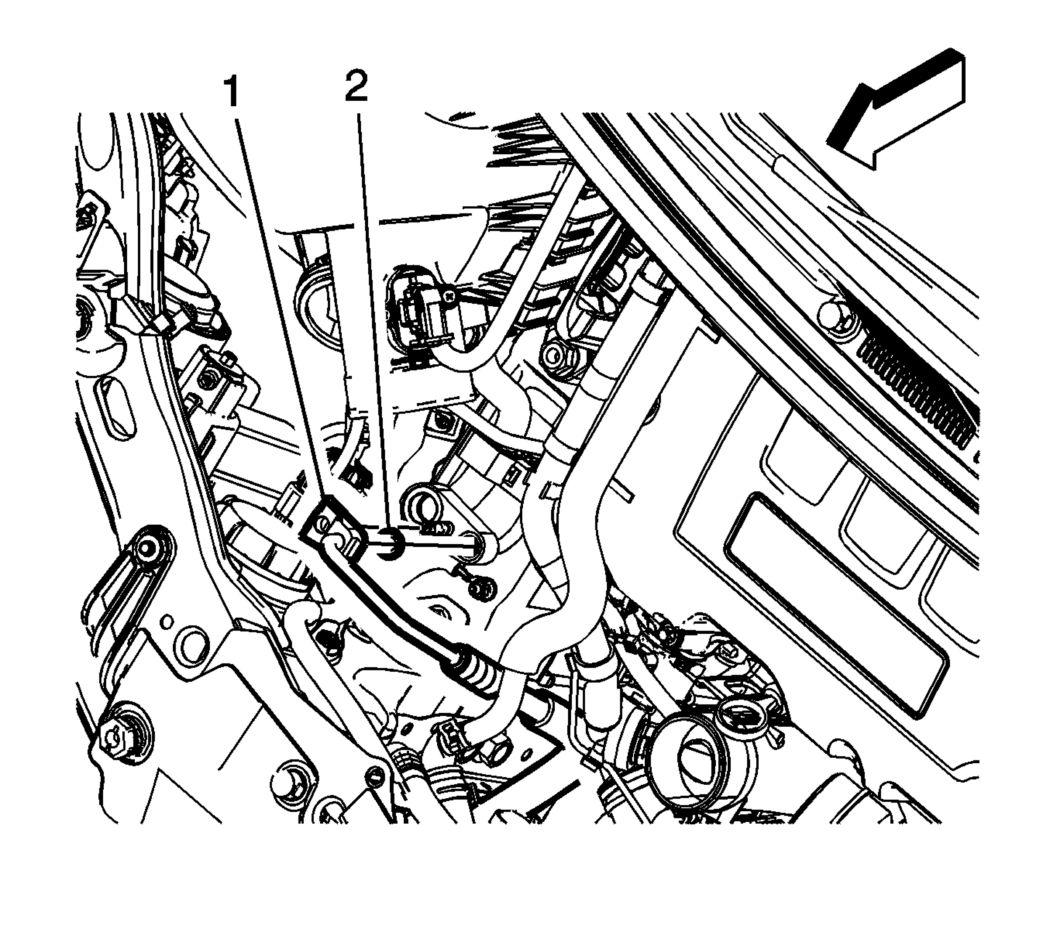

    4. Fig 1: Air Conditioning Compressor Hose Assembly
    GM2791561Courtesy of GENERAL MOTORS COMPANY
  4. Remove the air conditioning compressor hose assembly (1) from the air conditioning condenser hose at the evaporator hose assembly and position out of the way. Refer to Air Conditioning Compressor Hose Replacement (LUV) ,
  5. Remove and discard the old sealing washer (2) and replace with a NEW sealing washer.

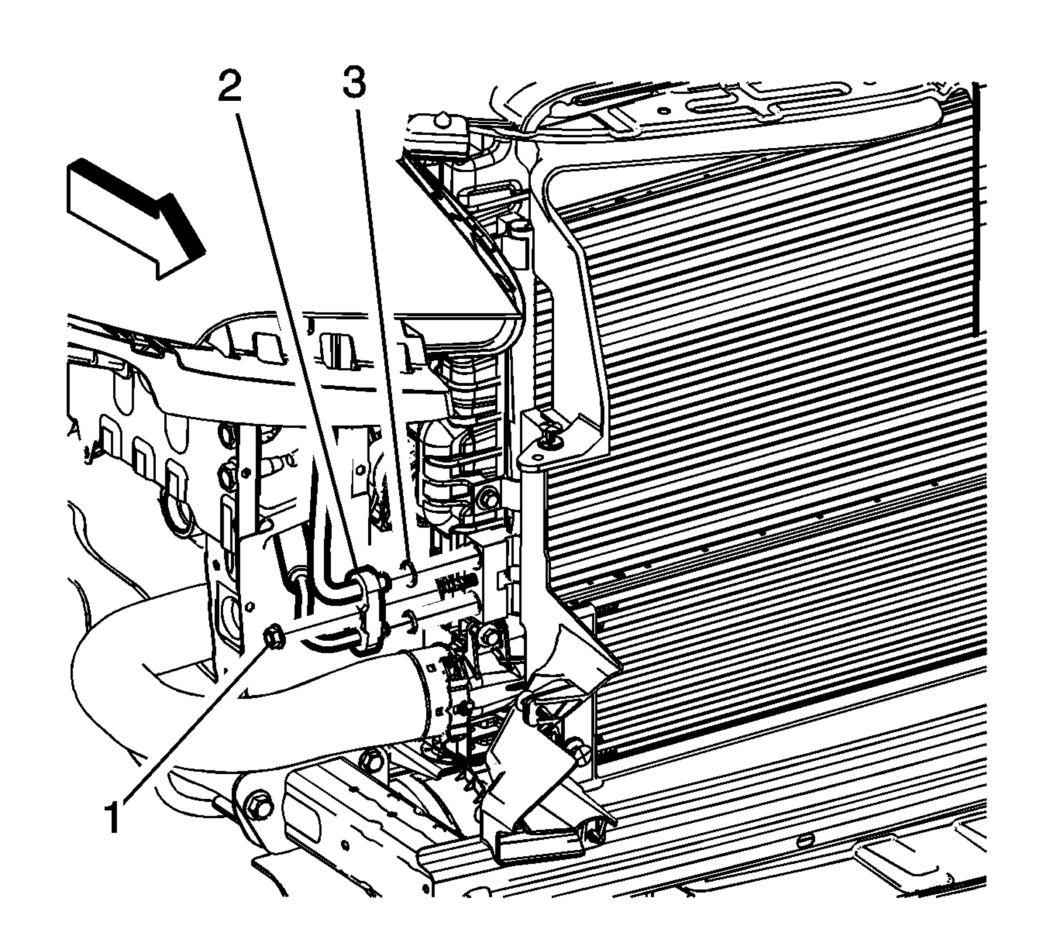

    6. Fig 2: Air Conditioning Condenser Hose Assembly
    GM2791563Courtesy of GENERAL MOTORS COMPANY
  6. Remove the front bumper fascia assembly. Refer to Front Bumper Fascia Replacement (Trax)Front Bumper Fascia Replacement (Encore) .
  7. Remove air conditioning condenser hose assembly nut (1) from the air conditioning condenser.
  8. Remove air conditioning condenser hose assembly (2) from air conditioning condenser.
  9. Remove and discard the old sealing washers (3) and replace with NEW sealing washers.

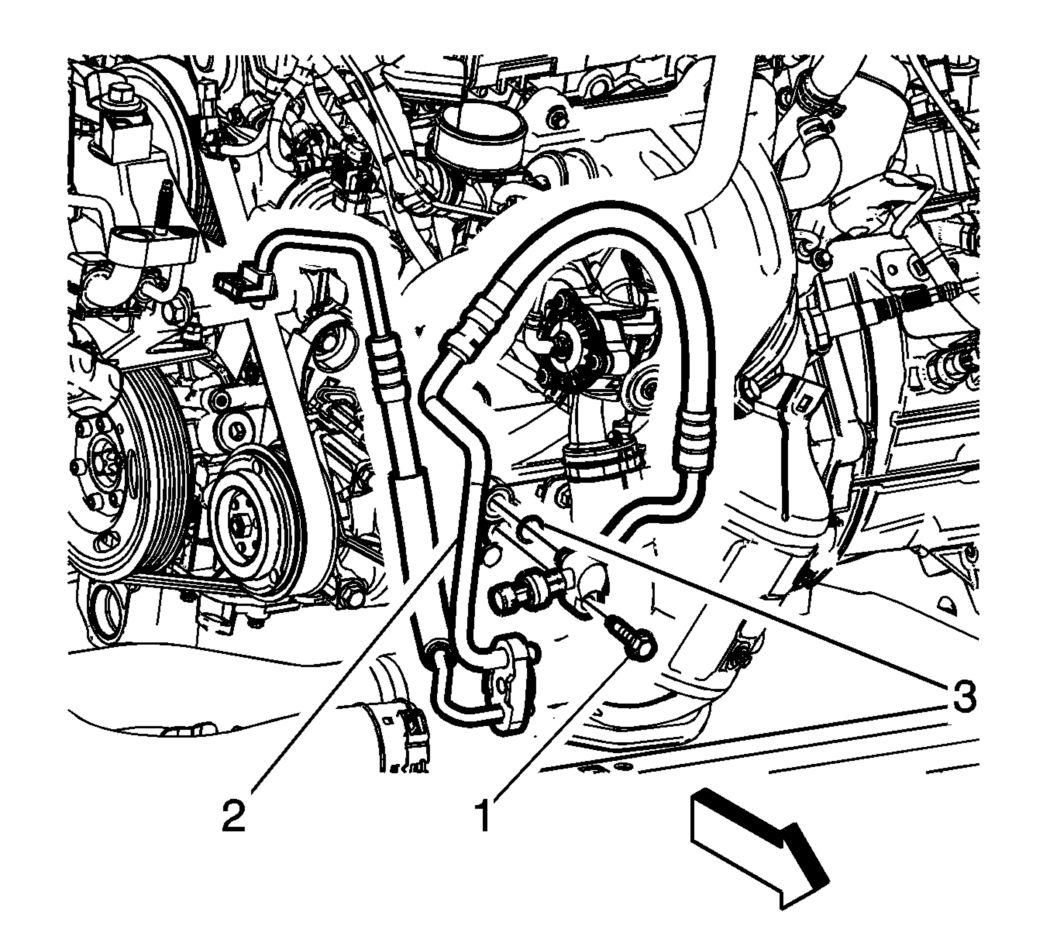

    10. Fig 3: Condenser Hose Assembly And Bolt
    GM2791562Courtesy of GENERAL MOTORS COMPANY
  10. Remove air conditioning condenser hose assembly bolt (1) from the air conditioning compressor assembly.
  11. Remove air conditioning condenser hose assembly (2) from air conditioning compressor assembly.
  12. Remove and discard the old sealing washers (3) and replace with a NEW sealing washers.

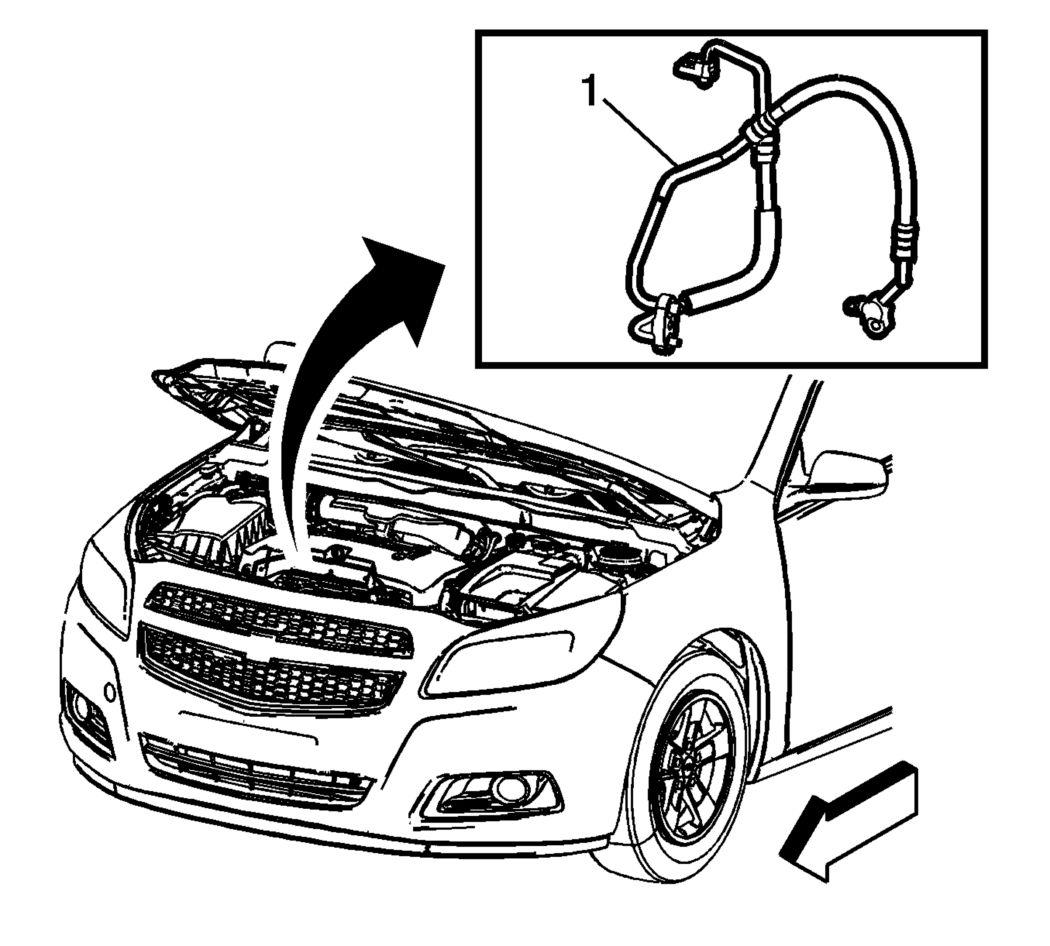

    13. Fig 4: Condenser Hose Assembly
    GM2887647Courtesy of GENERAL MOTORS COMPANY
  13. Remove air conditioning condenser hose assembly (1) from the vehicle.
    14. NOTE:

    Remove and discard the old air conditioning sealing washers and replace with a NEW sealing washers.

  14. Transfer all required parts
